Installation and Commissioning Guide
Split Tri-Capacity
19
Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330

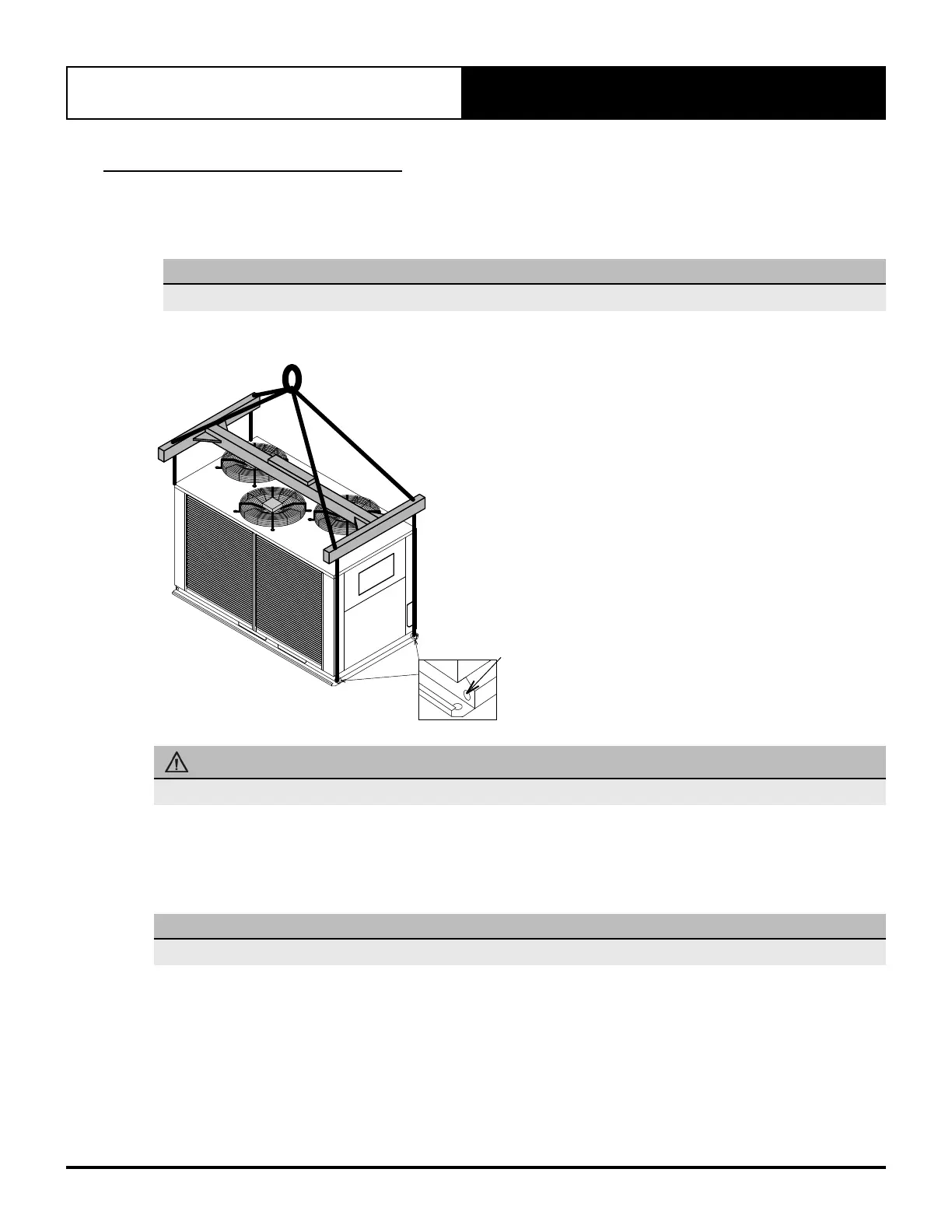

09. UNIT LIFTING PROCEDURE
09.01. Crane Lifting Method
NOTE
Crane lifting is recommended over fork lift method.
LIFTING POINT IS LOCATED AT EACH CORNER OF
THE UNIT 4 TOTAL. SIZE: Ø25.4MM
LIFTING POINT
CAUTION
WH&S regulations must be observed and will take precedent during lifting process.
Equipment required for crane lifting:
• 4 x shackles
• 2 x nylon slings
• Spreader bar
NOTE
Refer to catalogue for unit weight before selecting shackles.
Procedure:
1. Remove all screws and washers that secure the unit to the timber pallet.
2. Use 4 x Bow or Dee shackles to connect the lifting holes.
3. Slip nylon slings through all shackles.
4. Ensure slings are protected by rubber pads or similar, if slings are draped across unit edges and corners. This will
prevent the unit from being damaged during lifting.
5. SPREADER BAR must be used when lifting the unit.
