Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330
Installation and Commissioning Guide
Split Tri-Capacity

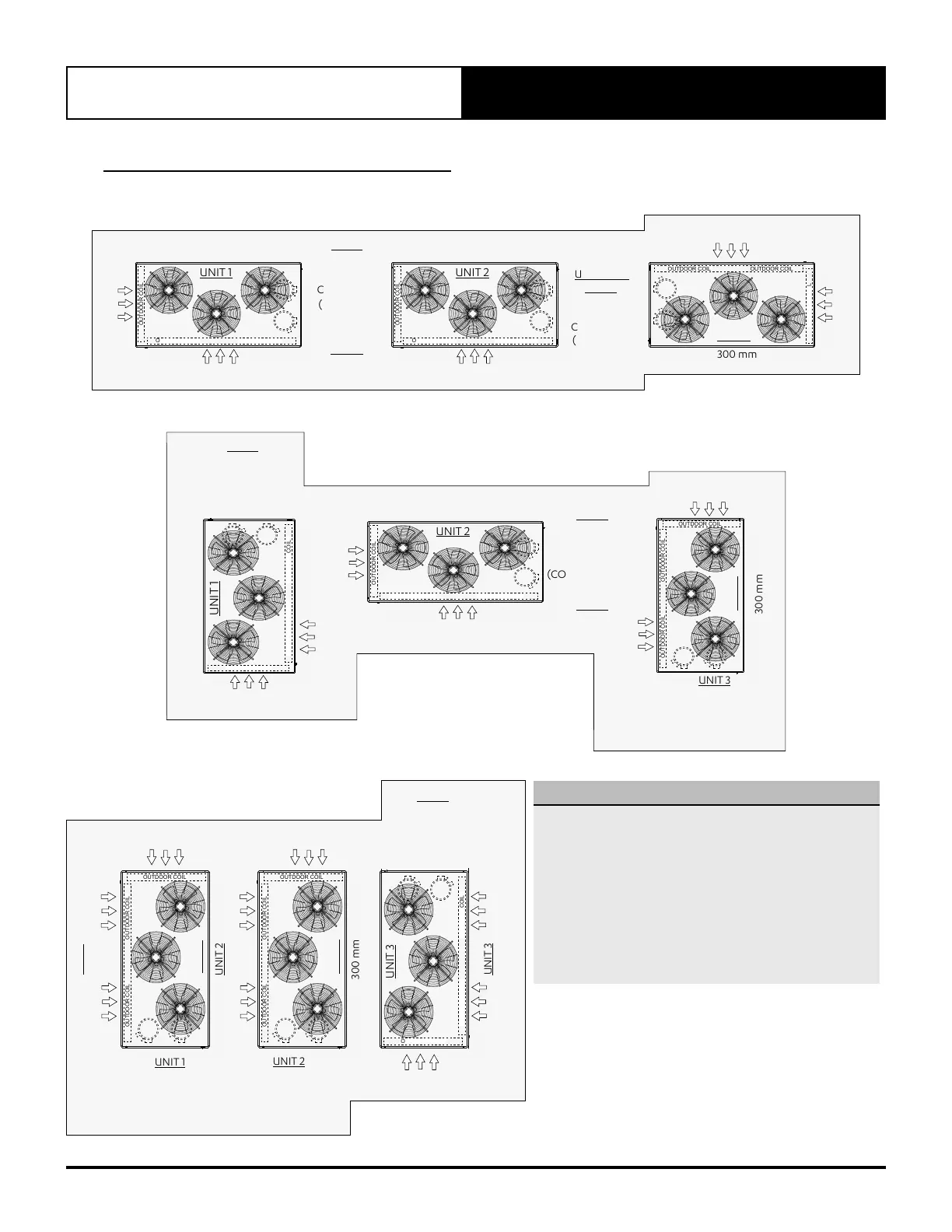

11. BANKING OF OUTDOOR UNITS
11.01. End-To-End Configuration
HEIGHT CLEARANCE FOR ALL THE UNITS = 1500mm
300 mm
SPACE CLEARANCE
300 mm
SPACE CLEARANCE
300 mm
SPACE CLEARANCE
UNIT 1
1000 mm
SERVICE
CLEARANCE
(COMP. and
ELEC.)
+
UNIT 2
AIRFLOW
ALLOWANCE
UNIT 2 and
UNIT 3
1000 mm
SERVICE
CLEARANCE
(COMP. and
ELEC.)
500 mm
AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
UNIT 1
OUTDOOR COIL OUTDOOR COIL
OUTDOOR COIL
UNIT 2
OUTDOOR COIL OUTDOOR COIL
OUTDOOR COIL
UNIT 3
OUTDOOR COILOUTDOOR COIL
OUTDOOR COIL
11.02. Cluster Configuration
HEIGHT CLEARANCE FOR ALL THE UNITS = 1500mm
300 mm
SPACE CLEARANCE
300 mm
SPACE CLEARANCE
UNIT 2
1000 mm
SERVICE
CLEARANCE
(COMP. and ELEC.)
+
UNIT 3
AIRFLOW
ALLOWANCE
UNIT 1
1000 mm
SERVICE
CLEARANCE
(COMP. and ELECT.)
500 mm
AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
300 mm
SPACE CLEARANCE
UNIT 3
1000 mm
SERVICE
CLEARANCE
(COMP. and ELECT.)
500 mm
AIRFLOW ALLOWANCE
UNIT 1
OUTDOOR COIL OUTDOOR COIL
OUTDOOR COIL
UNIT 2
OUTDOOR COIL OUTDOOR COIL
OUTDOOR COIL
UNIT 3
OUTDOOR COILOUTDOOR COIL
OUTDOOR COIL
11.03. Side-By-Side Configuration
NOTES
• The suggested Clearance and Airflow Allowances
(given above) are the minimum and based on the
condition that the spaces around the units are
free from any obstructions and walkway passage of
1000mm between the units or between the unit
and the outside perimeter is available.
• Minimum service access areas and spaces
for airflow are responsibilities of the installer,
ActronAir will not be held responsible for any extra
charges incurred due to lack of access and space
for airflow.
UNIT 3
1000 mm
SERVICE
CLEARANCE
(COMP. and ELECT.)
UNIT 2
1000 mm
SERVICE
CLEARANCE
(COMP. and ELECT.)
UNIT 1
1000 mm
SERVICE
CLEARANCE
(COMP. and ELECT.)
300 mm
SPACE CLEARANCE
UNIT 2
500 mm AIRFLOW ALLOWANCE
UNIT 1
500 mm AIRFLOW ALLOWANCE
UNIT 3
500 mm AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
500 mm
AIRFLOW ALLOWANCE
UNIT 3
OUTDOOR COIL OUTDOOR COIL
OUTDOOR COIL
UNIT 1
OUTDOOR COILOUTDOOR COIL
OUTDOOR COIL
UNIT 2
OUTDOOR COILOUTDOOR COIL
OUTDOOR COIL
