Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330
Installation and Commissioning Guide
Split Tri-Capacity

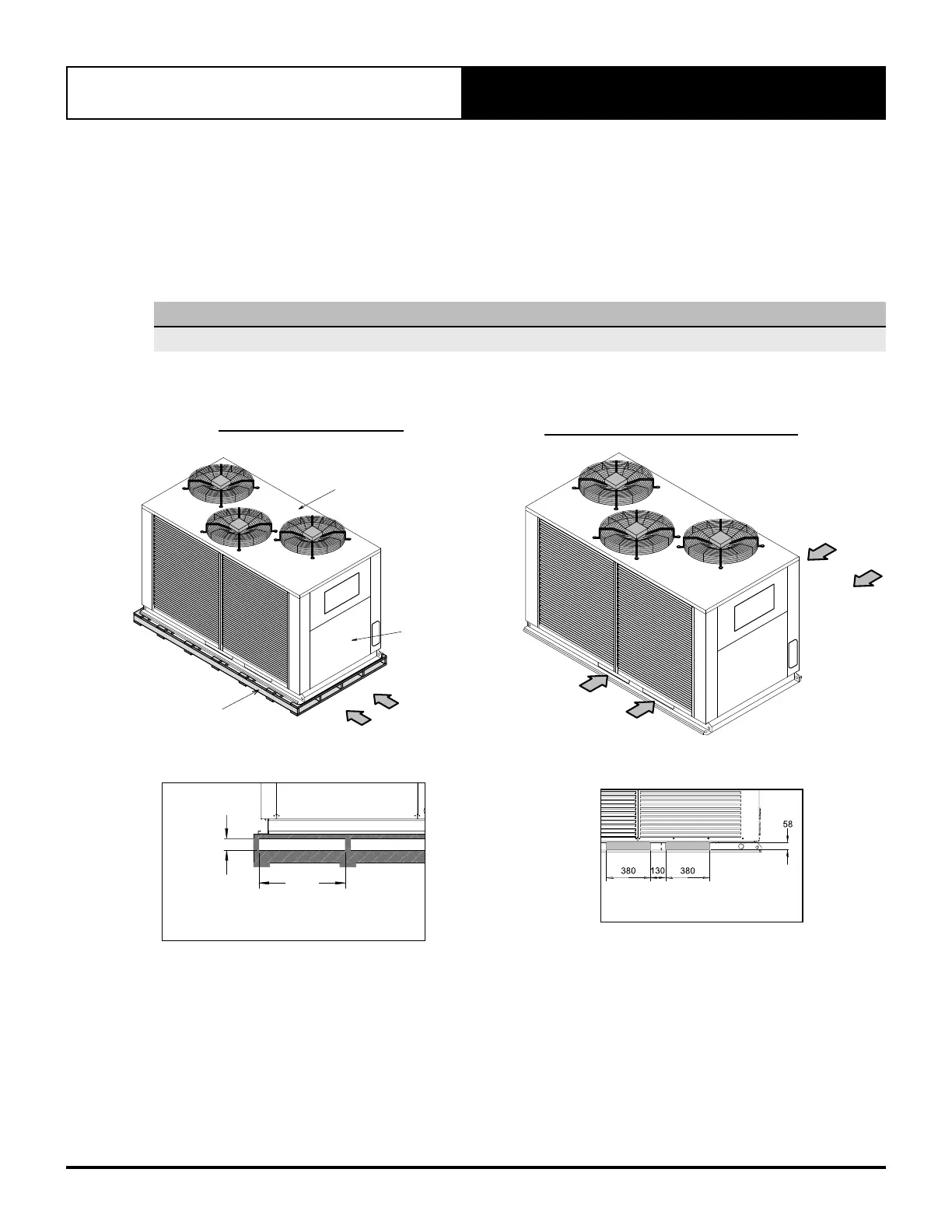

09.02. Fork Lift Method
Procedure:
1. To move the unit around with the pallet, it is required to insert the fork through the pallet (not the unit
feet).
2. Only fork the unit through compressor end (see illustration for location of compressor end).
NOTE
Ensure that the screws and washers are only removed when it is required to disassemble the unit from the pallet.
COMPRESSOR
END
PALLET
OUTDOOR
UNIT
INSERT FORK LIFT
TINES HERE
(COMPRESSOR END)
INSERT FORK LIFT
TINES HERE
(COMPRESSOR END)
70
556
PALLET HOLE DIMENSIONS
LIFTING THROUGH PALLET
261
90
ALL DIMENSIONS IN MM.
OR THIS
SIDE
LIFTING THE UNIT FROM THE PALLET
UNIT HOLE DIMENSIONS
