ActronAir ELY620T - 0-10 Analogue Output Compressor and 24 VAC Relay Output Indoor Fans

Installation and Commissioning Guide
Split Tri-Capacity
67
Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330
26.02. 0-10 Analogue Output Compressor and 24VAC Relay Output Indoor Fans
R
This drawing remains the intellectual property of Actron Engineering Pty Ltd. Reproduction, modification and/or distribution are prohibited without written consent.
Revision
0515-8803-2
A4
Size:
TRI-CAPACITY
Description:
Base Model No:
Variation Code:
0-10V COMP & 24VAC IN-FAN
Variations:
B
Drawing No:
Drawn:
Date:
03-09-2014 22-03-2021
MH
JL
Approved:
Date:
Rev.
B
Description
0-10V STAGE CONTROL CHANGED
Date
22-03-2021
By RL
PCR
PRJ378
ORIGINAL
A

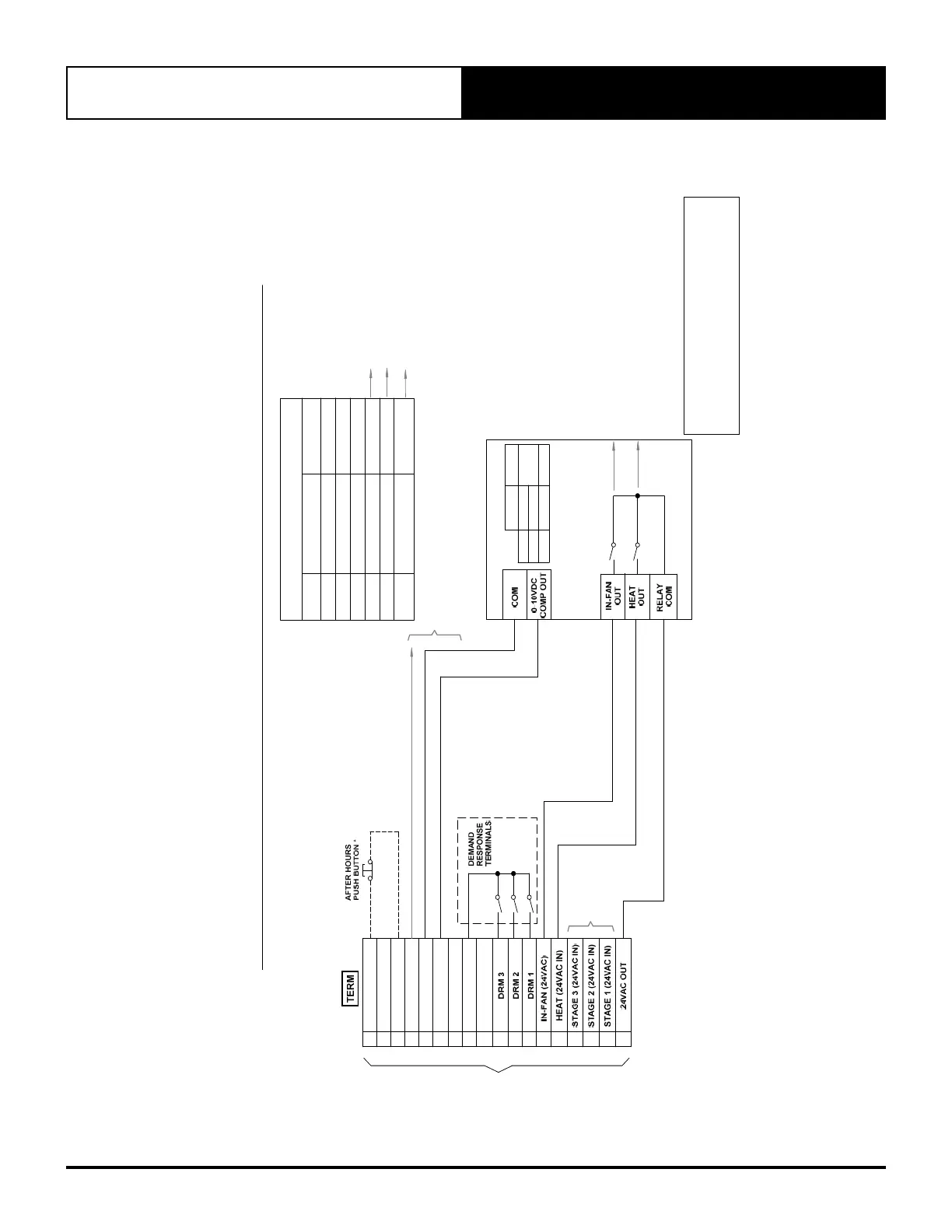

CM100 TRI-CAPACITY CONTROL SYSTEM WIRING DIAGRAM 3RD PARTY CONTROL INTERFACE CONNECTIONS
1
REMOTE ON/OFF
N/A
COMMON (GND) COMMON (GND)
RTN AIR SENSOR (GND)
MULTI INPUT 1 MULTI INPUT 2
AFTER HOURS
10
7 6 8 9
5 4 3 2
14 16 13 15 12 11
RTN AIR SENSOR
17
18
* IMPULSE PUSH BUTTON N/C
CONNECTION SHOWN
* 5 SEC CONTACT BREAK REQUIRED
FOR AFTER HOURS ACTIVATION
3RD PARTY CONTROL
THERMOSTAT
24VAC INPUT FOR REVERSING VALVE (HEAT) OPERATION STAGE CONTROL FOR HEAT DONE VIA COMP STAGE INPUTS
DRM1
DRM2
DRM3
DR COM
THESE TERMINALS USED FOR DEMAND MANAGEMENT VOTAGE FREE RELAY REQUIRED DRM1 = COMPRESSORS OFF (0%) DRM2 = COMPRESSOR 1 ONLY (<50% INPUT POWER) DRM3 = COMPRESSOR 2 ONLY (<75% INPUT POWER)
SEE MULTI INPUT SELECTION TABLE FOR OPTIONS & SEE INSTALLATION MANUAL FOR CONNECTION / SETUP DETAILS (NOTE: SET MULTI INPUT 1 TO "D" - 0-10V COMP CONTROL ONLY 1 OF 4 REMAINING OPTIONS CAN BE SELECTED FOR MULTI INPUT 2 *)
ACTRONAIR
UNIT WIRING
3RD PARTY CONTROL INPUT TERMINALS
( 0-10V ANALOGUE COMP / RELAY OUT HEAT & INDOOR FAN
CONTROLLER REQUIRED )
TRI-CAPACITY CM100 COMMERCIAL CONTROLS
3RD PARTY THERMOSTAT CONTROLLER CONNECTION
0-10V ANALOGUE OUTPUT FOR COMPRESSOR & 24VAC RELAY OUTPUT FOR INDOOR FAN
THESE TERMINALS USED FOR 0-10V STAGE CONTROL ONLY BOTH 0-10V & COM (GROUND) MUST BE CONNECTED USE EITHER 0-10V STAGE CONTROL OR 24VAC STAGE CONTROL - DO NOT USE BOTH INDOOR FAN WILL RUN WHEN COMP INPUT IS ACTIVE (AUTO MODE - SET CP05/10 CONTROL INTERFACE TO "UNIT ON" & INDOOR FAN SETTING TO AUTO)
MULTI INPUT
MATRIX
DESCRIPTION
STAGE ON
D COMP STAGE CONTROL
IN-FAN SPEED CONTROL
C
STAGE 3
NIGHT MODE
Vin ≥ 9V
B
STAGE 2
ECONOMY MODE
5V ≤ Vin < 9V
A
STAGE 1
SUPPLY AIR TEMP
3V ≤ Vin < 5V
E
TYPE
STAGE OFF
0-10V ANALOGUE
DIGITAL INPUT
Vin ≤ 6V
DIGITAL INPUT
Vin ≤ 1V
SENSOR
0-10V ANALOGUE
MULTI INPUT SELECTION TABLE
"W"
OPTION
3P PROTECTION RELAY
OPTION - MULTI INPUT 2
DIGITAL INPUT
* FACTORY WIRED OPTION TO MULTI INPUT 2 WHEN "W" OPTION INSTALLED - NO ADDITIONAL MULTI INPUT AVAILABLE
0-10V COMP STAGE CONTROL
DO NOT USE WHEN 24VAC IN-FAN INPUT TERMINALS ARE CONNECTED
DO NOT USE
24VAC INPUT FOR INDOOR FAN - FOR CONTINUOUS INDOOR FAN OPERATON USE THIS INPUT (IE: INDOOR FAN REMAINS ON WHEN COMP CYCLED OFF) SET CP05/10 CONTROL INTERFACE TO "UNIT OFF" & INDOOR FAN SETTING TO CONTINUOUS
CONFIGURATION PROCEDURE Compressor: Refer to Procedure 18.03 Fan: Refer to Procedure 18.02
GND
