ActronAir ELY620T - Maximum Cable Lengths

Installation and Commissioning Guide
Split Tri-Capacity
37
Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330

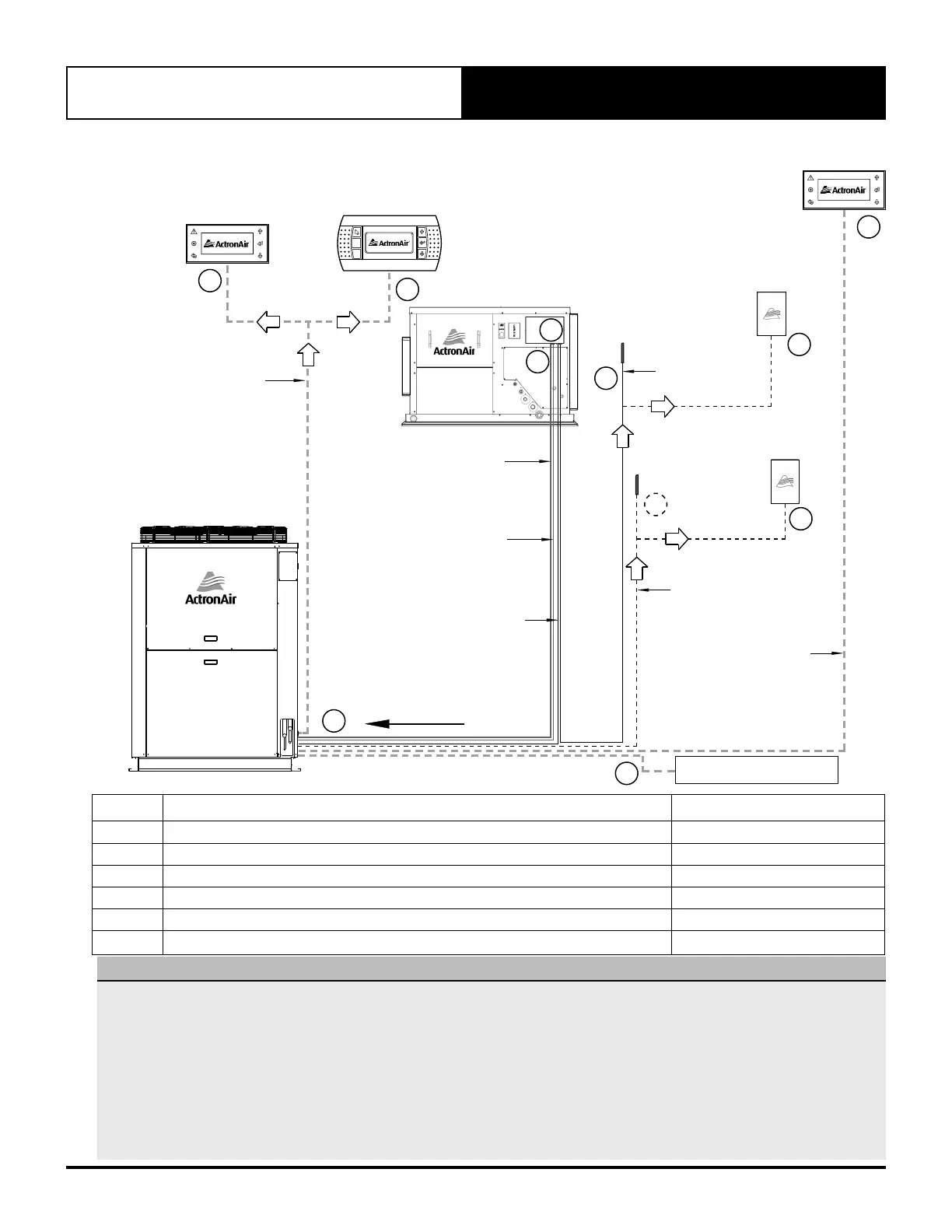

15.02. Maximum Cable Lengths
Cable Run
Description Suggested Maximum Cable Length
1 to 2 Outdoor CM100 to Optional ActronAir CP05 / CP10 Control Interface (Dual Control) 50m / 200m***
1 to 3 Outdoor CM100 to Indoor CIB Data Input Terminal 75m
1 to 4 Outdoor Power Supply to Indoor CIB / Indoor Fan 75m
1 to 5 Outdoor CM100 to Room Air Sensor (NTC Sensor Input Cable Size 0.5mm
2
/ 1.0mm
2
) 50m / 100m
1 to 6 Outdoor CM100 to ActronAir CP05 (Remotely re-located factory Supplied Control Interface) 50m / 200m***
1 to 7 Outdoor CM100 to Third Party Control Refer to Third Party Control Supplier
NOTES
• Diagram shown above is for general representation only. Refer to individual unit wiring diagram for complete wiring
connection details.
• Long cable runs beside supply mains or TV antenna cables should be avoided where possible.
• Room Air Sensor needs to be installed by the installer specific to site requirements.
• For compliance with EMC requirements, connect screen wire to Terminal 22 in the Electrical Panel.
* Room Air Sensor is factory supplied with 6m cable as standard. Sensor may need adjustment for longer cable lengths.
** Do not extend the factory supplied data cable when re-locating the Control Interface. Replace the cable with a single length
of either of the data cables specified above.
*** Suggested Maximum Cable Length: 50m when using Flat Telephone Cable / 200m when using 6 Core (3Pair) Twisted Pair
Shielded Data Cable.
TO
OUTDOOR
(OPTIONAL REMOTE RE-LOCATION)
FACTORY SUPPLIED
CONTROL INTERFACE
**
ActronAir CP05
ROOM
AIR SENSOR
*
1
6
5
5
5
5
INDOOR UNIT
3
4
THIRD PARTY CONTROL
INPUT TERMINALS
7
415V / 3Ph / 50Hz Supply
Suggested Min. Cable Size = 1.5mm
2
.
Must comply with AS/NZS 3000 Wiring Rules.
(Installer to Provide)
230V / 1Ph+N / 50Hz Supply
Suggested Min. Cable Size = 1.0mm
2
.
Must comply with AS/NZS 3000 Wiring Rules.
(Installer to Provide)
2 Core 7/0.30 Shielded Twisted Pair
Data Cable
(Installer to Provide)
6 Core (3 Pair) Twisted Pair
7/0.20 (AWG24) Shielded Data Cable
(Installer to Provide)
or
6 Core Flat 7/0.12 (AWG28)
Telephone Cable
(Installer to Provide)
NTC Sensor Cable
(Factory Supplied)
NTC Sensor
(Factory Supplied)
Optional OD Connection
- or -
- or -
ActronAir LM-RS-2
ROOM AIR SENSOR
(Optional)
ActronAir LM-RS-2
ROOM AIR SENSOR
(Optional)
6 Core (3 Pair) Twisted Pair
7/0.20 (AWG24) Shielded Data Cable
(Installer to Provide)
or
6 Core Flat
7/0.12 (AWG28) Telephone Cable
(Installer to Provide)
ActronAir 2060-037
ROOM AIR SENSOR
*
(Factory Supplied)
OUTDOOR UNIT
(OPTIONAL DUAL CONTROL) CONTROL INTERFACE
ActronAir CP05 / CP10 (Purchased Separately)
CP05 - or - CP10
2
2
Esc
Prg
