14.02. Example Total Equivalent Field Pipe Length Calculations
Equivalent Length = total horizontal length + total of vertical length
+ total losses from elbows (x3)

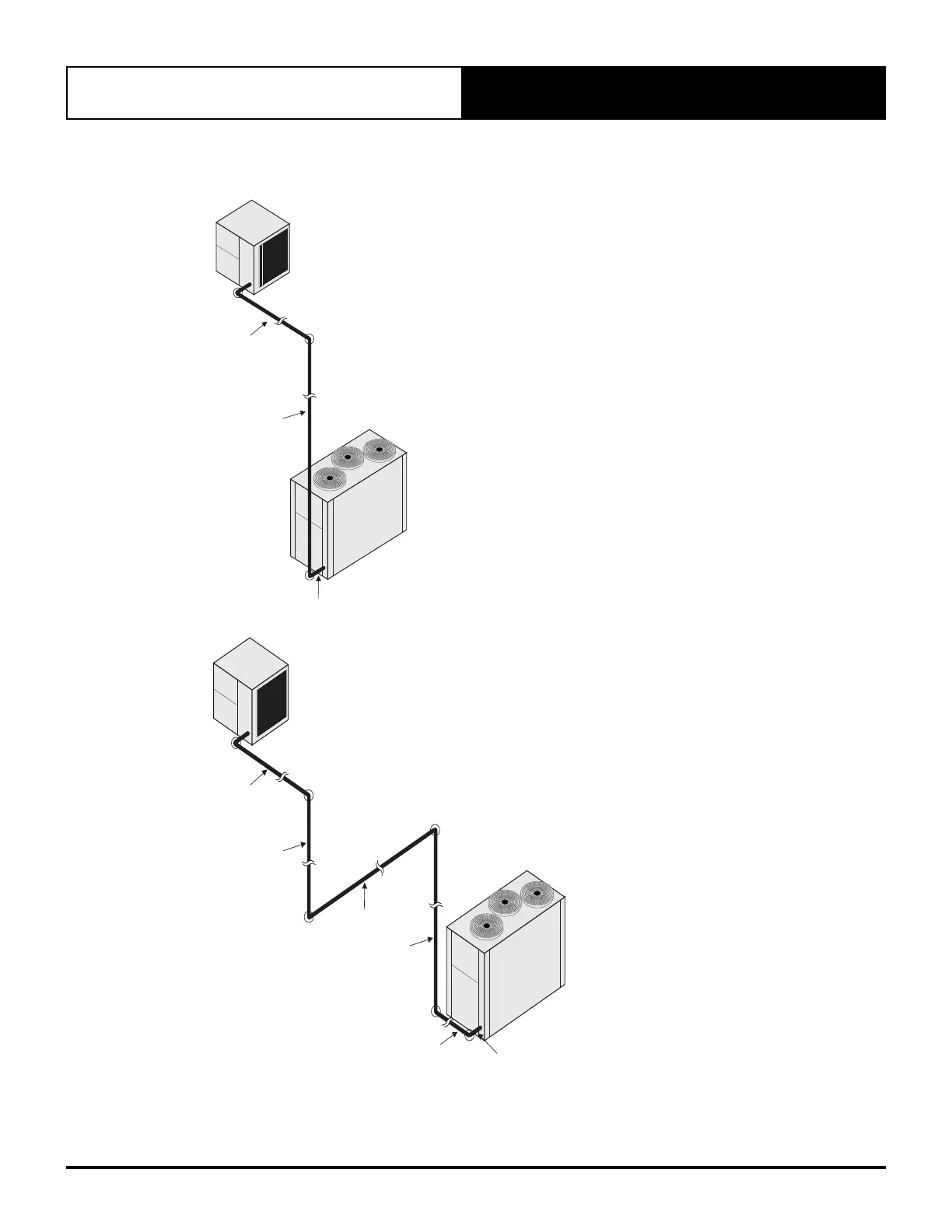

EXAMPLE 1:
E
E
E
H 1
V
H
2
H
V
= horizontal length
= vertical length
= elbowE
Equivalent Length = total horizontal length + total of vertical length
+ total losses from elbows (x6)
EXAMPLE 2:
E
E
E
E
E
E
H 1
V 1
V 2
H 2
H 3
H 3
H
V
= horizontal length
= vertical length
= elbowE
Above illustrations are shown as calculation examples only. It is the responsibility of the Installer to design an efficient refrigeration
piping lay out for optimum unit performance.
