ActronAir ELY620T - Room Air Temperature Sensor Installation; Room Air Temperature Sensor Wired to Indoor Unit; Room Air Temperature Sensor Wired to Outdoor Unit

Installation and Commissioning Guide
Split Tri-Capacity
61
Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330
21.01.05. Maximum Outside Air Temp.: (Configurable in Gfd3 screen)
To use this option, set Outside Air Max Limit Temperature to Yes. If the T
Outside Air
> Outside Air Max Limit
Temperature, the economy cycle will stop, and the damper will remain open with maximum opening value set
by Min Outside pos.
Settings: Min = 0.0
O
C, Max = 25.0
O
C, Default = 16.0
O
C
Economy Cycle Gfd3
Outside Air Max Limit
Temperature : Yes
Humidity : No
Enthalpy : No
Dew Point: No
16.0
o
C
Yes
NOTE
To use humidity sensor option in economy cycle, refer to Humidity Sensor Installation and Commissioning Guide.
22. ROOM AIR TEMPERATURE SENSOR INSTALLATION
NOTES
• Install the Room Air Temperature Sensor in the most suitable location to ensure adequate sensing.
• Ensure that the sensor is located where the room air is not affected by other heat sources.
• The Room Air Temperature Sensor must be properly secured in the chosen location.
• The Sensor wire should be routed securely and not to be exposed to sunlight, rain, dust and other contaminants.
• Ensure the sensor cable is ran separately to any low/high voltage cables to avoid interference.
22.01. Room Air Temperature Sensor Wired to Indoor Unit
The Room Air Temperature Sensor by default is installed in the indoor unit. Exact location of the sensor bulb will be
determined by the installing contractor on site.
The supplied length of the sensor is 6m and can be extended by the contractor on site. See Maximum Cable Length
table in section 15.02.
22.02. Room Air Temperature Sensor Wired to Outdoor Unit
The Room Air Temperature Sensor can also be installed inside the outdoor unit if its location is suitable to place the
temperature sensor. However, the installer must remove the installed temperature sensor from indoor and connect to
outdoor unit. To do this follow the procedure below.
a. Remove the temperature coil sensor from the indoor PCB.
b. Cut the cable of the Room Air Temperature sensor, as close as possible to the plug.

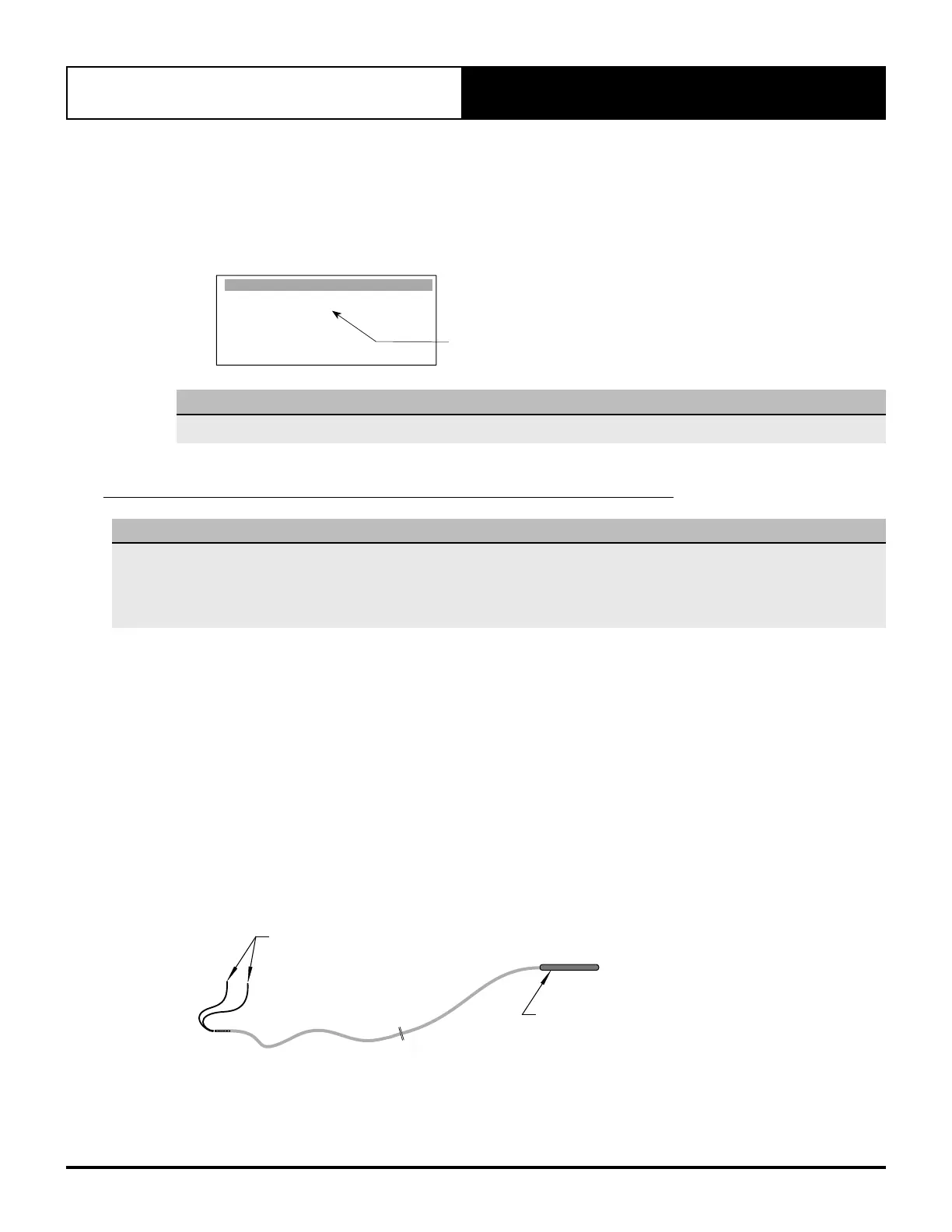

c. Strip the cable to expose the wires:
Strip the cable to expose the
wires
Room Air
Temperature Sensor
