30
Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330
Installation and Commissioning Guide
Split Tri-Capacity

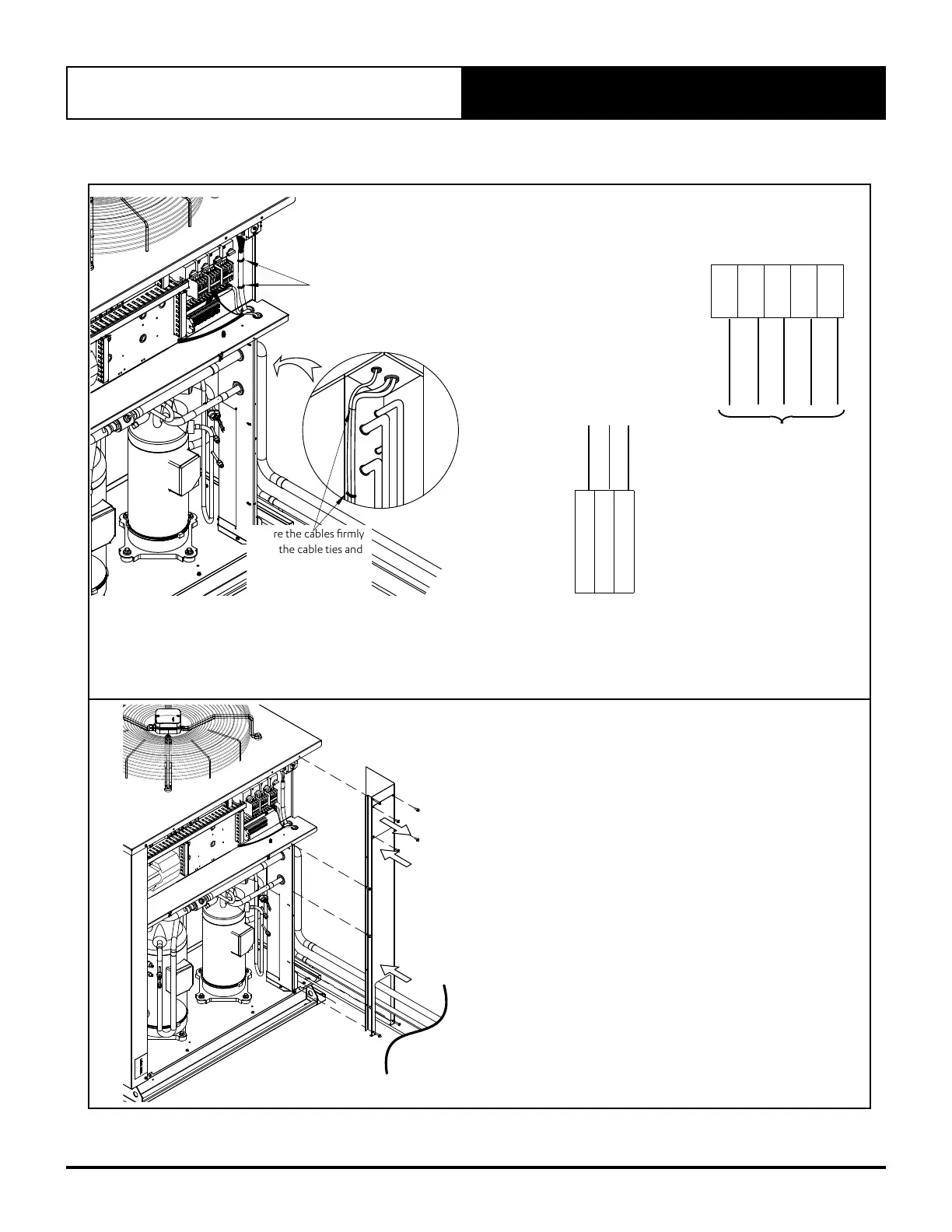

13.03. Electrical Mains
1. Connect electrical and control wirings
• Route electrical mains cable, indoor cable connections and wall control wires as shown above.
• Refer to electrical section for electrical and control connections.
•
2. Re-install Access Panel-Corner.
• Re-install Access Panel-Corner as shown.
Secure the cables firmly
using the cable ties and
clamp provided in the
electrical panel.
Secure the cables firmly
using the cable ties and
clamp provided in the
panel.
E L1 L2 L3 N
Earth
Line 1
Line 2
Neutral
Line 3
MAIN LINE
Main
Terminal Block
37 38 E
TO
INDOOR
UNIT
Terminal
Block Strip
Earth
Active
Neutral
To Next Page
