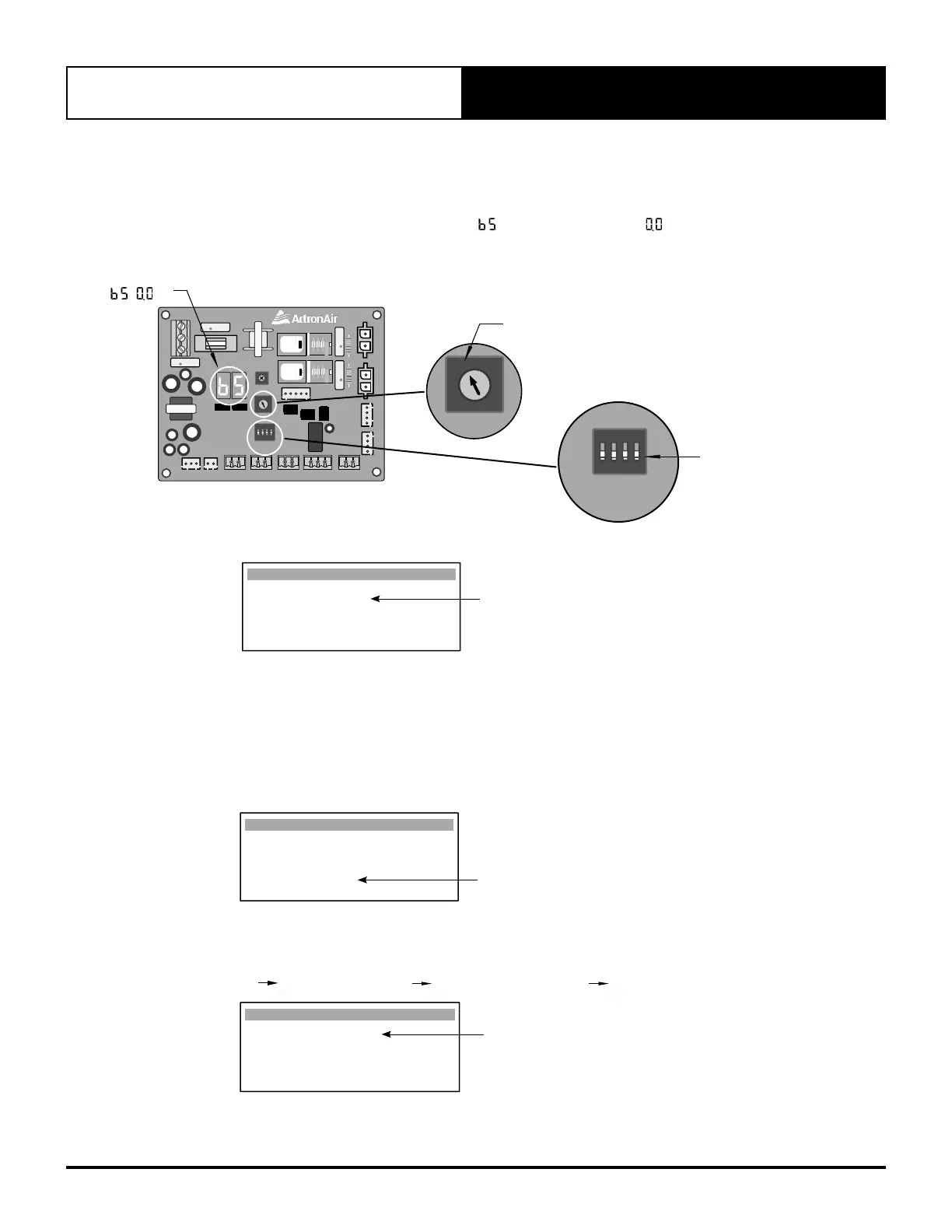

19.02.01. Indoor Fan Speed Setting Procedure via Control Interface
Before performing the Indoor fan commissioning procedures below, make sure that the Unit S on the indoor
board is set to F and the DIP switches are all OFF (See illustration below).
LED FAN STATUS Display will alternately show (Interface Control) and (0-10V Out Speed Control).
1 2 3 4
ON
PWM1
A N
G N A
A N
PWM2
A B
485 OUTDOOR
COM NC NO
AUX OUTPUT
10V 0V
0 - 10V OUT
10V 0V
0 - 10V IN
DIP
SWITCH
POT
ADJUST
UNIT SET
COM DN
FAULT INPUT
COIL TEMPAUX SENSOR
0
1
9
5
D
2
A
6
E
3
B
7
F
4
C
8
(CIB01)
COMMERCIAL INDOOR BOARD
LED FAN STATUS
DISPLAY
  
SET TO F
0
1
9
5
D
2
A
6
E
3
B
7
F
4
C
8
UNIT SET
MAKE SURE ALL
DIP SWITCHES
ARE OFF
1 2 3 4
ON
DIP
SWITCH
UNIT SET
Unit control mode is set to INTERNAL SENSOR via Gfc11
INTERNAL SENSORS
S. Conguration Gfc11
Unit control mode :
INTERNAL SENSORS
Supply Fan Control :
Select Wall Control:
SINGLE CL01
On screen C1, set the Mode to AUTO CHANGE OVER, so the INTERNAL SENSORS will have full control of the
compressor operation.
By setting the mode to Cool only will restrict the compressor operation to Cool only.
By setting the mode to Heat only will restrict the compressor operation to Heat only.
Then set the Fan Mode to operate in either Continuous or Auto cycle (Auto cycle will cycle the indoor fans
on/off with the compressor).
Select Auto Cycle or Continuous Indoor Fan operation
Heat / Cool C1
Mode: AUTO CHANGE OVER
Fan mode: Auto cycle
On screen Gfc13, set the Type of fans fitted Supply to ACTRON A2FB.
G. Service Gf. Service settings Gfc. Thermoregulation Gfc13. S. Configuration
ACTRON A2FB
S. Conguration Gfc13
Type of fans tted :
Supply : ACTRON A2FB
Outdoor : 2 SPEED AC
Outdoor Init Speed
OF1: 60.0% OF23: 60.0%
Econ. cycle tted : Yes
Econ. type: MODULATE
