ActronAir ELY620T - Page 73

Installation and Commissioning Guide
Split Tri-Capacity
73
Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330
CAY620T / ELY620T

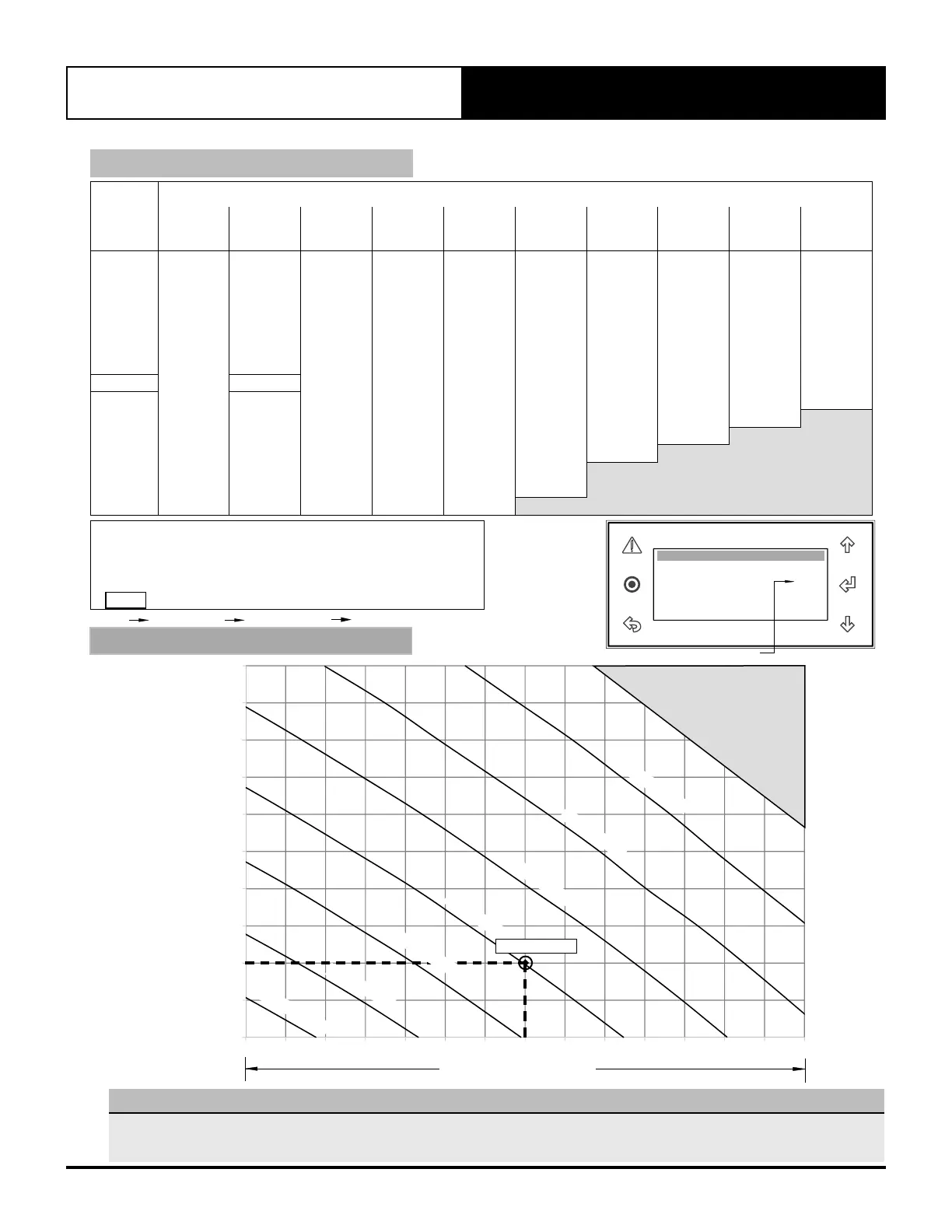

FAN PERFORMANCE DATA
Airflow
(l/s)
External Static Pressure (Pa)
50 100 150 200 250 300 350 400 450 500
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
2500 54.7 872 5 7. 8 1056 60.5 1239 63.2 1450 65.7 1647 68.2 1844 70.6 2035 73.1 2238 75.2 2402 7 7.2 2601
2600 56.8 955 59.6 1143 62.1 1337 64.8 1553 6 7. 2 1746 69.9 1963 72.0 2138 74.6 2354 76.5 2510 78.8 2790
2700 58.7 1047 61.1 1220 63.6 1421 66.2 1632 69.0 1863 71.1 2040 73.6 2255 75.8 2459 7 7. 8 2667 80.0 2896
2800 60.2 1106 62.9 1324 65.5 1535 67.8 1730 70.3 1942 72.8 2164 75.0 2360 7 7. 2 2592 79. 2 2803 81.3 2905
2900 62.3 1230 64.8 1435 67.1 1633 69.7 1858 72.0 2065 74.5 2291 76.6 2508 78.8 2743 80.8 2950 82.9 3200
3000 64.0 1348 66.6 1541 69.0 1752 71.2 1949 73.7 2178 75.9 2396 78.2 2647 80.3 2845 82.2 3080 84.3 3315
3100
65.8 1416
68.7 1674
70.7 1853 73.1 2073 75.2 2270 7 7.5 2530 79.8 2790 81.8 3028 83.8 3268 85.7 3480
3200 6 7. 8 1557 70.1 1809 72.2 1939 74.9 2190 76.8 2405 79.0 2658 81.2 2918 83.2 3161 85.2 3381 8 7. 2 3650
3300
69. 7 1610
72.1 1875
74.1 2067 76.4 2313 78.4 2541 80.8 2825 82.8 3076 84.8 3328 86.9 3640
88.8 3900
3400 71.6 1763 73.8 1979 75.8 2188 78.2 2461 80.2 2690 82.2 2945 84.3 3212 86.2 3465
88.2 3737
3500 73.6 1920 75.4 2074 7 7.6 2321 80.0 2590 81.8 2824 84.0 3110 85.9 3362
88.0 3646
3600 75.1 1968 7 7.2 2211 79.4 2465 81.7 2752 83.5 2981 85.5 3242
87.7 3548
3700 76.8 2088 79.0 2349 81.1 2605 83.3 2880 85.4 3150 87.2 3408
MOTOR / BLOWER LIMIT
3800 79.0 2275 80.9 2498 83.0 2763 85.1 3029 87.0 3311
89.0 3622
3900 80.9 2410 82.8 2663 84.9 2943 86.8 3220 88.9 3528
Thermoregulat. Gfc4
Supply Fan
Minimum Temp. 5.0
o
C
Maximum Temp. 50.0
o
C
Minimum speed: 54.7%
Medium speed: 70.1%
Maximum speed: 89.0%
Supply Fan Temp.
Set Fan Speed
*Service Service Settings Thermoregulation Thermoregulat. Gfc4
NOTES:
% Speed = Indoor Fan Speed Control Setting, in percent
(Value is set on the Control Interface via Service Menu *).
W = Indoor Fan Power, Watts
- Data in the box indicates Factory Default Setting.
INDOOR UNIT FAN CURVE
0
50
100
150
200
250
300
350
400
450
500
2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900
EXTERNAL STATIC PRESSURE (Pa)
AIRFLOW (L/s)
StaticPressureVsVolumeFlow
EXISTING
40%
45%
50%
55%
60%
NEW
40%
45%
50%
55%
60%
65%
70%
75%
80%
85%
90%
95%
60% Speed
70% Speed
75% Speed
80% Speed
85% Speed
90% Speed
95% Speed
55% Speed
EXTERNAL STATIC
PRESSURE (Pa)
APPLICATION RANGE
Nominal Airflow = 3200 l/s AIRFLOW (l/s)
NOTE
Fan Performance Data and Fan Curve shown is at dry coil and with no air filters installed. Consider external static pressure drop specific to your design
requirements. Airflow should be reduce with respect to the moisture content in the air. Please review filter manufacturer for application. 2.5 m/s face
velocity point will occur at 4097 l/s.
65% Speed
70.1% Speed
MOTOR / BLOWER LIMIT
89% Speed
