Installation and Commissioning Guide
Split Tri-Capacity
75
Installation and Commissioning Guide 500-700 Tri-Capacity Split Ducted
Doc. No.0525-098 Ver. 2 210330
CAY700T / ELY700T

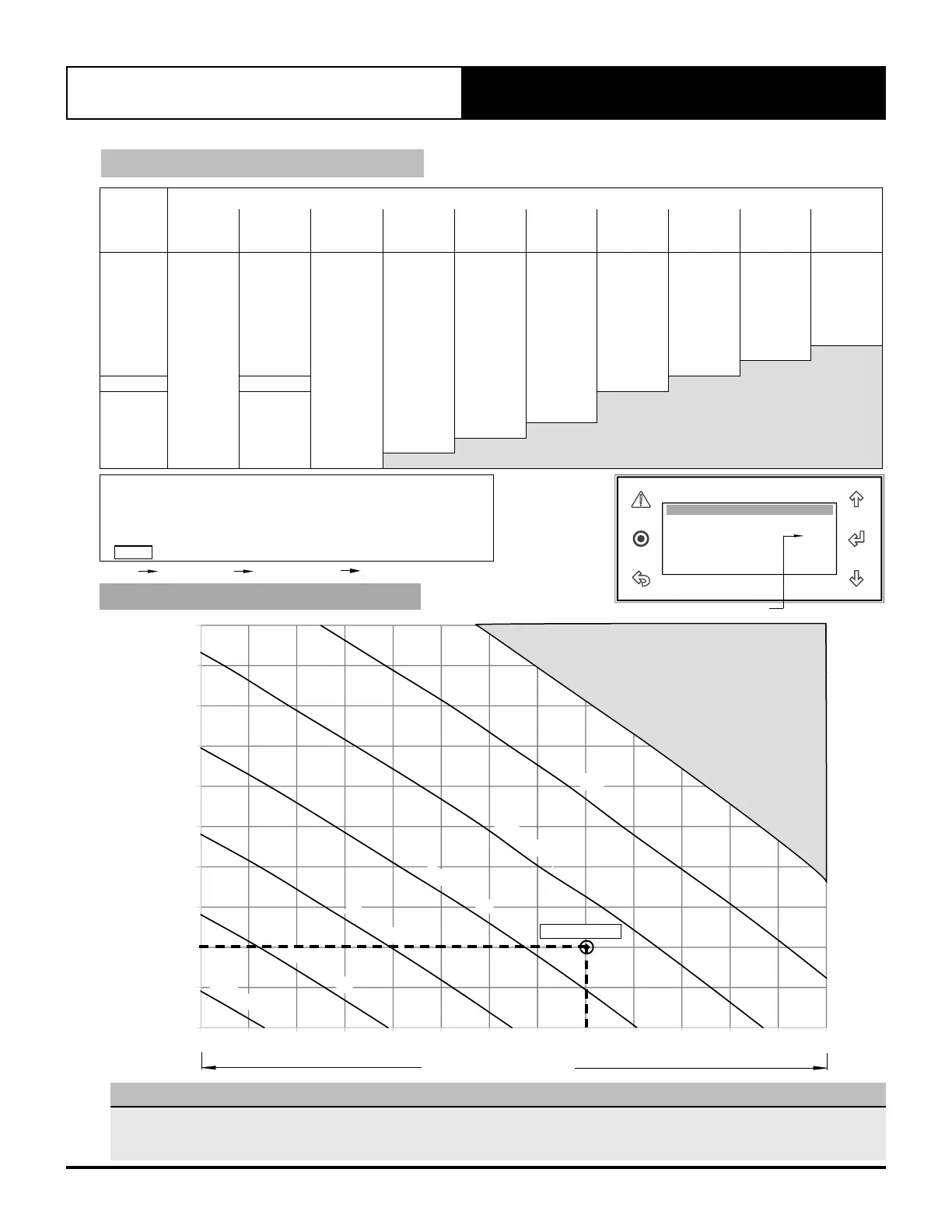

FAN PERFORMANCE DATA
Airflow
(l/s)
External Static Pressure (Pa)
50 100 150 200 250 300 350 400 450 500
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
%
Spd.
W
2800 60.2 1106 62.9 1324 65.5 1535 67.8 1730 70.3 1942 72.8 2164 75.0 2360 7 7. 2 2592 79.2 2803 81.3 2905
2900 62.3 1230 64.8 1435 67.1 1633 69.7 1858 72.0 2065 74.5 2291 76.6 2508 78.8 2743 80.8 2950 82.9 3200
3000 64.0 1348 66.6 1541 69.0 1752 71.2 1949 73.7 2178 75.9 2396 78.2 2647 80.3 2845 82.2 3080 84.3 3315
3100 65.8 1416 68.7 1674 70.7 1853 73.1 2073 75.2 2270 7 7.5 2530 79.8 2790 81.8 3028 83.8 3268 85.7 3480
3200 67.8 1557 70.1 1809 72.2 1939 74.9 2190 76.8 2405 79.0 2658 81.2 2918 83.2 3161 85.2 3381 87. 2 3650
3300 69. 7 1610 72.1 1875 74.1 2067 76.4 2313 78.4 2541 80.8 2825 82.8 3076 84.8 3328 86.9 3640
88.8 3900
3400 71.6 1763 73.8 1979 75.8 2188 78.2 2461 80.2 2690 82.2 2945 84.3 3212 86.2 3465
88.2 3737
3500
73.6 1920
75.4 2074
7 7.6 2321 80.0 2590 81.8 2824 84.0 3110 85.9 3362
88.0 3646
3600 75.1 1968 77.2 2211 79.4 2465 81.7 2752 83.5 2981 85.5 3242
87.7 3548
3700
76.8 2088
79.0 2349
81.1 2605 83.3 2880 85.4 3150 87. 2 3408
3800 79.0 2275 80.9 2498 83.0 2763 85.1 3029 8 7.0 3311
89.0 3622
3900 80.9 2410 82.8 2663 84.9 2943 86.8 3220
88.9 3528
MOTOR / BLOWER LIMIT
4000 82.9 2600 84.8 2870 86.8 3130
88.5 3377
4100 84.7 2780 86.5 2996 88.8 3339
Thermoregulat. Gfc4
Supply Fan
Minimum Temp. 5.0
o
C
Maximum Temp. 50.0
o
C
Minimum speed: 60.2%
Medium speed: 77.2%
Maximum speed: 89.0%
Supply Fan Temp.
Set Fan Speed
*Service Service Settings Thermoregulation Thermoregulat. Gfc4
NOTES:
% Speed = Indoor Fan Speed Control Setting, in percent
(Value is set on the Control Interface via Service Menu *).
W = Indoor Fan Power, Watts
- Data in the box indicates Factory Default Setting.
INDOOR UNIT FAN CURVE
Nominal Airflow = 3600 l/s AIRFLOW (l/s)
0
50
100
150
200
250
300
350
400
450
500
2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100
EXTERNAL STATIC PRESSURE (Pa)
AIRFLOW (L/s)
StaticPressureVsVolumeFlow
EXISTING
40%
45%
50%
55%
60%
NEW
40%
45%
50%
55%
60%
65%
70%
75%
80%
85%
90%
95%
99%
65% Speed
70% Speed
75% Speed
80% Speed
85% Speed
90% Speed
95% Speed
60% Speed
APPLICATION RANGE
EXTERNAL STATIC
PRESSURE (Pa)
NOTE
Fan Performance Data and Fan Curve shown is at dry coil and with no air filters installed. Consider external static pressure drop specific to your design
requirements. Airflow should be reduce with respect to the moisture content in the air. Please review filter manufacturer for application. 2.5 m/s face
velocity point will occur at 4097 l/s.
77.2% Speed
89% Speed
MOTOR / BLOWER LIMIT
