ACUTRONIC fabian Therapy evolution - Rear Panel of Devices Till SN at 03999

16 System overview
fabian Therapy evolution | SW 5.1.x
Ref: 121003.EN / Date 2020-01-22

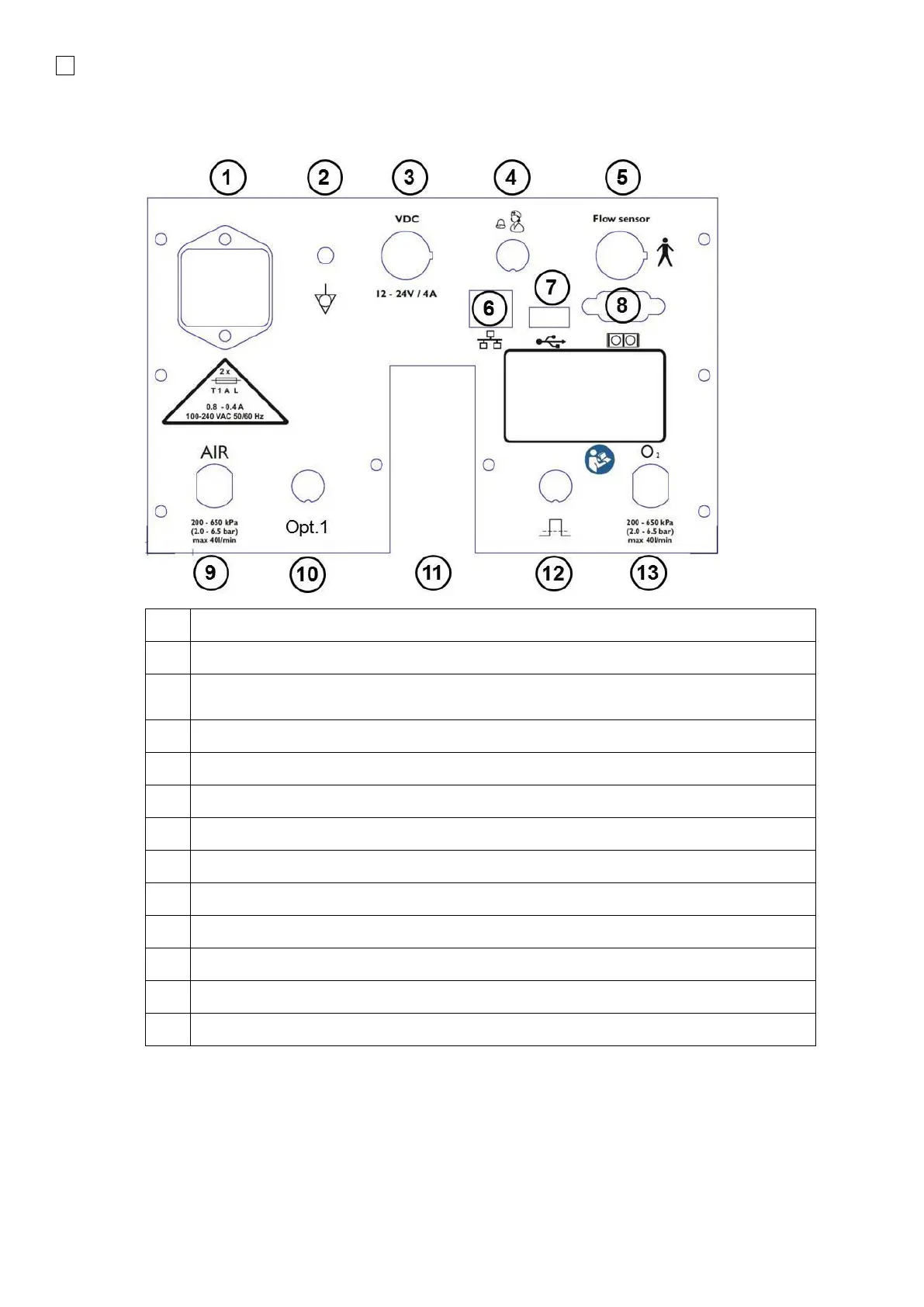

3.4.2 Rear panel of devices till SN AT 03999
1.
Mains connection with fuse holder
2.
Terminal studs for potential equalization
3.
Connection for external voltage supply 12  24V DC
With HW Rev. 1.0 use only with connection cable Part. No. 151401
4.
Nurse call connector, max. switching voltage 30 VDC
5.
Covered with a faceplate / Flow sensor connector
6.
Network connection for data management (disabled)
7.
USB connection for data output, Software update. Connector for Masimo SpO
2
module.
8.
RS232 interface, service, PDMS
9.
Connection for compressed air supply 2.0  6.5 bar / max 40 l/min
10.
Connection for future use, covered with a faceplate
11.
Oxygen sensor
12.
Connection for future use, covered with a faceplate
13.

2
 6.5 bar / max 40 l/min
