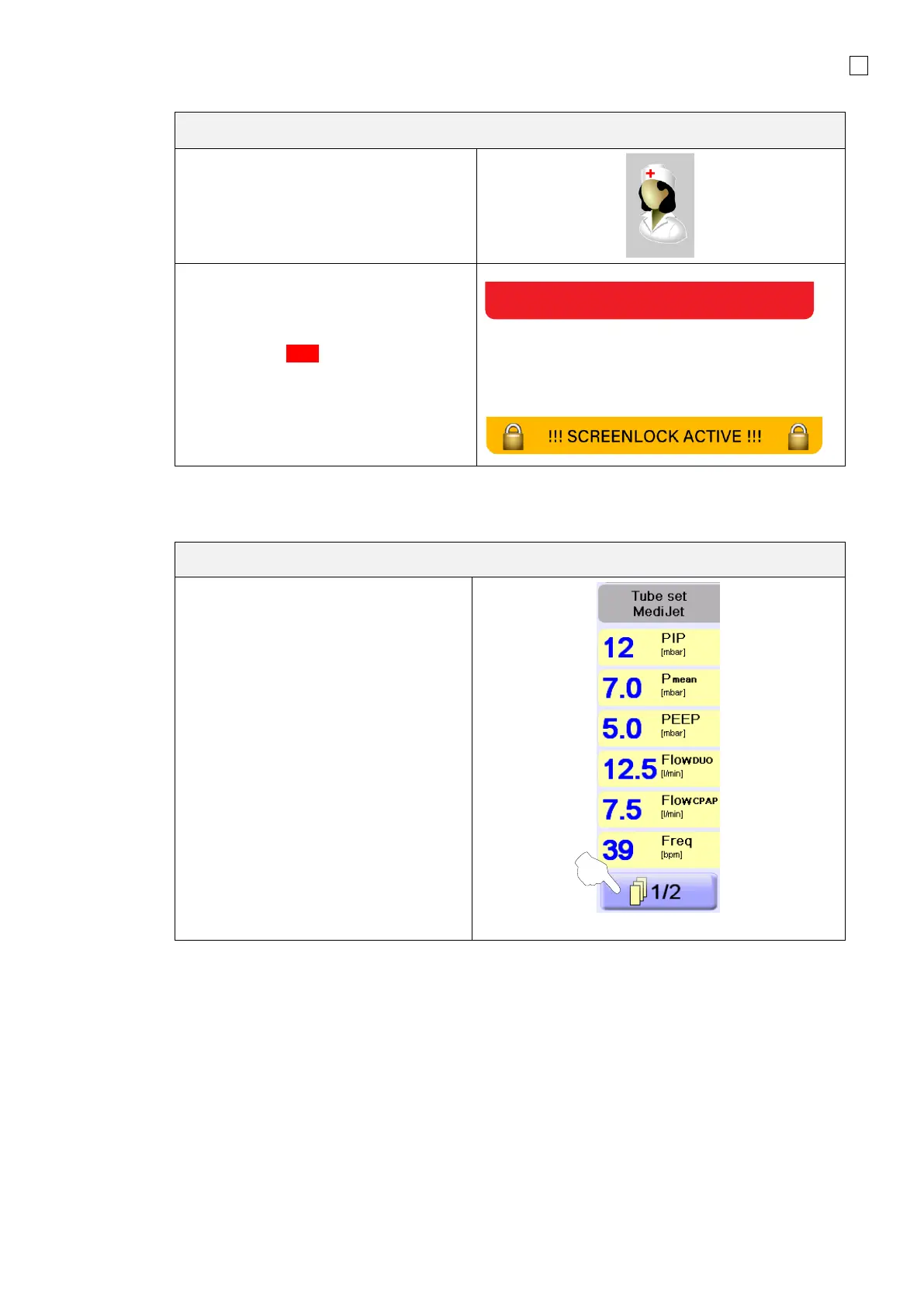

The Information bar displays from general information to displaying alarms. It is divided into 3
sections.
The Nurse indicates Nurse Call is
activated
Ventilation mode  Info  and Alarm
display
Displays ventilation mode and, if
applicable, additional current information
and notices. A RED blinking Information
bar also alerts the operator of active
alarms.
If screen lock is in use, the symbol for
Locked Screen is displayed.
4.2.4 Numeric field / Alarm limits
The numeric fields are showing all measured values
In the numeric field the selected
ventilation mode related measured
values are displayed.
There can be multiple pages of numeric
fields.
To go to the next page, press the
button (1) below the numeric field.
Depending on the Ventilation mode the
data is updated as average/minute or by
breath.
Numeric field
1
