ACUTRONIC fabian Therapy evolution - System Functions and Displays; Control Panel Overview

18 System functions and displays
fabian Therapy evolution | SW 5.1.x
Ref: 121003.EN / Date 2020-01-22
4 System functions and displays
4.1 Control panel options

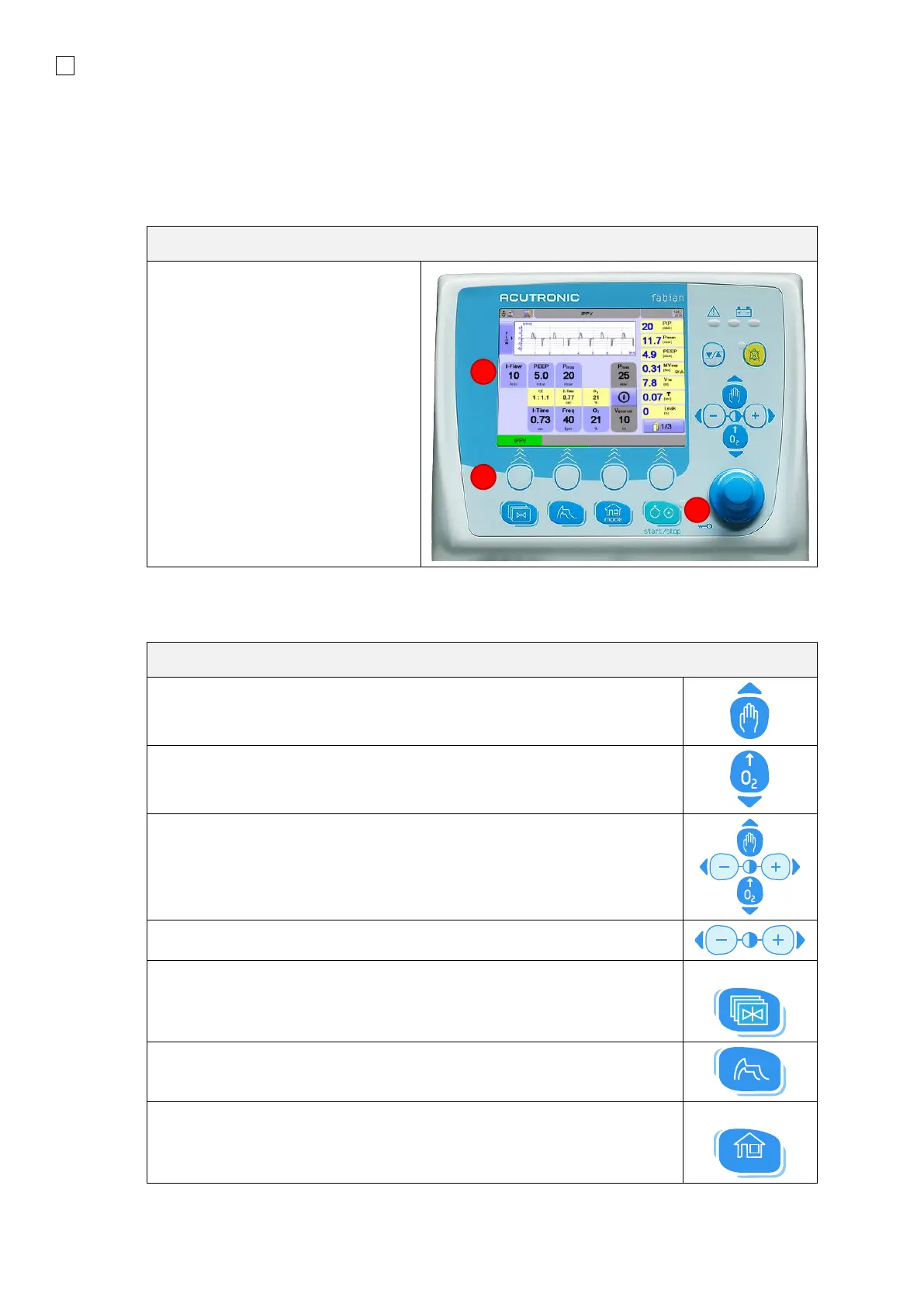

The control panel features three key elements:
The display Touch Screen (1) allows
the direct control of the ventilator
parameters by tapping defined
buttons on the graphic user interface.
Fields in the lower section (2) of the
touch screen are operated with the
buttons underneath.
The button /-control panel (3) rotary
push knob (combined with a push
button and selection dial)
4.1.1 Function buttons
The key pad features two rows of buttons with various functions.
Manual breath
Used to apply a manual breath. Available in all the ventilation modes.
O
2
Flush
Used to start O
2
flush. Flush concentration and time can be preset.
Cursor buttons
These buttons serve as control in several menus
Screen contrast setting
Menu ∕ Calibration
Used to access the setting and calibration menus. Pressing once will open
the configuration menu; pressing again will open the calibration menu.
Waves ∕ Loops
-/loop display.
Home


1
2
3
