5.1.3 Connect nCPAP tubing

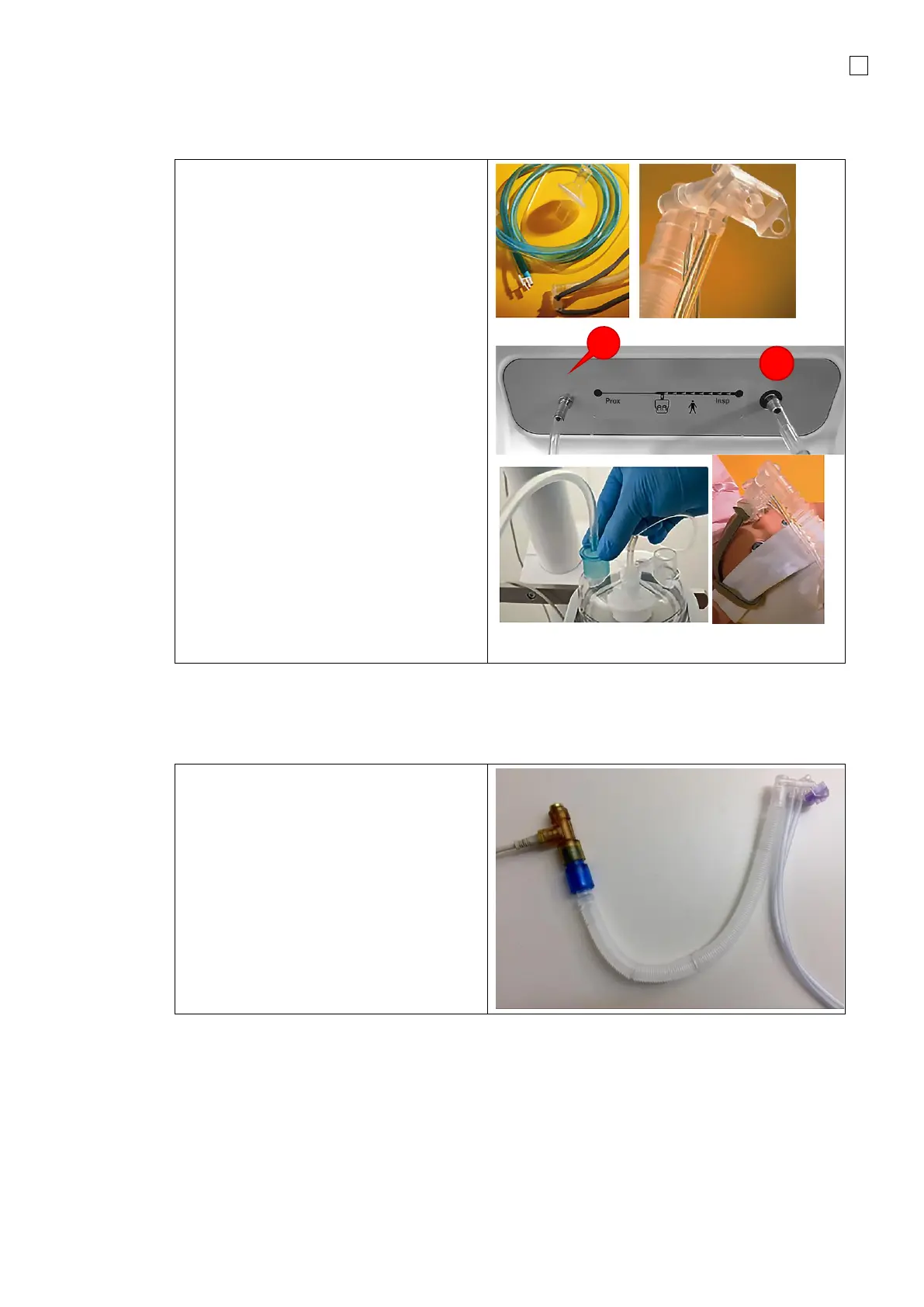

Preparing the nCPAP tubing system:
• Connect nCPAP adapter to the fabian
nCPAP port (1). (REF: 153001).
• Connect the 22 mm adapter connector
to the Humidifier Chamber inlet.
• Connect the nCPAP system Pressure
measuring limb to the fabian port
marked Prox (2).
• Connect the nCPAP system to
Humidifier Chamber outlet.
• Apply the nCPAP system to the patient
according to manufacturer instructions.
For details of using nCPAP systems, refer to the manufacturer  manual for consumables.
5.1.4 Triggering in DUOPAP mode with flow sensor (optional)
Preparing the nCPAP
InfantFlow/InfantFlowLP/Inspire Tubing
System
• Connect Flow sensor to
exhalation tube as shown in the
picture.
Recommendation:
• Make the Exhalation tube as
short as possible.
1
2
