Chapter 9 - Cleanroom Robots

120 Adept Cobra s600/s800 Robot User’s Guide, Rev H

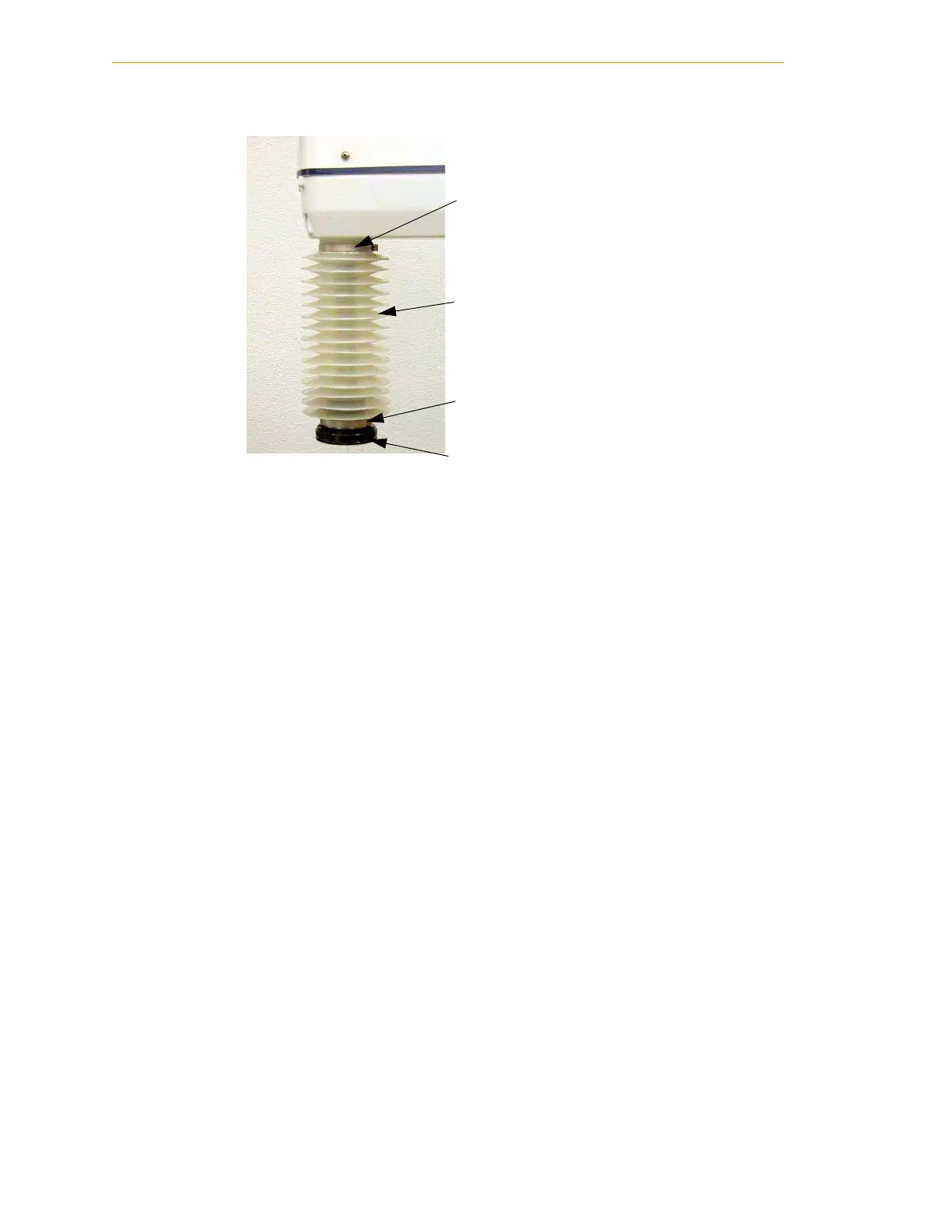

Figure 9-3. Cleanroom Bellows Replacement

Lubrication

The upper and lower quill requires lubrication in the same manner as the standard Cobra

s600/s800 robots. See Section 6.6 on page 71.

Upper Bellows Clamp Ring

Bellows

Lower Bellows Clamp Ring

User Tool Flange
