Lubricate Joint 3 Ball Screw

Adept Cobra s600/s800 Robot User’s Guide, Rev H 73

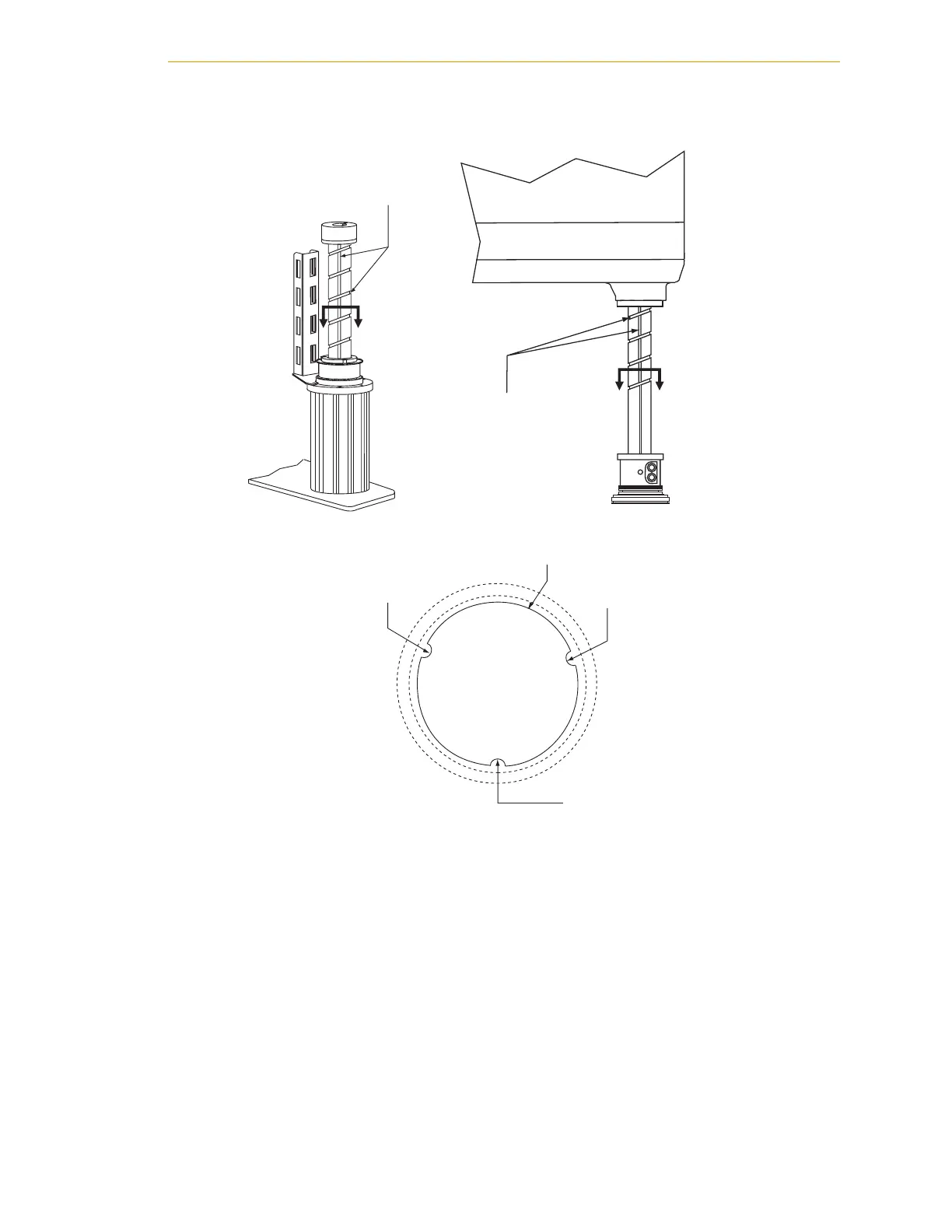

Figure 6-1. Lubrication of Joint 3 Quill

Joint 3 Ball Screw

Lubrication Points

Section A-A

Top View Looking Down

Quill Shaft

Vertical Groove

Lube Point A

Vertical Groove

Lube Point B

Vertical Groove

Lube Point C

Upper Quill Grease Locations

Lower Quill Grease Locations

Joint 3 Ball Screw
