ADTECH4 SeriesCNC Maintenance Manual

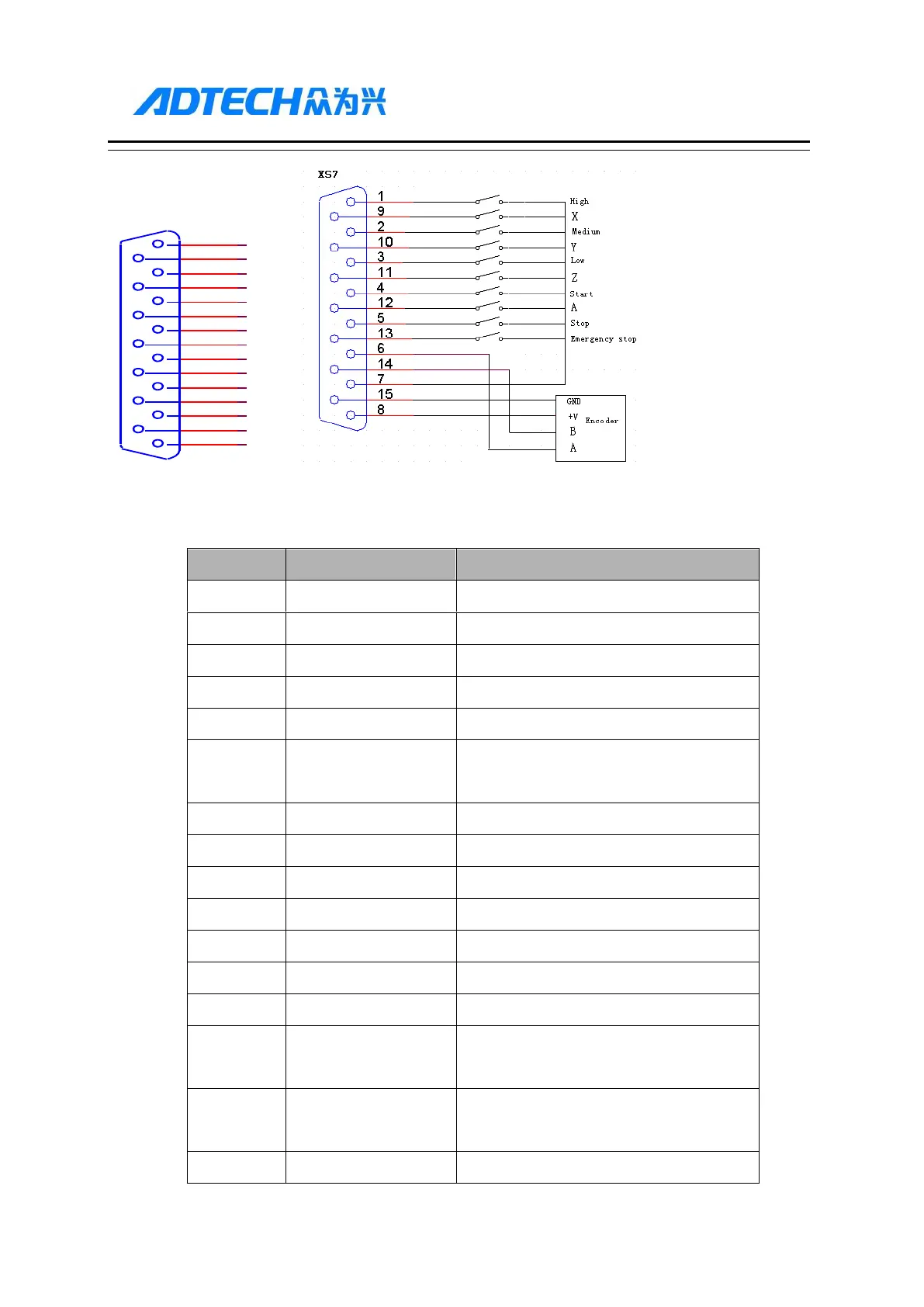

The definition of 46X series (XS7) follows:
Wire No.
Definition
Function
1
(IN24) gear switch
0.1 gear --- High speed
2
(IN26) gear switch
0.01 gear --- Medium speed
3
(IN28) gear switch
0.001 gear --- Low speed
4
(IN30) button
Cycle start
5
(IN32) button
Pause
7
24V-
Negative pole of internally provided 24V
power supply
9
(IN25) axis selection
X axis
10
(IN27) axis selection
Y axis
11
(IN29) axis selection
Z axis
12
(IN31) axis selection
A axis
13
(IN33) button
Emergency stop
6
HA
Hand encoder phase A input signal
14
HB
Hand encoder phase B input signal
15
5V-
Negative pole of internally provided 5V
power supply
8
+5V
Positive pole of internally provided 5V power
supply
7
24V-
Negative pole of internally provided 24V
HA
IN33
8
15
7
14
6
13
5
12
4
11
3
10
2
9
1
5V+
IN32
IN31
HB
24V-
IN28
IN26
IN25
IN24
IN29
IN30
IN27
5V-
