Adtech ADTECH4 CNC Series User Manual

ADTECH4 SeriesCNC Maintenance Manual
power supply

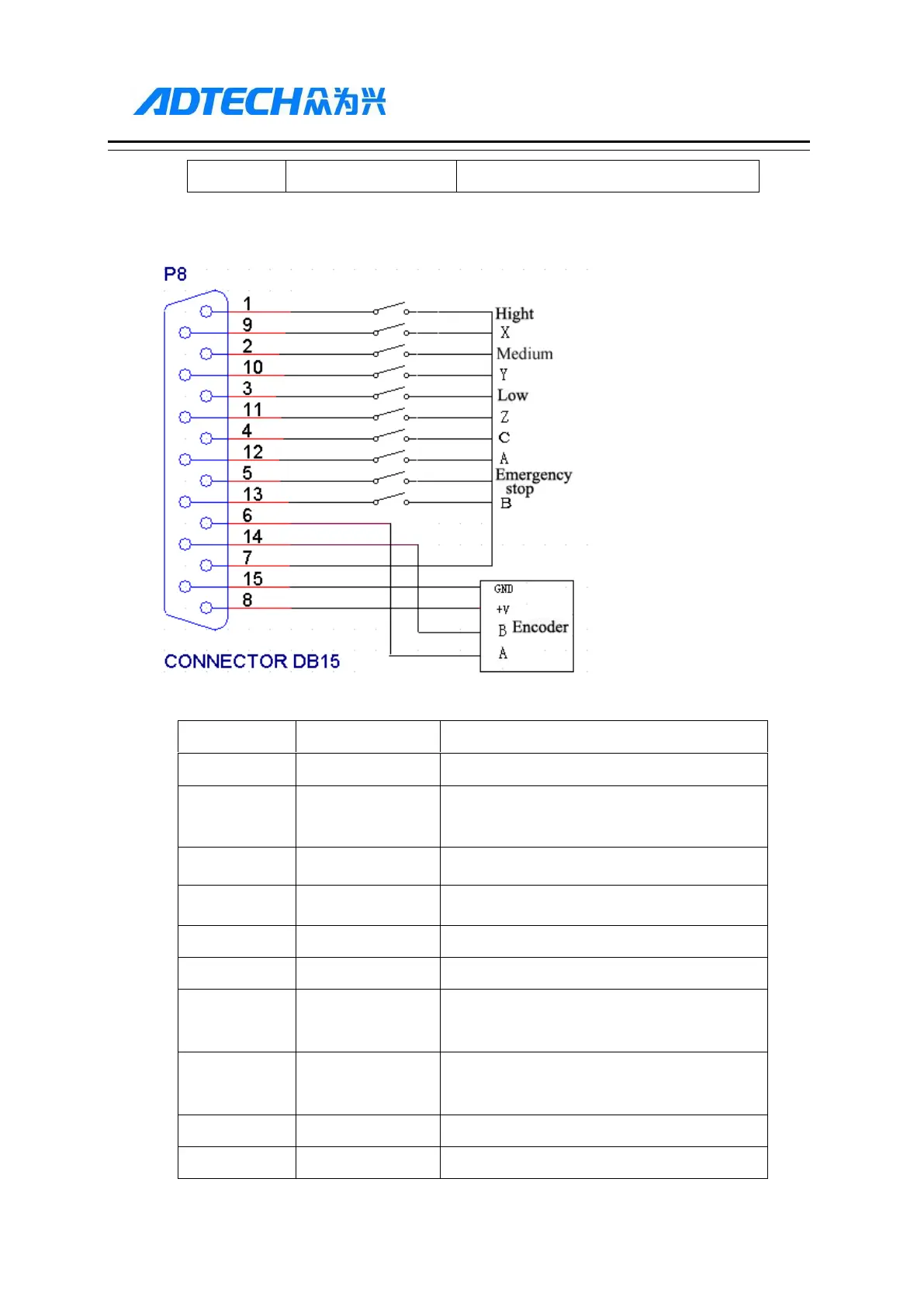

49 series (XS9)
CNC4960 definition follows:
Wire No.
Definition
Function
1
IN63
0.1 gear switch – high
2
IN64
0.01 gear switch – medium
3
IN65
0.001 gear switch – low
4
IN60
Select C axis
5
IN61
Emergency stop
6
HA
Hand encoder phase A input signal
7
24V-
Internally provided -24V power
supply
8
5V+
Internally provided +5V power
supply
9
IN56
Select X axis
10
IN57
Select Y axis
