Adtech ADTECH4 CNC Series User Manual

ADTECH4 SeriesCNC Maintenance Manual
11
IN58
Select Z axis
12
IN59
Select A axis
13
IN62
Select B axis
14
HB
Hand encoder phase B input signal
15
5V-
Internally provided -5V power
supply

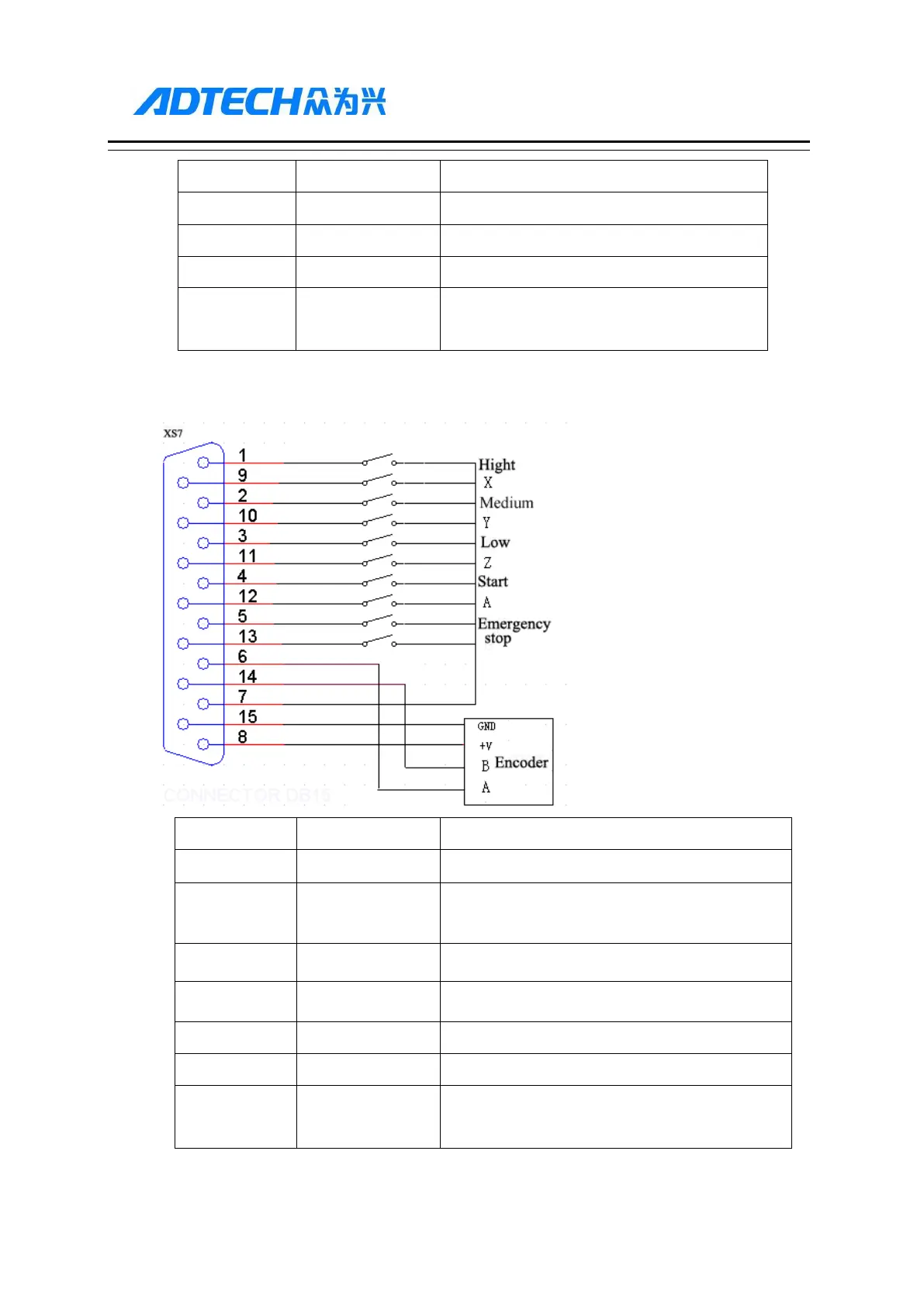

49 series (XS9)
CNC4940 definition follows:
Wire No.
Definition
Function
1
IN63
0.1 gear switch – high
2
IN64
0.01 gear switch - medium
3
IN65
0.001 gear switch - low
4
IN60
Start
5
IN61
Stop
6
HA
Hand encoder phase A input signal
7
24V-
Internally provided -24V power
supply
