ADTECH4 SeriesCNC Maintenance Manual

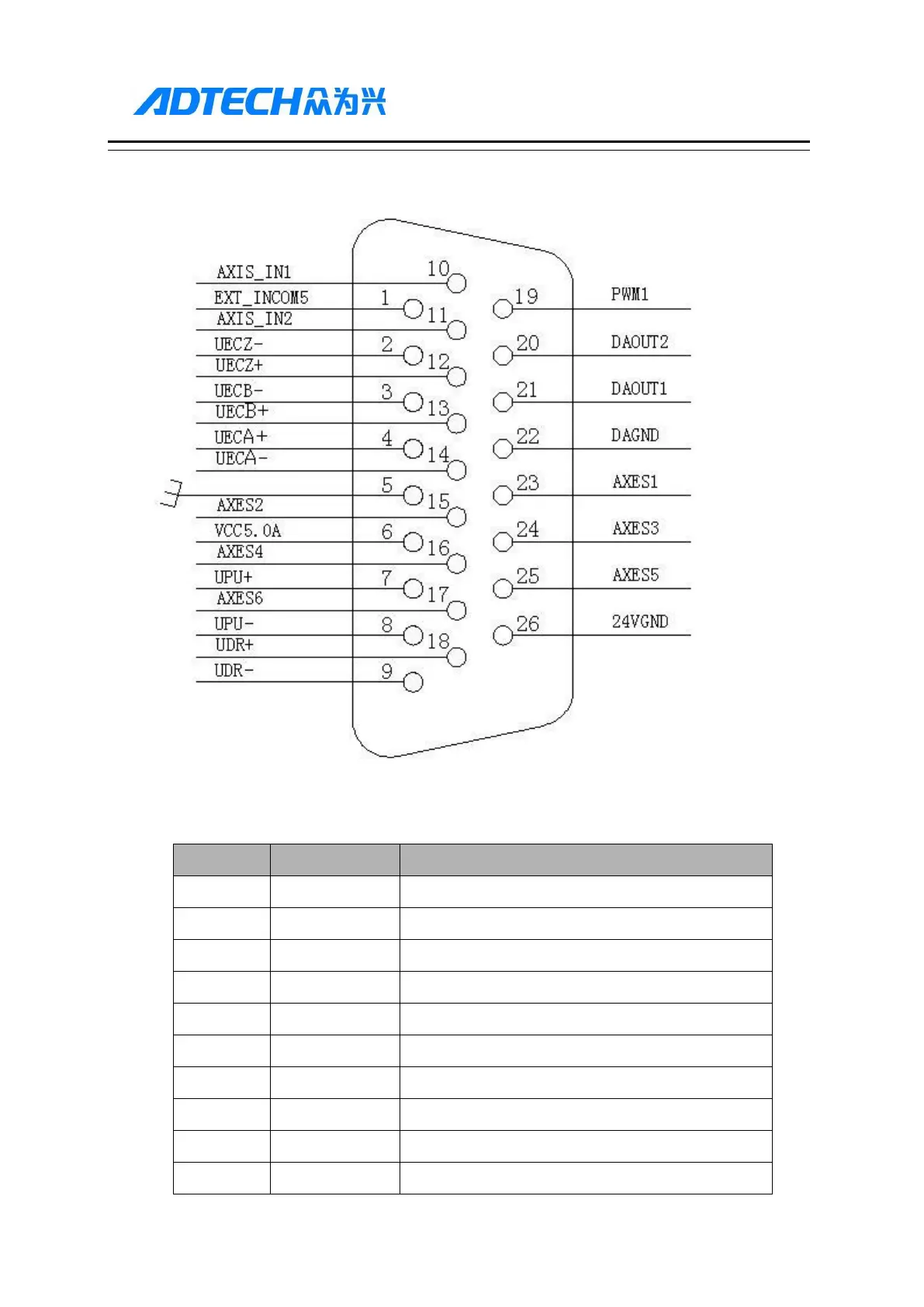

Principal axis encoder wiring diagram (49 series controller):

Wire No.

Definition

Function

EXT_INCOM5

Control signal common terminal power 24V+

UECZ-

Spindle encoder Z-

UECB-

Spindle encoder B-

UECA+

Spindle encoder A+

EXT_GNDA

Spindle encoder power GND

EXTVCC5.0A

Spindle encoder 5V+

CDR-

Spindle position control direction -

CDR+

Spindle position control direction +

CPU-

Spindle position control pulse -

AXIS_IN1

Spindle alarm input port 1

Main Page

Default Chapter5
- Table of Contents5
