Barcode Scanner Replacement
705005R
Reference: Use this instruction with replace-
ment part 705005R, and the
General Disassembly
Instructions (112202PM).
Tools Required: Phillips Screwdrivers
(No. 1 &No. 2)
5/16” Nut Driver
Static Grounding Wrist
Strap
Warning-Hazardous Voltage
CAUTION: A discharge of static
electricity from contact with the
human body or other conductor may
damage system boards or static sensi-
tive devices. NEVER UNPACK,
TOUCH OR HANDLE ANY PCB
WITHOUT WEARING A
GROUNDING (EARTHING)
STRAP TO MINIMIZE YOUR
STATIC DISCHARGE.
Instruction:
1. Disassemble the instrument by performing
steps one through twelve of the General
Disassembly Instructions.
2. Unplug the BS1 Connector from the
Barcode Scanner (Figure 1).
3. Remove the two screws that mount the
Barcode Scanner to the Mounting Bracket
(Figure 2).
4. Mount the replacement Barcode Scanner
to the Mounting Bracket using the two
screws.
5. Plug the BS1 Connector into the Barcode
Scanner.
6. Reverse steps one through twelve of the
General Assembly Instructions to re-
assemble the instrument.
705005RPM Rev0
(OsmoPRO Service Manual)
Page 1 of 1
For additional information or technical assistance,
please contact Advanced Instruments Hot-Line
TM
Service Center (U.S. 1-800-225-4034, outside North
America +US 1-781-320-9000).

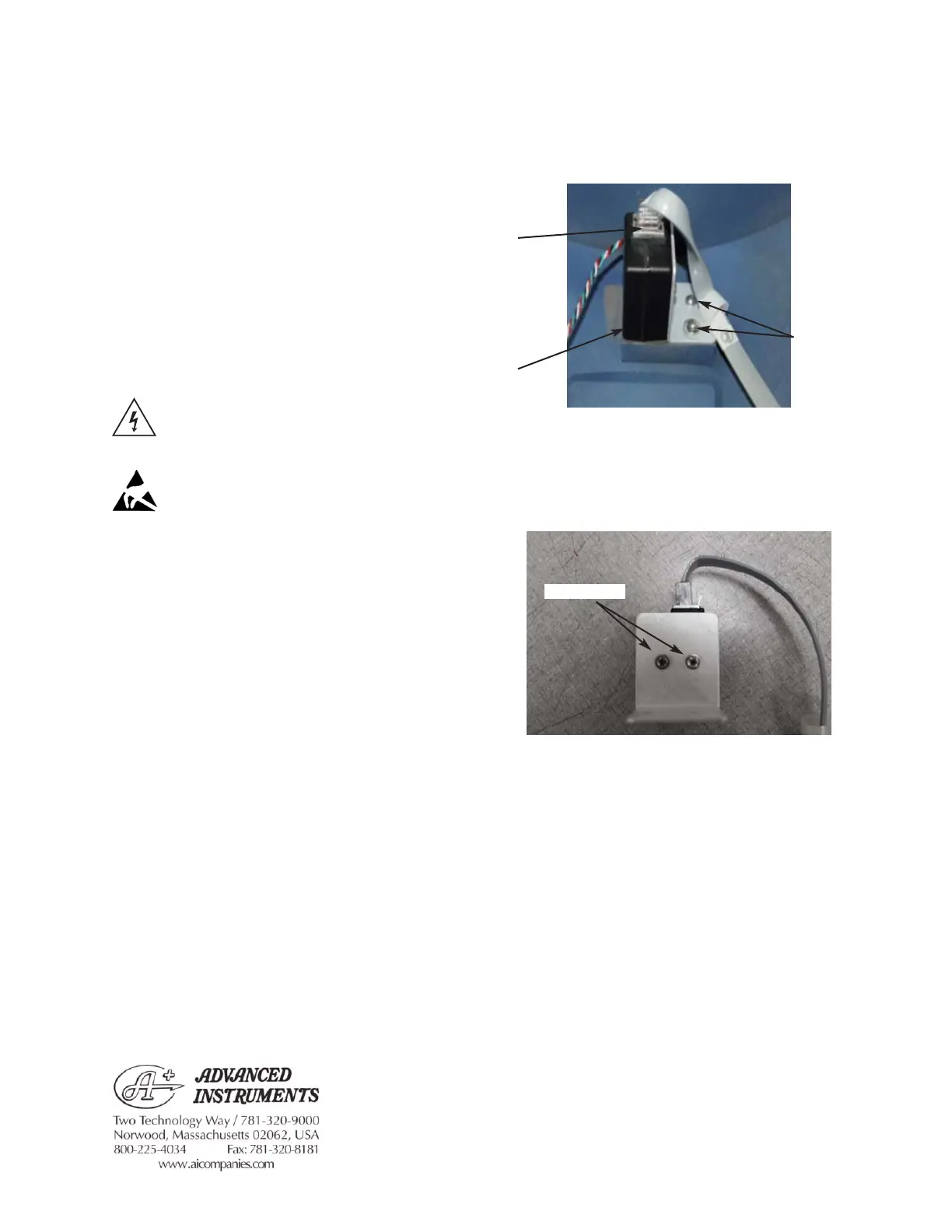

Figure 1
BS1
Connector
Two screws
Barcode
Scanne
r
Figure 2
Two Screws
