Advanced Instruments OsmoPRO Service Manual

LCD Screen Mounting Assembly Replacement
112022R
112022RPM Rev0
(OsmoPRO Service Manual)
Page 1 of 1
Reference: Use this instruction with replace-
ment part 112022R, and the
General Disassembly
Instructions (112202PM)
Tools Required: Phillips Screwdrivers
(No. 1 & No. 2)
5/16” Nut Driver
Static Grounding
Wrist Strap
Warning-Hazardous Voltage
CAUTION: A discharge of static
electricity from contact with the
human body or other conductor may
damage system boards or static sensi-
tive devices. NEVER UNPACK,
TOUCH OR HANDLE ANY PCB
WITHOUT WEARING A
GROUNDING (EARTHING)
STRAP TO MINIMIZE YOUR
STATIC DISCHARGE.
Instruction:
1. Disassemble the instrument by performing
steps one through twelve of the General
Disassembly Instructions.
2. Unplug the USB4 Cable from the USB
Port on the bottom of the instrument’s
Bezel (Figure 1).
3. Remove the six screws and washers that
mount the LCD Screen Mounting
Assembly (Figure 2).
For additional information or technical assistance, please
contact Advanced Instruments Hot-Line
TM
Service Center
(U.S. 1-800-225-4034, outside North America +US 1-781-
320-9000).

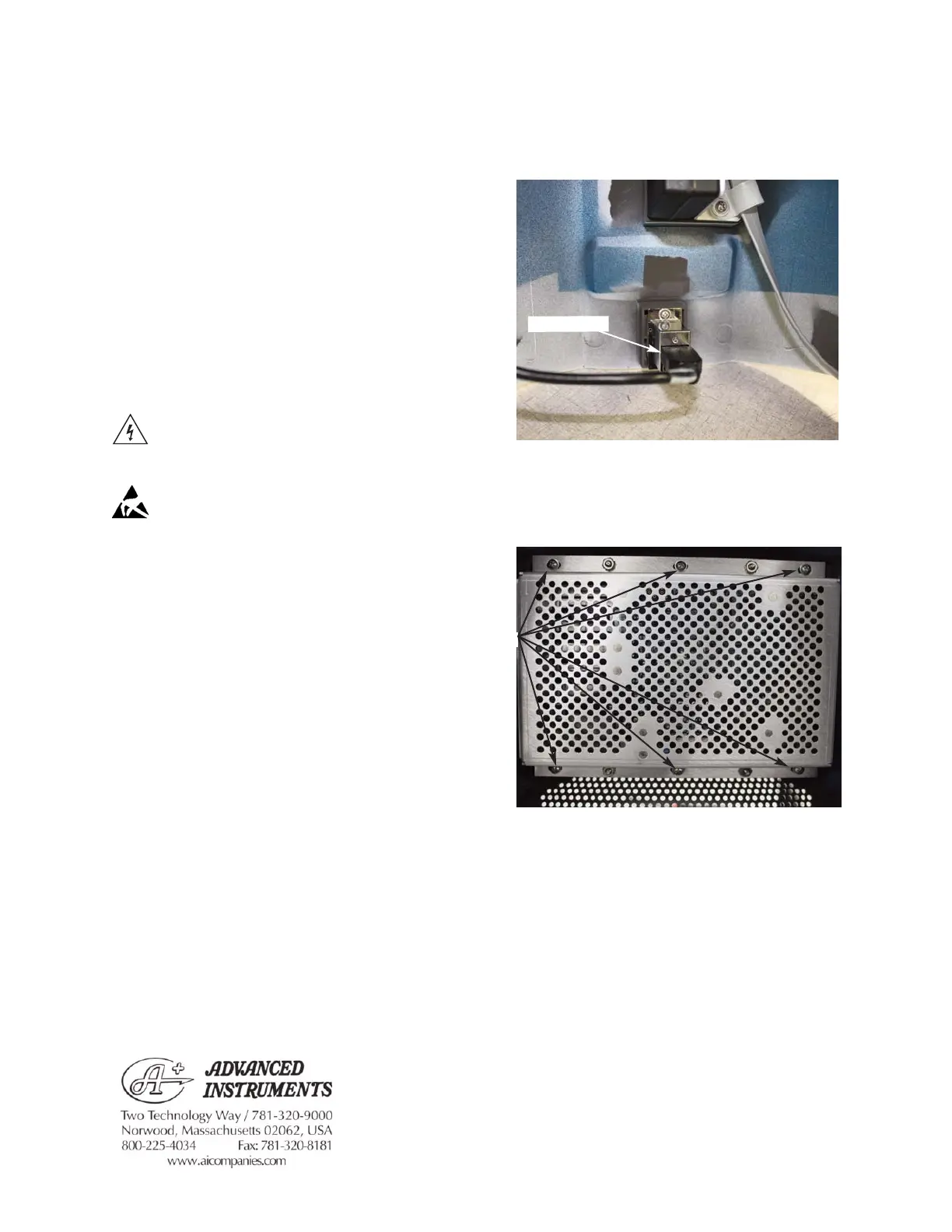

Figure 1
Figure 2
4. Mount the replacement LCD Screen
Mounting Assembly to the instrument’s
Bezel using the six screws and washers.
5. Plug the USB4 Cable into the USB Port
on the bottom of the instrument’s Bezel.
6. Reverse steps one through twelve of the
General Disassembly Instructions to re-
assemble the instrument.
USB4 Cable
Six Screws
