Advanced Instruments OsmoPRO Service Manual

Thermal Replacement Printer
708029R
Reference: Use this instruction with replace-
ment part 708029R.
Tools Required: Phillips Screwdrivers
(No. 1 & No. 2)
5/16” Nut Driver
Static Grounding Wrist
Strap.
Warning - Hazardous Voltage
Warning – Internal components may
be damaged by static electricity
CAUTION: Improper connections
may cause damage to the instrument.
CAUTION: A discharge of static elec-
tricity from contact with the human
body or other conductor may damage
system boards or static sensitive
devices. NEVER UNPACK,
TOUCH OR HANDLE ANY PCB
WITHOUT WEARING A
GROUNDING (EARTHING)
STRAP TO MINIMIZE YOUR
STATIC DISCHARGE.
Instruction:
1. Turn off the power, unplug the instrument
and remove the power cord from the
instrument.

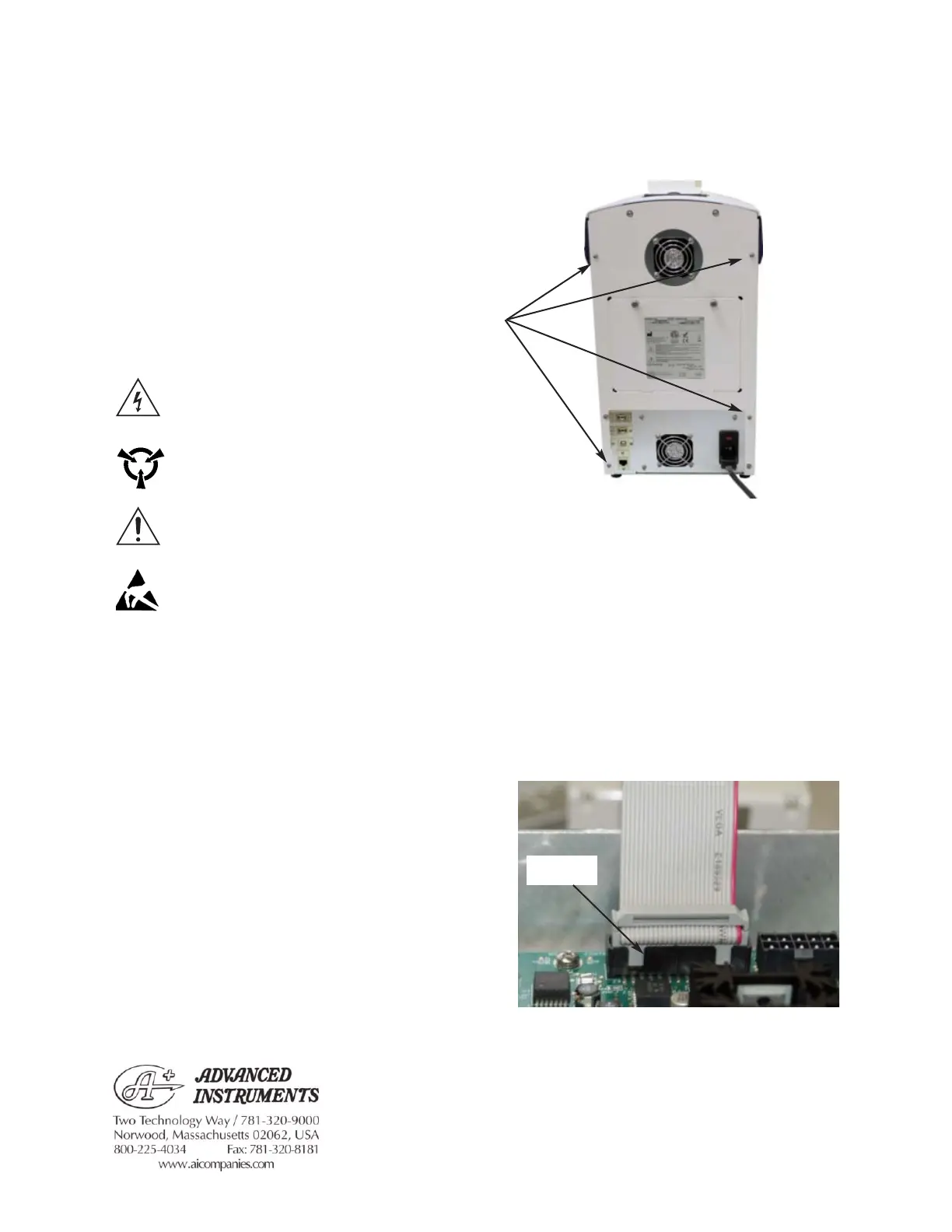

2. Remove the four screws securing the Rear
and Side Enclosure (
Figure 1).
3. Slide the Rear and Side Enclosure off of
the instrument.
4. Unplug the C2 Connector from the
Control PCB (
Figure 2), and remove the
two thumb screws and the Mounting
Bracket that secure the Printer to the Bezel
(
Figure 3). Lift the Printer out of the
instrument.
708029RPM Rev0
(OsmoPRO Service Manual)
Page 1 of 2
For additional information or technical assistance,
please contact Advanced Instruments Hot-Line
TM
Service Center (U.S. 1-800-225-4034, outside North
America +US 1-781-320-9000).
Figure 2
Four
Screws
Figure 1
C2
Connector
