Advanced Instruments OsmoPRO Service Manual

12. Disconnect the Sample Well Drain Tube
from the Fitting located on the Drain
Tube Adapter. (Figure 7).
13. Remove the four socket head cap screws
and washers that mount the Sample
Cooling Assembly to the Sample Well
Mounting Block. One of the socket head
cap screws is also used to secure a Cable
Clip (
Figure 8).
14. Remove the Block Probe Cable, the
Thermo-electric Cable and the Solenoid
Cable from the two Cable Clamps.
Detach the Cable Clip from the Thermo-
electric’s wire leads. Carefully, lift the
Sample Cooling Assembly out of the
Osmometer Module Assembly (
Figure 9A
& Figure 9B
).

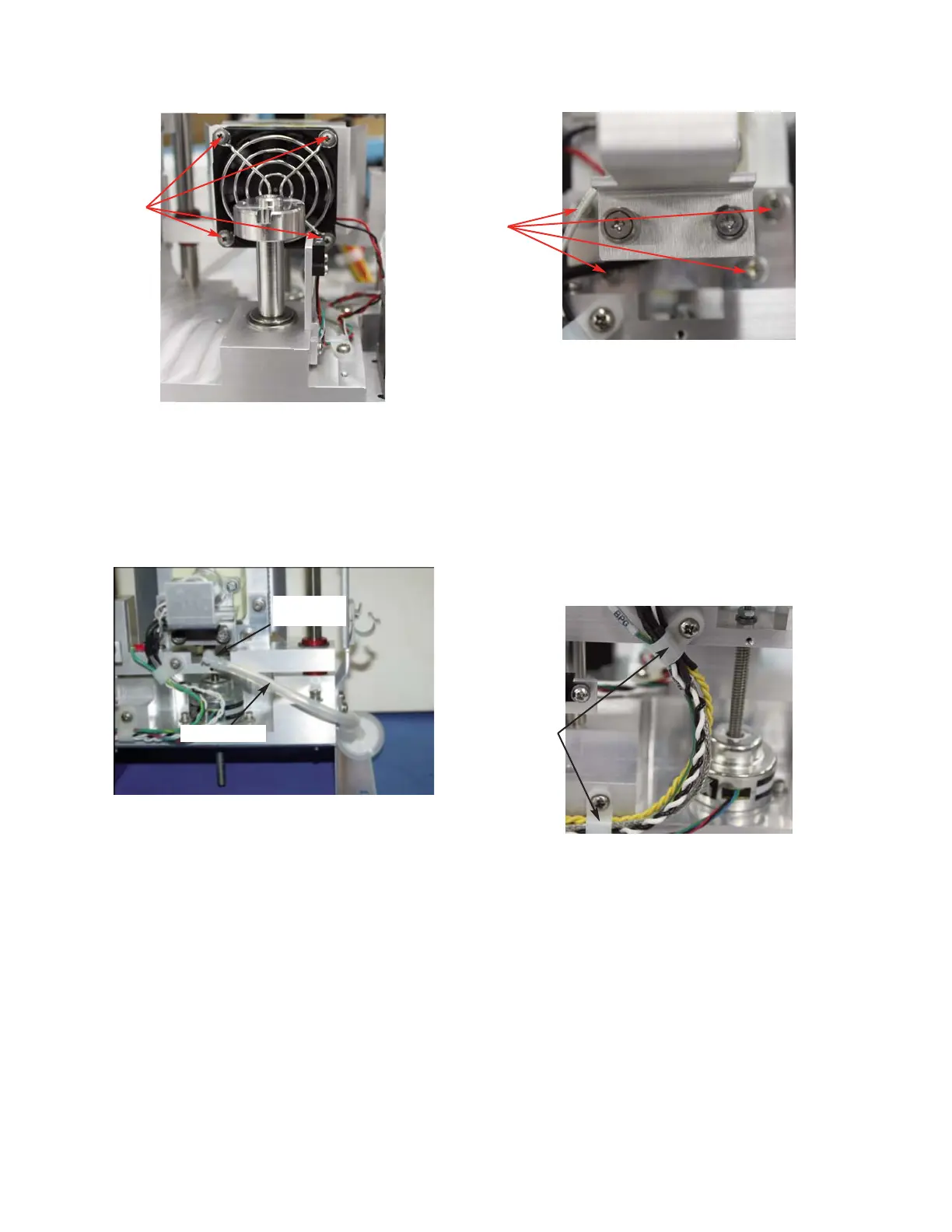

Figure 7
Figure 8
112123RPM Rev0
(OsmoPRO Service Manual)
Page 3 of 6
Drain Tube
Four
Screws
Figure 9A
Figure 6
Drain Tube
Adapter
Four
Screws
Two Cable
Clamps
