Advanced Axis AX-CTL-1L User Manual

www.advancedco.com
113

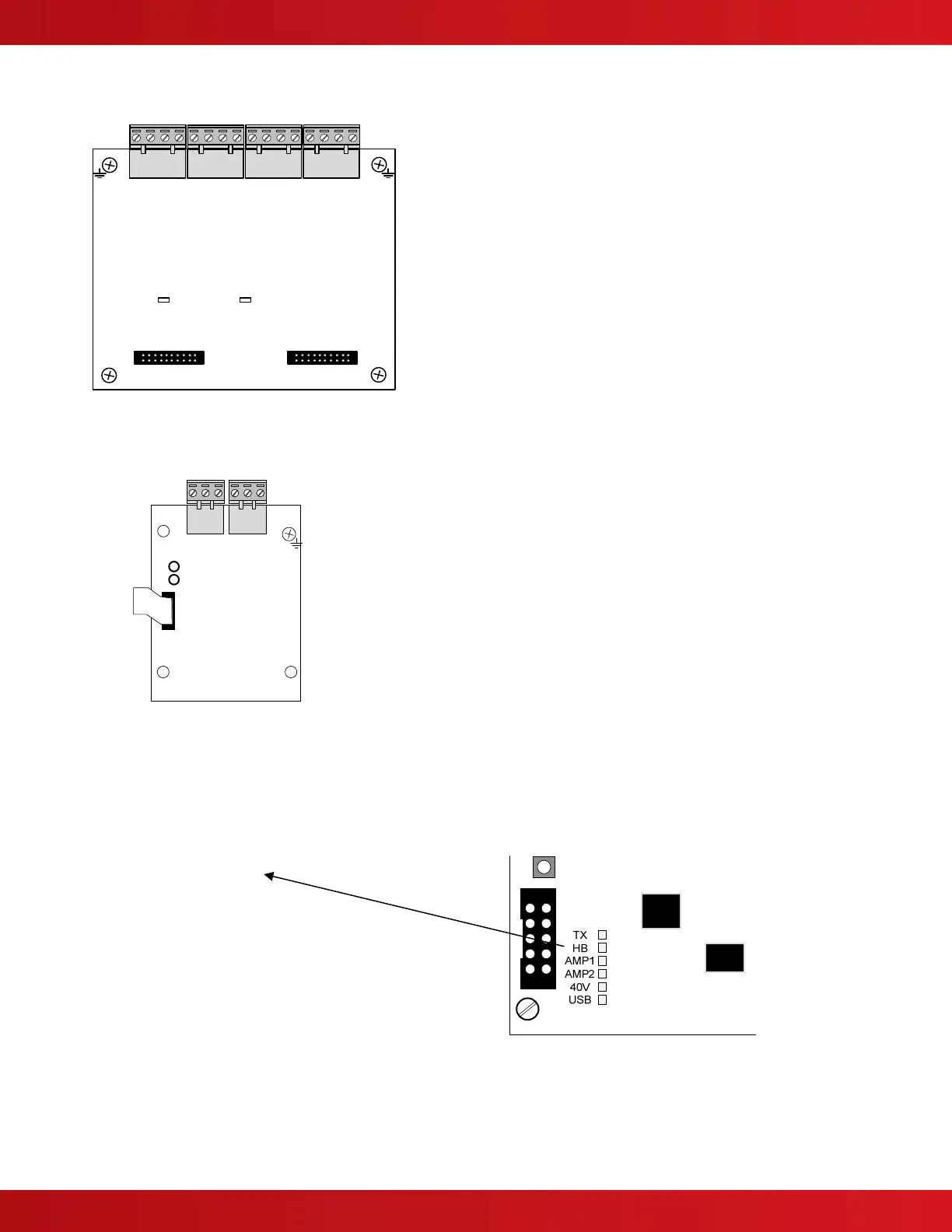

10.3.2 AX-LPD and AX-NAC Module
LED Function Description
1 Heartbeat LED – SLC #3 Flashes when communicating on
the SLC
2 Heartbeat LED – SLC #4 Flashes when communicating on
the SLC
10.3.3 AX-NET4/AX-NET7 Network Module
LED Function Description
1 Heartbeat LED Normal: Flashes at 1Hz
2 Network Comms – Receive Flashes when data received from
network
3 Network Comms – Transmit Flashes when data transmitted to
network
10.3.4 AV-AMP-80 Audio Amplifier

Transmit
Heart Beat
Amplifier 1
Amplifier 2
40 Volts
USB Usage
LOOP-1 LOOP-1 NAC-1 NAC-2
21
A
OUT
B
OUT
SCN
A
IN
B
IN
SCN
2
1
