3.2 Inner Door Assembly and Installation
The Axis
AX
Intelligent Fire Alarm Control Panel is factory assembled with a 2x2 inner door (AX-01-ID1).
Note: Inner and outer doors are mounted to the back box with AX-HPINs.
The Axis
AX
Intelligent Fire Alarm Control Panel inner door supports one (1) double aperture module and two (2)
optional single aperture modules. The inner door is preassembled with; one AX-DSP alphanumeric graphic display,
in the double aperture location and two AX-SAPs single aperture plates, in the single aperture locations (see figure
2).
3.2.1
3.2.2 Inner Door Aperture Modules
Below is a list of inner door optional single aperture modules available for the Axis
AX
Intelligent Fire Alarm Control
Panel.
Single Aperture Modules (size; 6 ⅝”H x 5 ⅝”W):
1. AX-ASW-16 Switch/LED Module
2. AX-LED16 LED Annunciator Module, 16 Red and 16 Yellow
3. AX-LED32R LED Annunciator Module, 32 Red
4. AX-LED32Y Led Annunciator Module, 32 Yellow
5. AX-I/O-48 Switch and LED Driver
6. AX-012 Panel Strip Printer

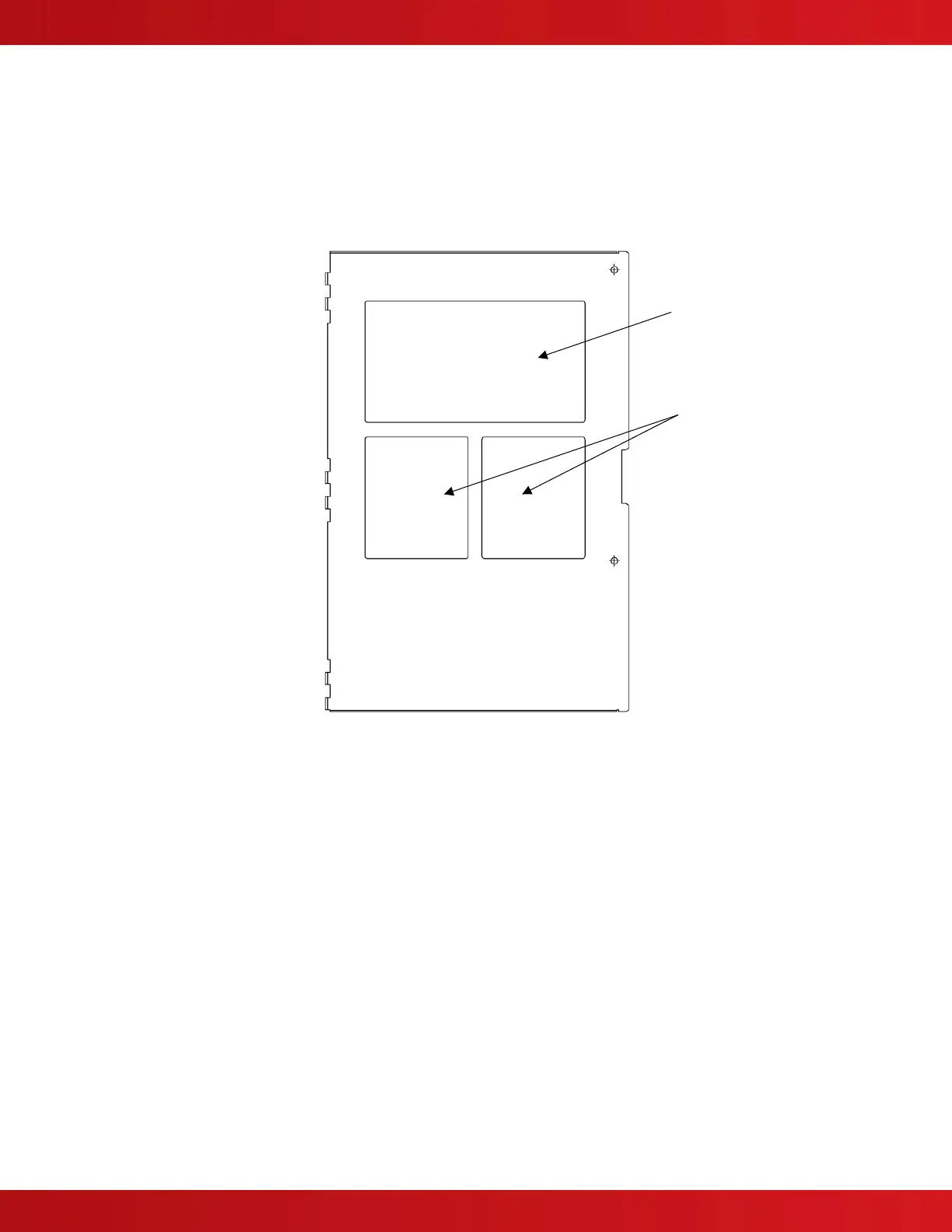

Figure 2 – AX-01-ID1 Inner Door
Double Aperture
Single Aperture
