Advanced Axis AX-CTL-1L User Manual

www.advancedco.com
44
4.4.2 PBUS (RS485) Amplifier
When configured as a PBUS (RS485) amplifier the AX-CTL-1L, AX-CTL-2 and AX-CTL-4 intelligent fire alarm
control panel’s optional amplifier would be programmed as a PBUS (RS485) floor [area] (see figure 23). Floor (area)
amplifiers can support up to sixteen (16) field programmable messages (refer to Axis
AX
AV-AMP Audio Message
Programming Manual regarding message programming) which can be tailored to meet specific installation
messaging demands; such as alarms, alerts, warnings, mass notification and other event messaging requirements.
Messages can be automatically activated (with programmable prioritization) or manually activated based on
installation needs. Identical messages played simultaneously throughout a facility via multiple AV-AMP-80 floor
(area) amplifiers can be programmed for complete synchronization, avoiding any broadcasting message confusion.
In addition, multiple synchronized messages can be broadcasted when installation demands require this
functionality (i.e.: alarm message to fire floor, floor above and below, alert message to the remainder of the facility).

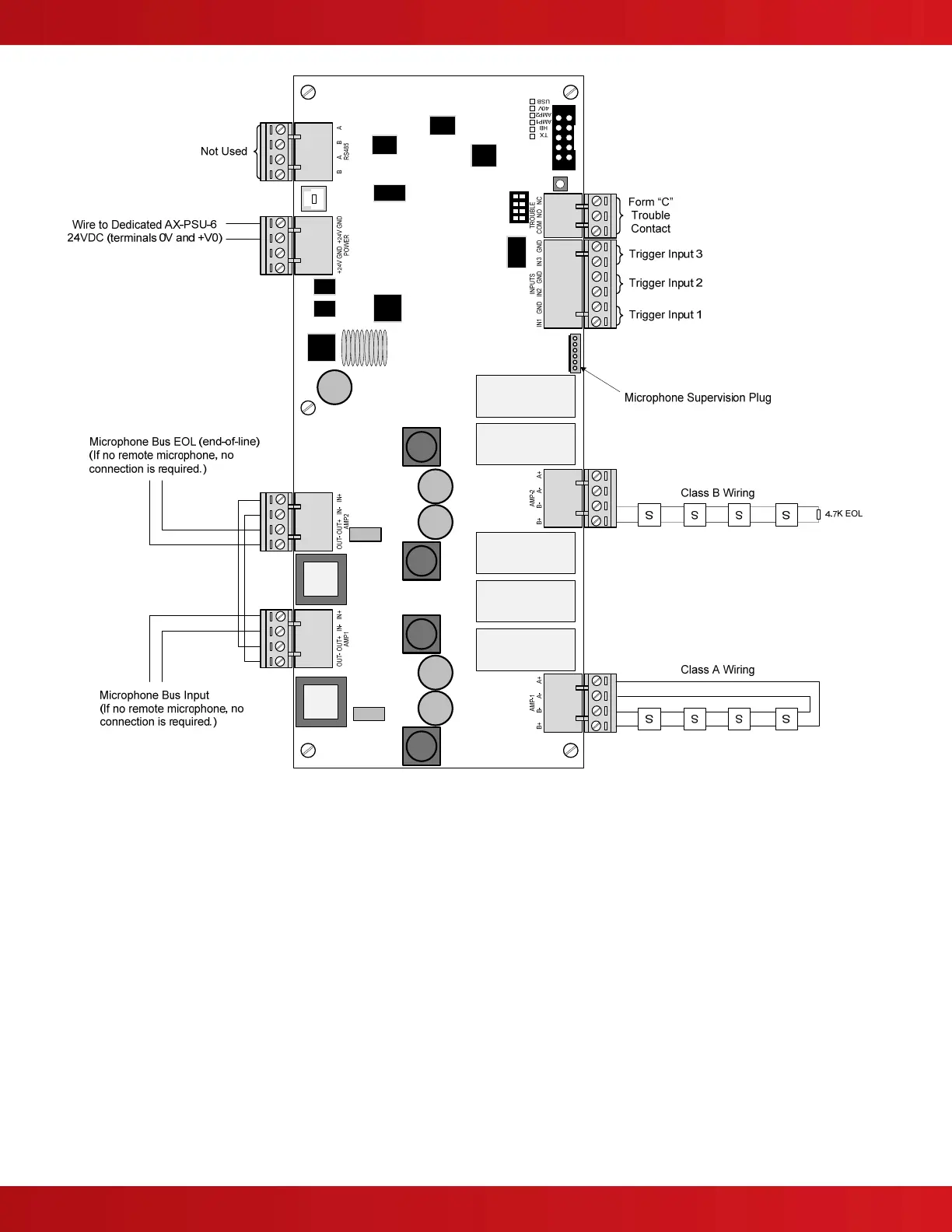

Figure 22 – Hardwired AV-AMP-80 Amplifier
