4.9.2 Relay Contact Interfacing to a Bosch D9068E DACT
When monitoring the AX-CTL-1L, AX-CTL-2 or AX-CTL-4 intelligent fire alarm control panel via simple dry contacts,
a D9068E DACT is required. The D9068E comes in its own enclosure that can be mounted adjacent to the fire
alarm control panel. In addition, the D9068E module can be removed from the enclosure and installed within the
AX-CTL-1L, AX-CTL-2 or AX-CTL-4 enclosure. Below is a wiring diagram for interfacing a D9068E relay contact
DACT.

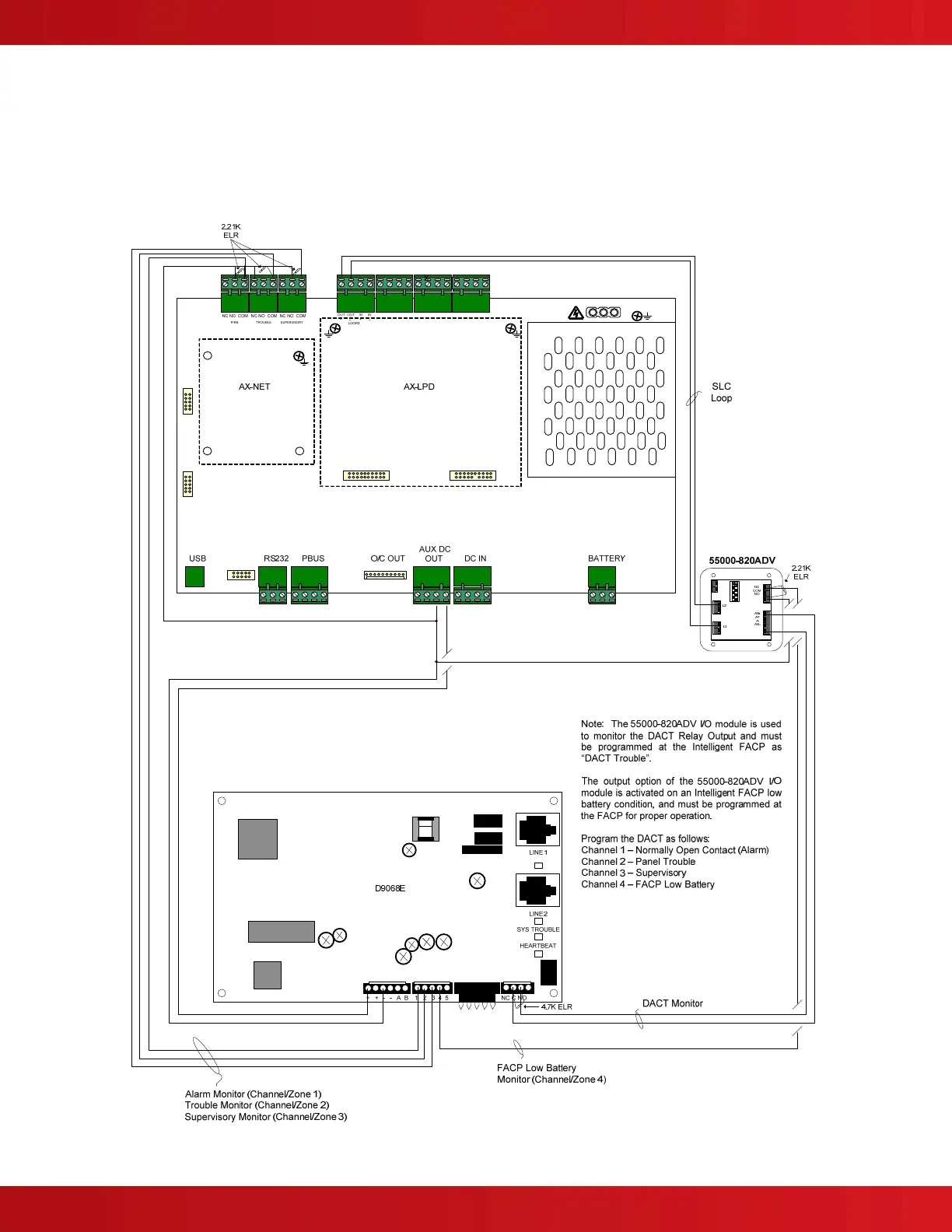

Figure 34 - D9068E Relay Contact DACT Wiring
