4.10 Interfacing to a Standalone Digital Alarm Communicator

The following is an example of the AX-CTL-1L, AX-CTL-2 or AX-CTL-4 intelligent fire alarm control panel interfaced

to a FireLite Model 411UDAC for Central Station connection (see figure 35).

Note: Though the interface to a Model 411UDAC is shown, the AX-CTL-1L, AX-CTL-2 or AX-CTL-4 intelligent

fire alarm control panel can be interfaced to any LISTED standalone DACT.

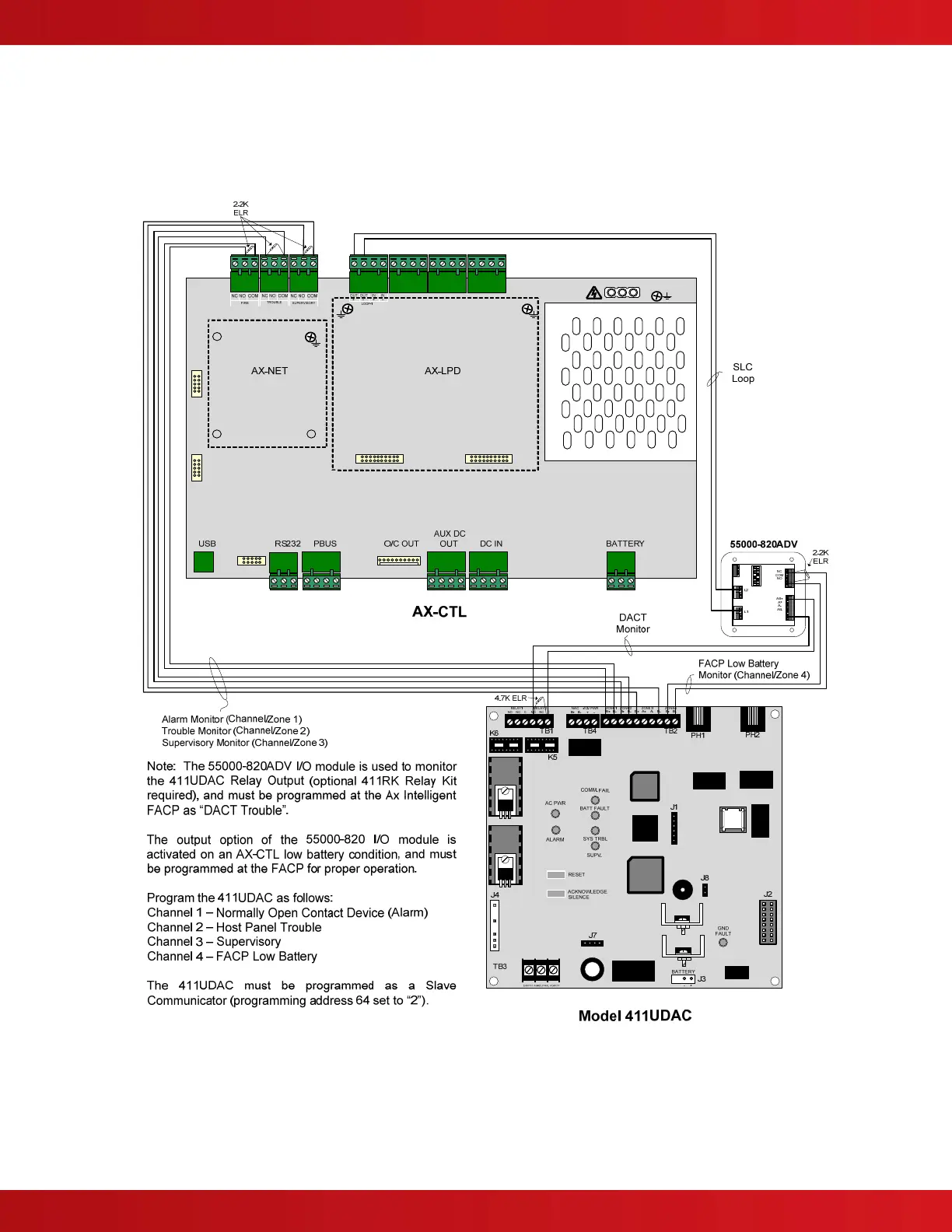

Figure 35 - Standalone DACT Interface
