4.3 AX-DSP Alphanumeric Graphical Display
The AX-DSP Alphanumeric Graphical Display is the colorized human interface for status and control of an AX-CTL-
1V, AX-CTL-2V or AX-CTL-4V (see figure 18). In addition, the AX-DSP has three (3) buttons and six (6) LEDs that
can be customized to meet specific installation requirements. Customized buttons and LEDs have easy slide-in
labels to accommodate the defining of these programmable control and status points (see figure 19).

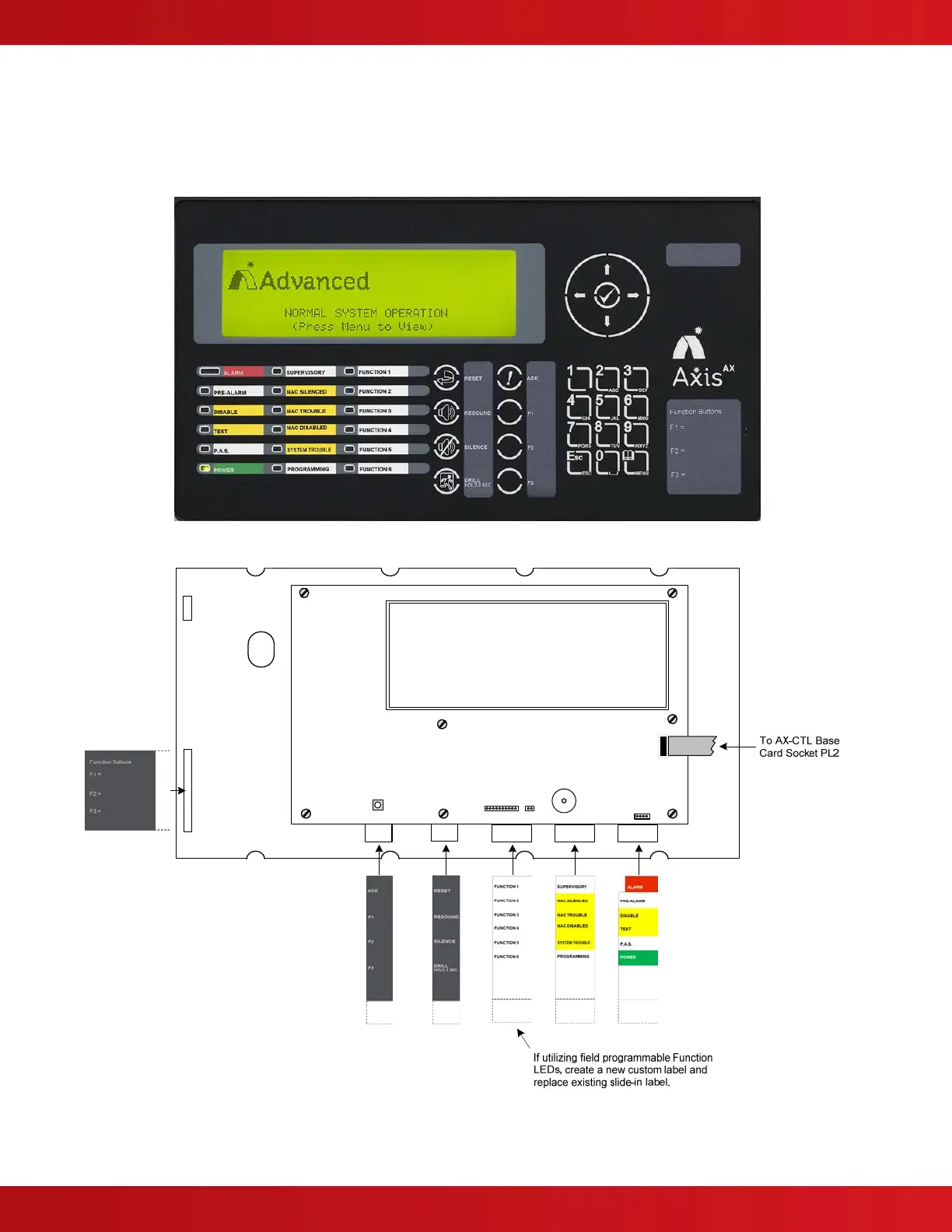

Figure 18 - AX-DSP Alphanumeric Graphic Display
Figure 19 – Slide-in AX-DSP Labels
