Mini Monitor Module - 55000-765ADV
The 55000-765ADV Mini Monitor Module can either fit inside the device being monitored, or can be placed in an
electrical box in the vicinity of the device being monitored. The Mini Monitor Module’s initiating device circuit (IDC) is
capable of being wired Class B to the monitored contact device(s). An integral eight position programming DIP
switch must be set for device addressing and priority interrupt feature. Each 55000-765ADV Mini Monitor Module
incorporates a red status LED which flashes when the device is polled. In addition, an optional remote LED output is
available for alarm status indication. Mini Monitor Modules can monitor any number of contact devices, however it is
recommended not to mix alarm, supervisory, or security contacts on the same monitoring module circuit (see figure
8).
Note: The 55000-765DV Mini Monitor Module is a DIN rail mount designed module, which allows multiples to
be mounted via a DIN rail track within a common enclosure.
Mini Switch Monitor Module - 55000-831ADV
Designed with flying leads for field wiring, the 55000-831ADV Mini Switch Monitor Module can either fit inside the
device being monitored or can be placed in an electrical box in the vicinity of the device being monitored. Based on
installation requirements, the Mini Switch Monitor Module’s initiating device circuit (IDC) is capable of being wired
Class A or B to the monitored contact device(s). An integral eight position programming DIP switch must be set for
device addressing and wiring classification definition. Each 55000-831ADV Mini Switch Monitor Module incorporates
a red status LED which flashes when the device is polled. Mini Switch Monitor Modules can monitor any number of
contact devices, however it is recommended not to mix alarm, supervisory, or security contacts on the same
monitoring module circuit (see figure 9).
Mini Priority Switch Monitor Module - 55000-830ADV
The 55000-830ADV Mini Priority Switch Monitor Module is identical to the 55000-831ADV Mini Switch Monitor Module
with the exception of a priority interrupt feature. The priority interrupt provides the fastest response possible to the
AX-CTL-1L, AX-CTL-2 or AX-CTL-4 AX-CTL base card. When the priority interrupt device is in an active state, the
monitor’s priority interrupt bypasses the normal SLC communications process, and immediately allows the device to
communicate with the AX-CTL-1L, AX-CTL-2 or AX-CTL-4 AX-CTL base card. The Mini Priority Switch Monitor
Module is utilized to monitor highly critical contact devices such as manual pull stations (see figure 9).
12345678
1 2 4 8 163264
White
Black
Violet
Red
Yell ow
Green
+
-
From/To
SLC Loop
E
O
L
Class B Wiring
47K
1/2 Watt
Class A Wiring
White
Violet
Yell ow
Green
Programming
DIP Switches

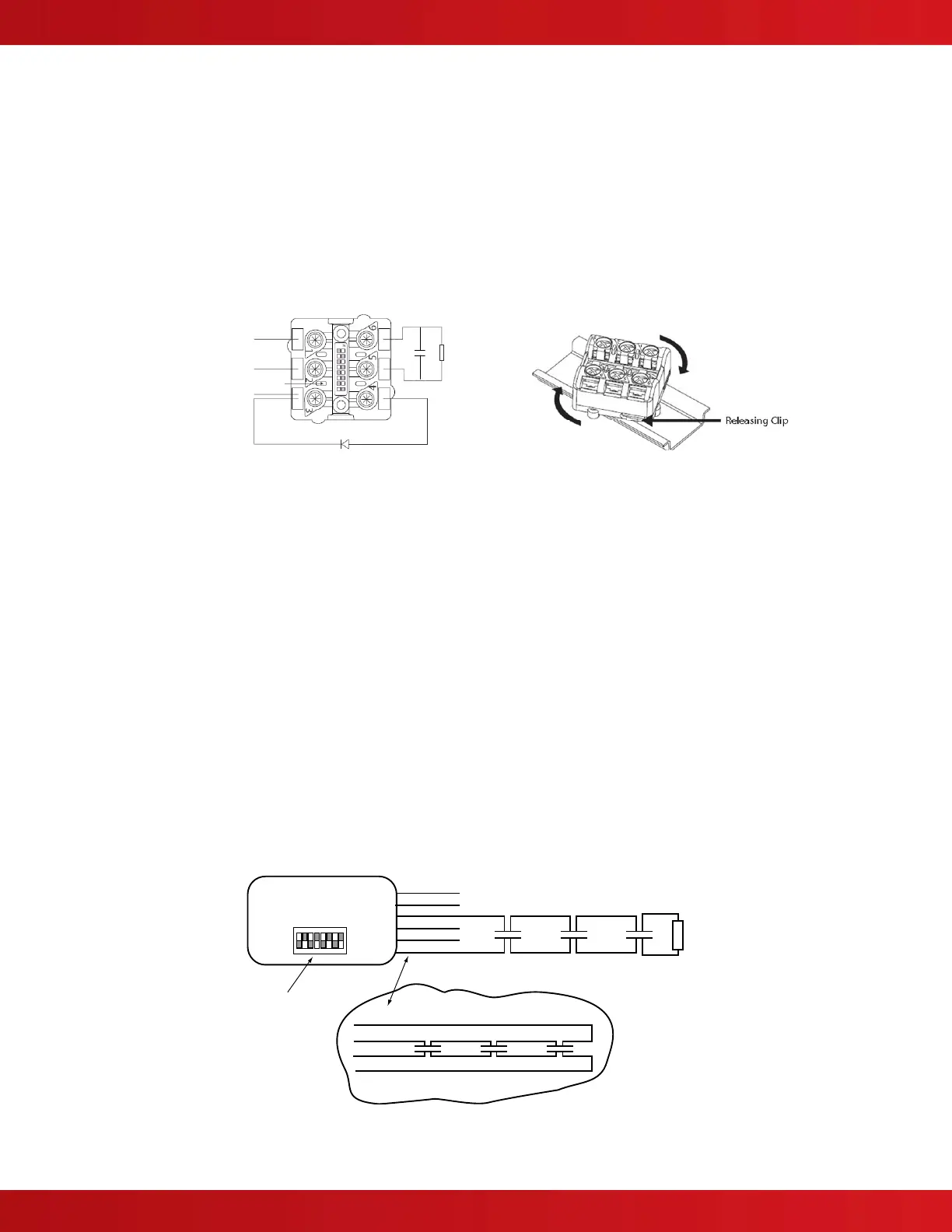

Figure 8 - 55000-765ADV Wiring & Optional Mounting
SLC Loop - In
SLC Loop +
In/Out
SLC Loop - Out
R+
Optional
Remote LED
E
O
L
(20K)
Alarm LED
Figure 9 - 55000-831ADV and 55000-830ADV Wiring
