Advantech LNC M5800 Series User Manual

Milling Machine Series
CNC operations
110
Advantech-LNC Technology Co., Ltd.

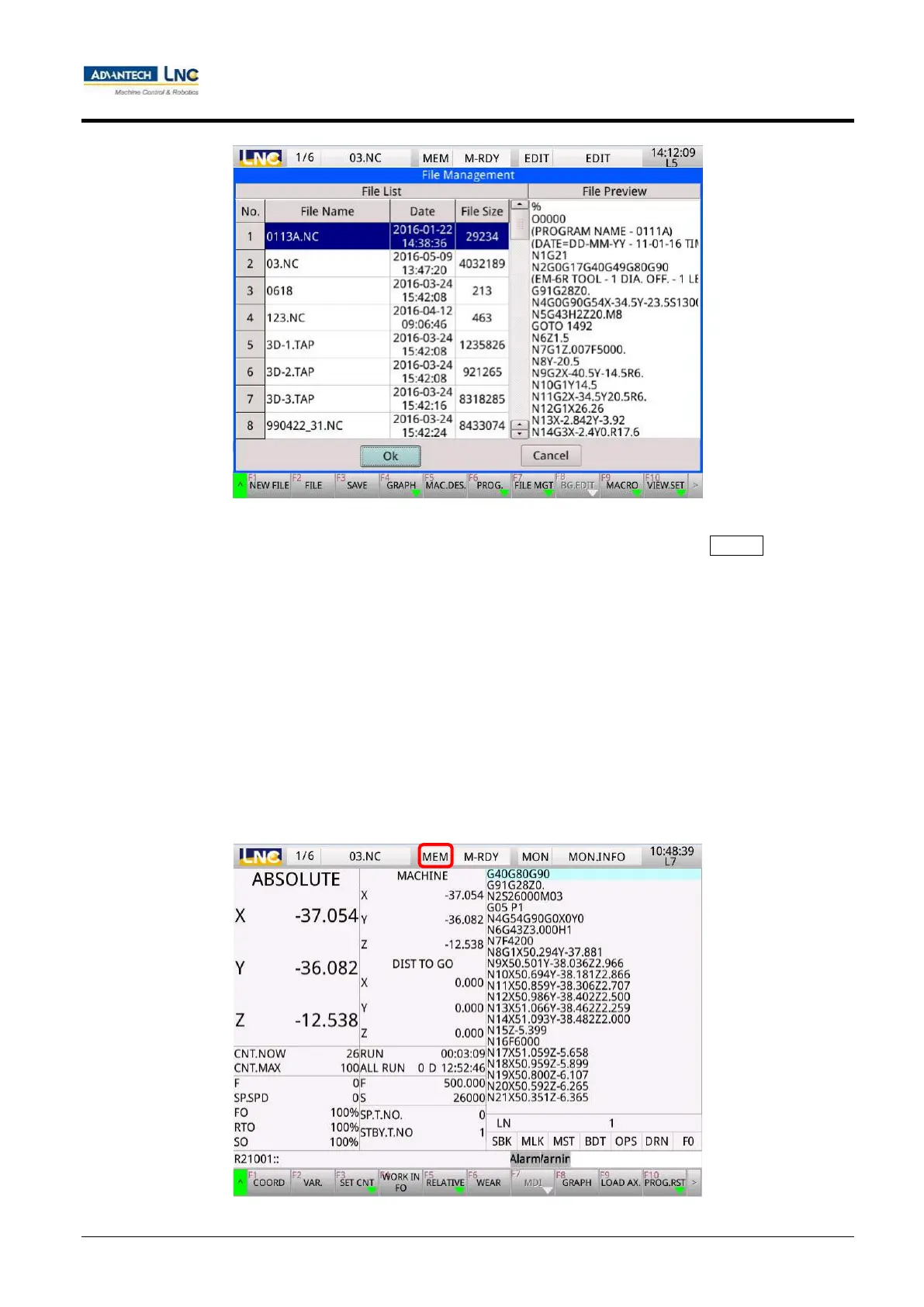

 Arrow keys on the MDI panel can be used to select the machining program, press Confirm to open the
machining program or open a new file directly for editing the machining program.
 Set the coordinate system in accordance with the machining program (please refer to the description of
coordinate system settings).
 Set the tool offset value in accordance with the machining program (please refer to the description of tool offset
settings).
 To avoid damages caused by tool and workpiece colliding with each other, the <ZRN> key should be pressed to
execute the reference point return procedure for the Z axis.
 Press the <MEM> key after the reference point return procedure is completed in order to switch the system to
memory mode (as shown in the figure below), and then press the <Reset> key to return the cursor to the
starting row of the program.
