Advantech LNC M5800 Series User Manual

Milling Machine Series
CNC operations
86
Advantech-LNC Technology Co., Ltd.
1.7.5 Hardware contact
Description of the hardware contact function:
 Users can use this function to examine the I/O signal status of hardware connected externally to the controller.
Instructions for using hardware contact:

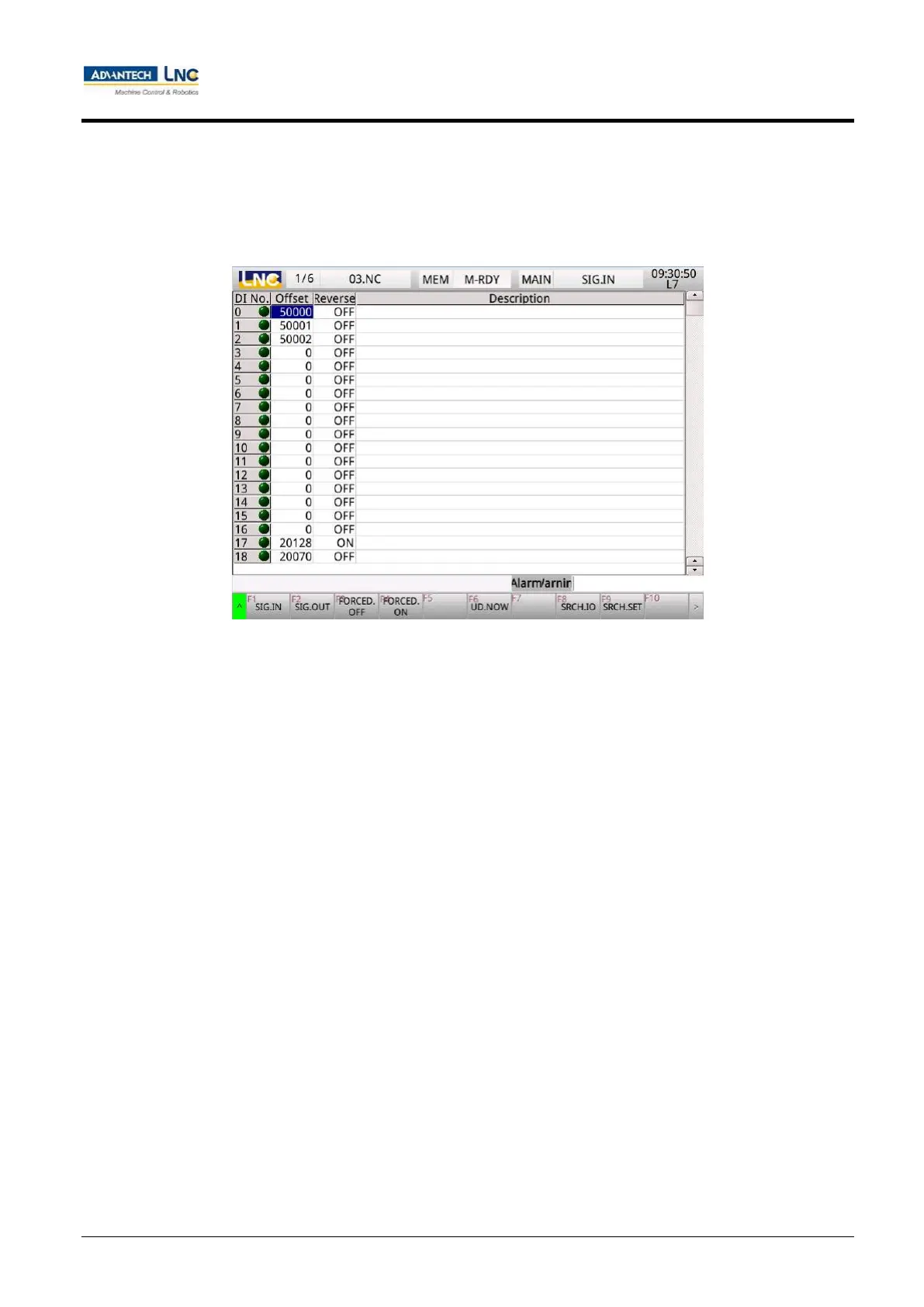

 After using the <MAINTE> key on the MDI panel to switch to maintenance group, the 【Hardware contact】 key
can be pressed to access the hardware contacts page.
 【Signal input】: examine the status of signal input at point I.
 【Signal output】: examine the status of signal output at point O.
 【Force close】: forcibly set the I/O point signal status to close, and then press 【Update now】 after the setting
is completed.
 【Force open】: forcibly set the I/O point signal status to open, and then press 【Update now】 after the setting
is completed.
 【Update now】: update signal status.
 【Find】: enter the parameter number you wish to find in the input area, then press the 【Find】 key to quickly
search and move the cursor to the position of that number.
