Advantech LNC M5800 Series User Manual

Milling Machine Series
CNC operations
81
Advantech-LNC Technology Co., Ltd.

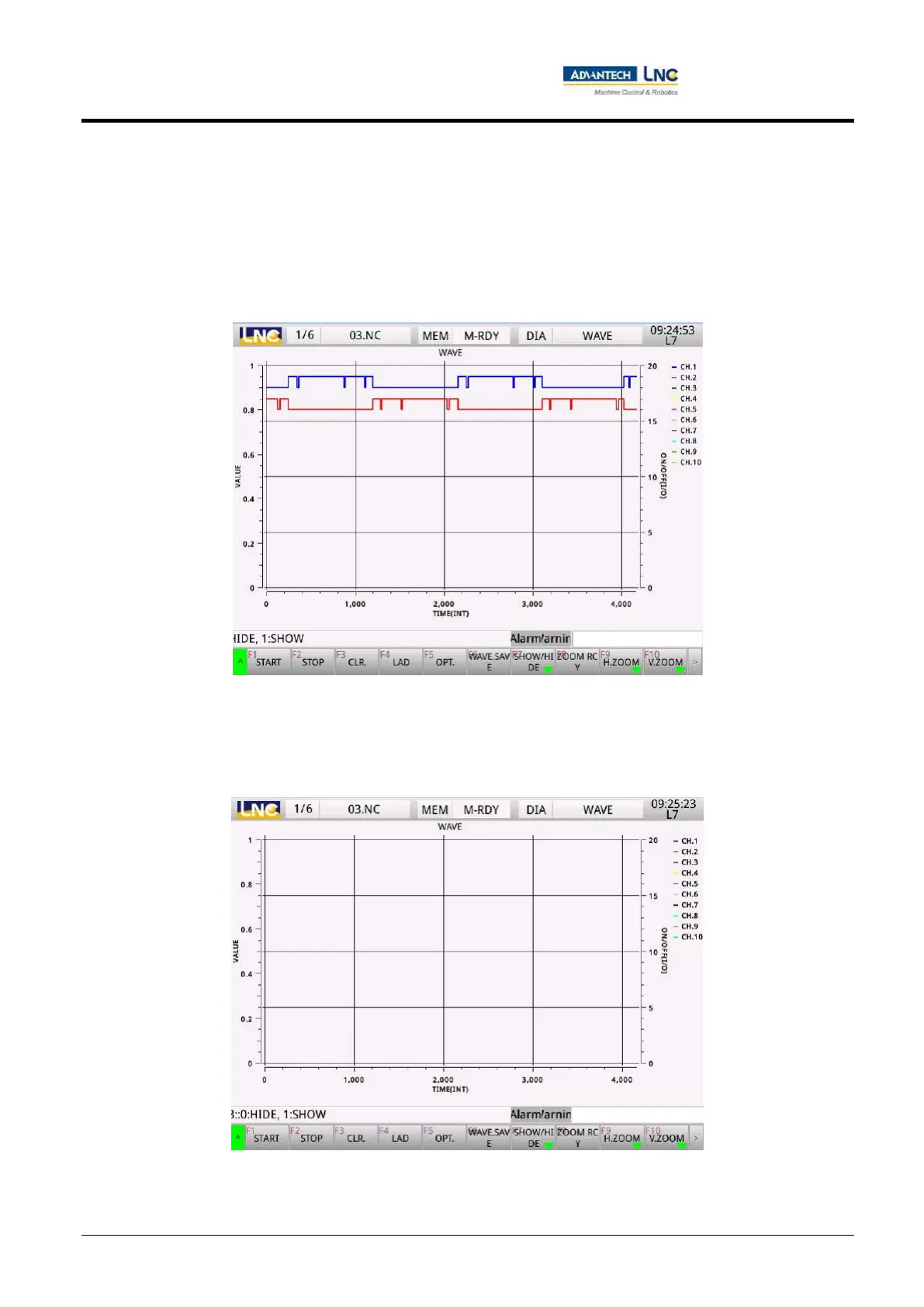

1.6.9 Waveform monitoring
Description of the waveform monitoring function:
 The waveform monitoring page is for showing the operation wave patterns of contacts I, O, C, S, A, R, TM, CT
corresponding to the machine. This page is only for designers, system maintenance personnel, and users to
make inquiries and browse.
Instructions for using waveform monitoring:
 After using the <DGNOS> key on the MDI panel to switch to diagnosis group, the 【 > 】 key can be pressed,
followed by pressing the 【Waveform monitoring】 key to access the waveform monitoring page.
 For detailed instructions, please refer to section 1.8 for instructions on the Waveform Monitoring Function
