1.5 Compensation group (OFFSET)
1.5.1 Coordinate system
Description of coordinate system functions:
 The controller provides users with 6 sets of workpiece coordinate systems including G54, G55, G56, G57, G58,
and G59, as well as 100 sets of extended workpiece coordinate systems from G54P1 to G54P100. Left and right
arrow keys on the MDI panel can be used to select the workpiece coordinate system to be set up.
Instructions for using the coordinate system:

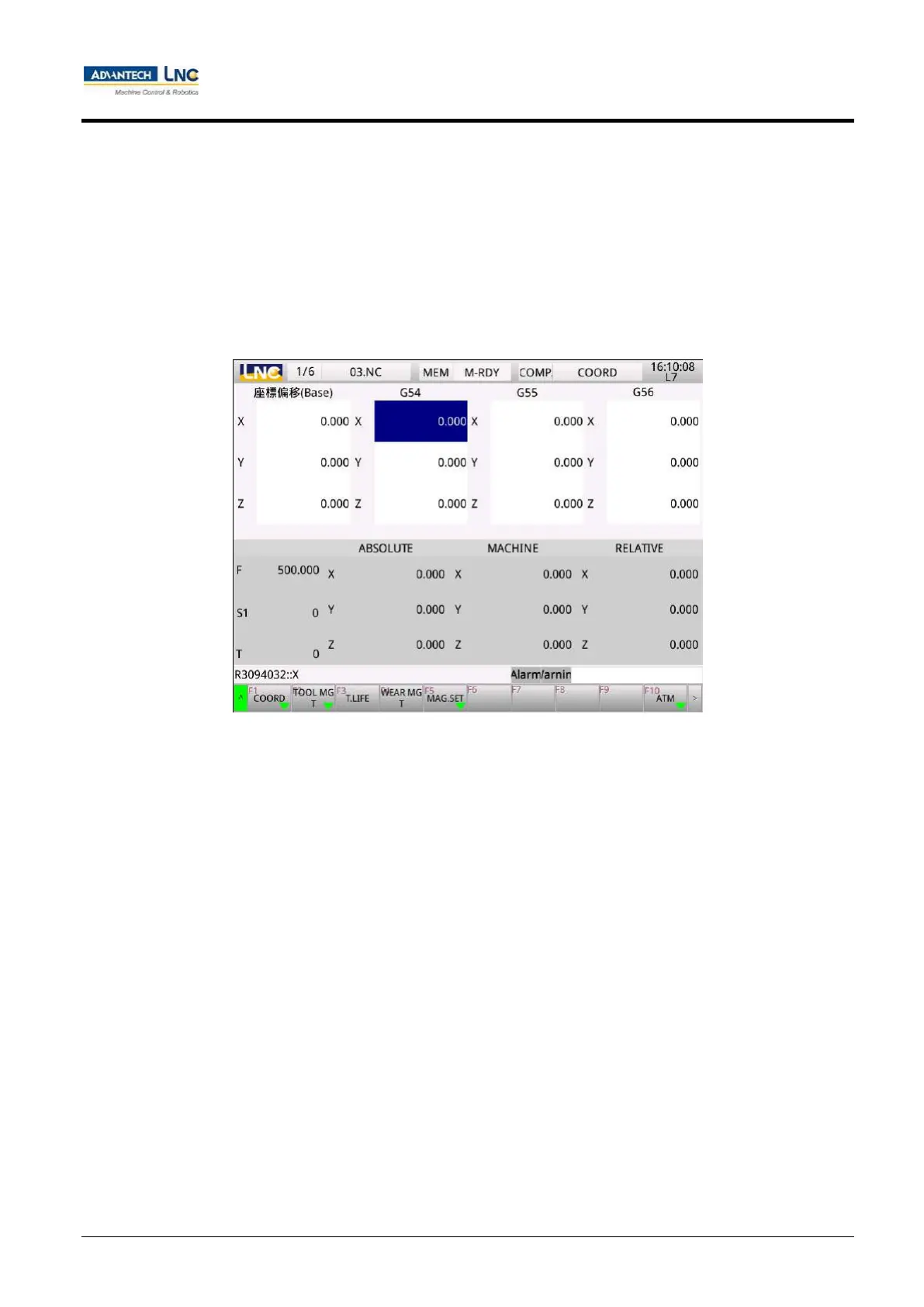

 Users can use the <OFFSET> key on the MDI panel to switch to compensation group before pressing the
【Coordinate system】 key to access the coordinate system page.
 After entering the coordinate system, the cursor should be moved to the coordinate system to be set up such as
G54 to G59, G54P1 to G54P100. The controller provides three options for users to quickly set up coordinate
values in accordance with the properties of the workpiece.
