Milling Machine Series
CNC operations
57
Advantech-LNC Technology Co., Ltd.

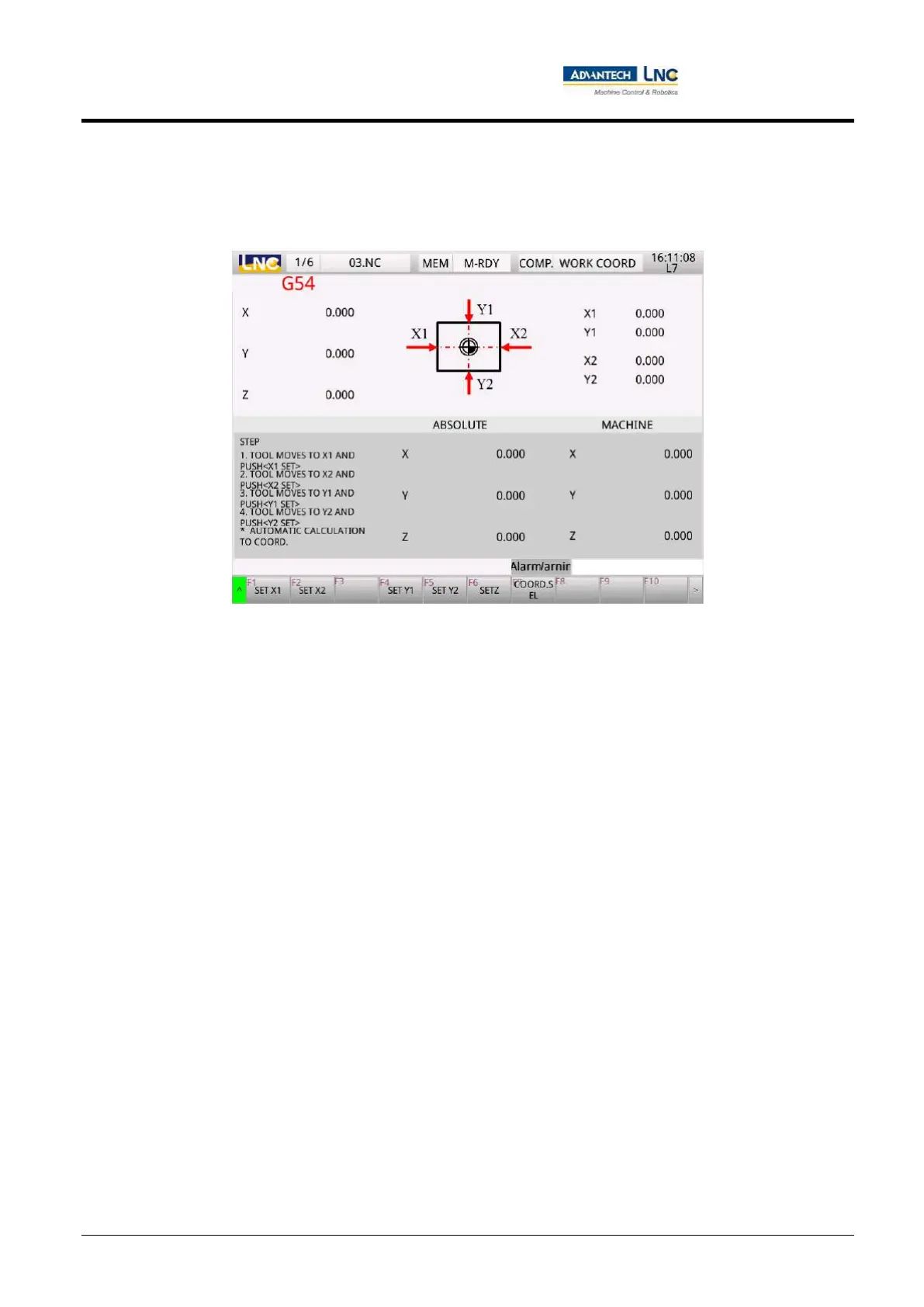

1. Center of a rectangle
It is for users to set up the center point of a rectangular shaped workpiece.
Press the Rectangle key to enter the rectangular workpiece coordinate system settings screen, press
Coordinate selection to enter the coordinate system you wish to set up, and then allow the measuring
instrument to come in contact with the workpiece in accordance with the drawing showing the center point of a
rectangle. Set X1 should be pressed after contacting X1, Set X2 should be pressed after contacting X2,
Set Y1 should be pressed after contacting Y1, Set Y2 should be pressed after contacting Y2, and the
controller will automatically derive the center of a rectangular workpiece.
2. Center of a circle
It is for users to set up the center point of a circular shaped workpiece.
