Advantech LNC M5800 Series User Manual

Milling Machine Series
CNC operations
153
Advantech-LNC Technology Co., Ltd.

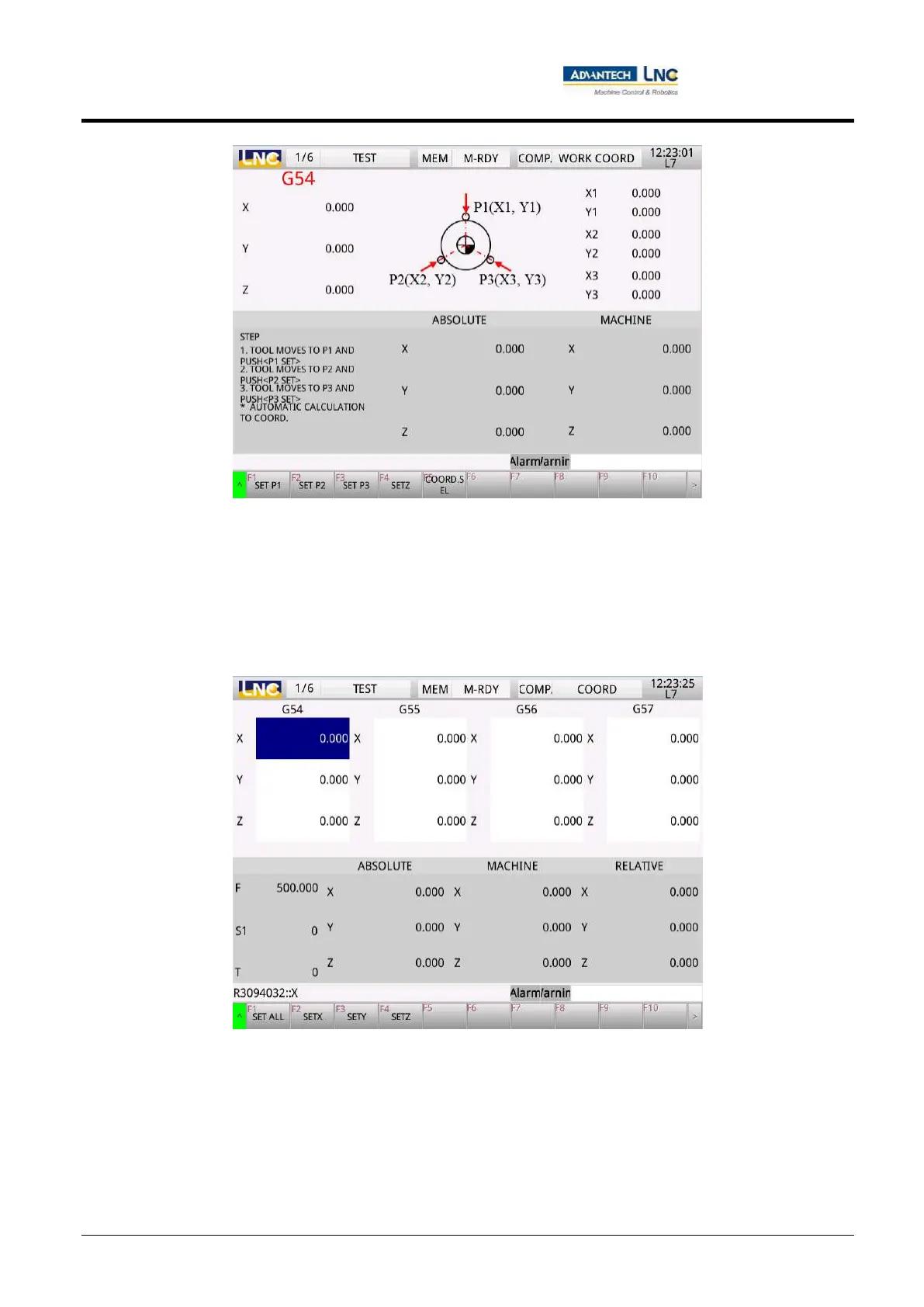

 In addition to the two methods described above, the 【Guided input】 key can also be pressed to manually
position the reference point on the X axis of the workpiece before pressing the 【Set X】 key to directly set the X
axis coordinate of coordinate system G54. The setting method for the X axis can be applied to other axes as well.
The reference point of each axis of the workpiece can also be manually positioned before pressing the 【Set all】
key to directly set the coordinates of all axes in coordinate system G54.
1.8.14 Parameter settings
 Different parameters need to be set up in accordance with different user levels.
 By pressing the <MAINTE> key on the MDI panel, the controller provides two parameter setting functions to set
"user parameters" and "system parameters".
