Milling Machine Series
CNC operations
1
Advantech-LNC Technology Co., Ltd.
1 CNC operations
1.1 Type of operation device
The operation panel can be divided into the LCD liquid crystal display, MDI data input panel, and OP operation panel. The
main function of the MDI data input panel is to allow users to edit or modify a program and set numerical values. The OP
operation panel is a control panel for meeting all machining requirements; it is equipped with various switches and
function keys, and a pulse generator (hand wheel), etc. The operation panel can have different designs based on different
machines, but this system contains a set of standard panels which can be selected by the machine manufacturer.

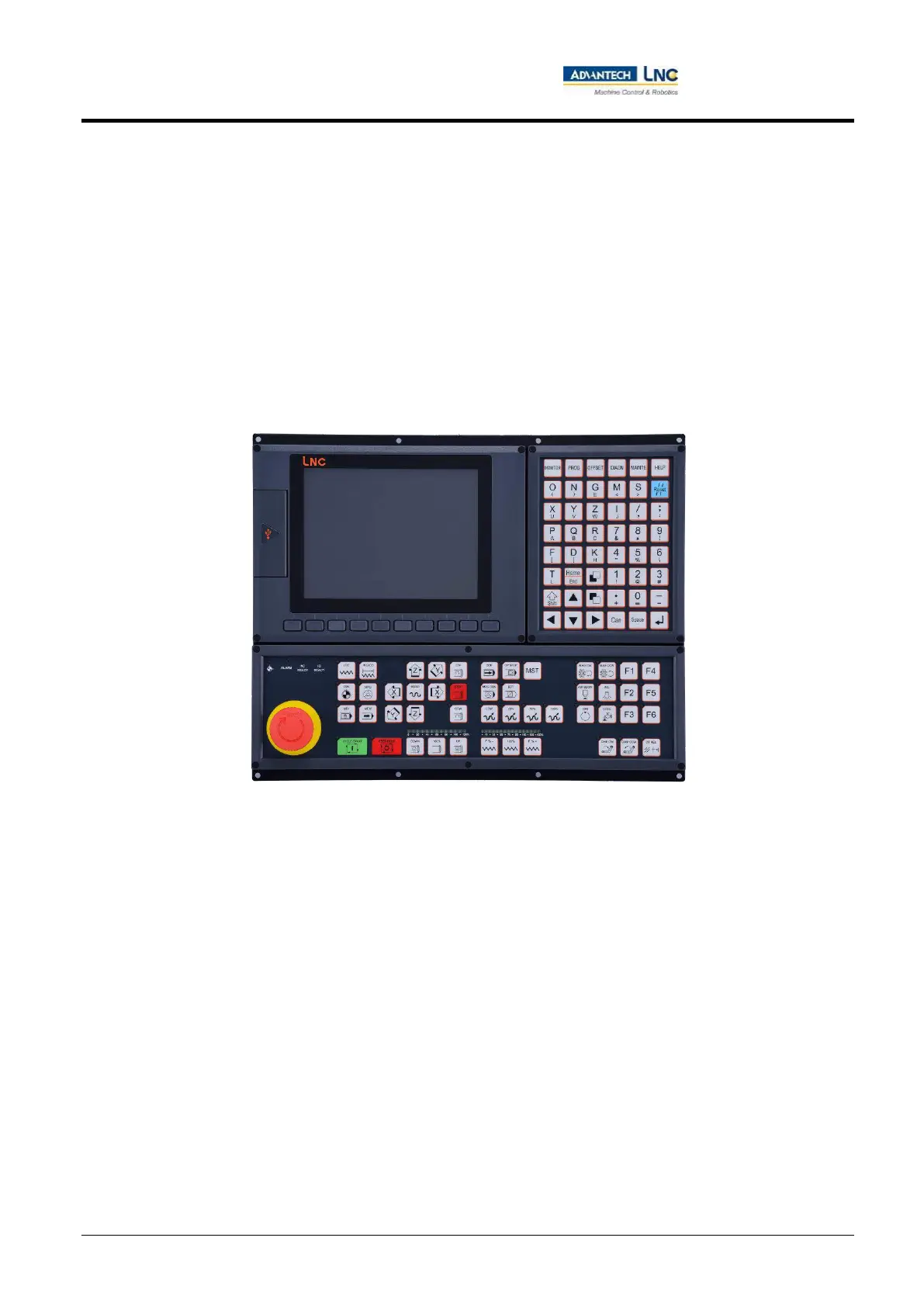

1.1.1 M5800 series
Keys shown on the LCD liquid crystal display:
Function keys: There are 10 horizontal keys right below the LCD. They allow users to select functions which are
shown in the lower part of the screen.
