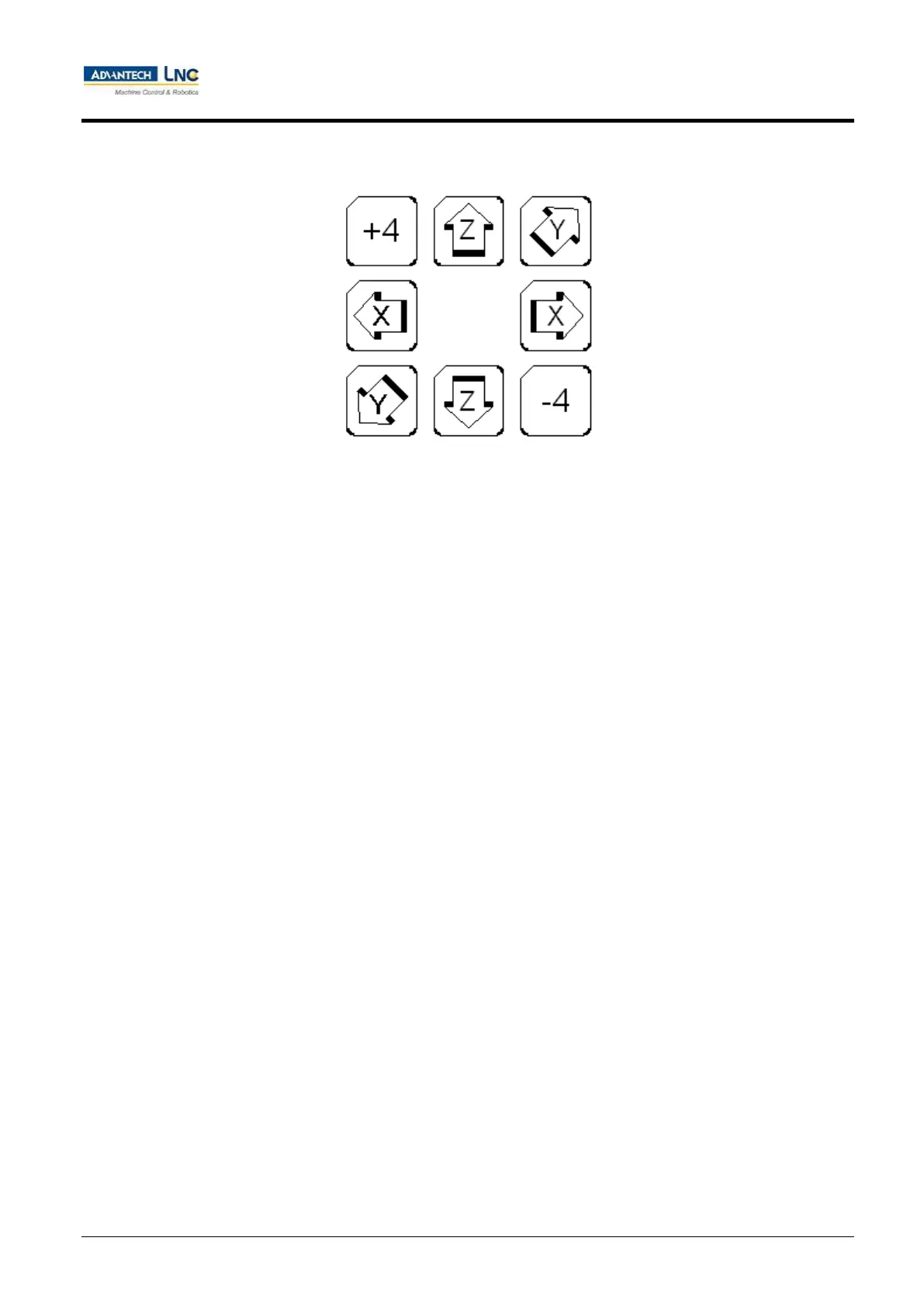

2.3 Axis selection (AXIS SELECTION)
These keys can be used for assigning the direction of axial movement under manual continuous feeding (JOG) mode and
reference point return mode (ZRN).
For example:
By pressing and holding +X under manual continuous feeding (JOG) mode, the X axis will move towards the positive
direction, and it will stop after the key is released. The same operating method can be applied to movement along other
axes.
By pressing +X once under the reference point return (ZRN) mode, the X axis will automatically return to the reference
point along the positive direction. The same operating method can be applied to movement along other axes.
