1.8.17 Waveform monitoring function

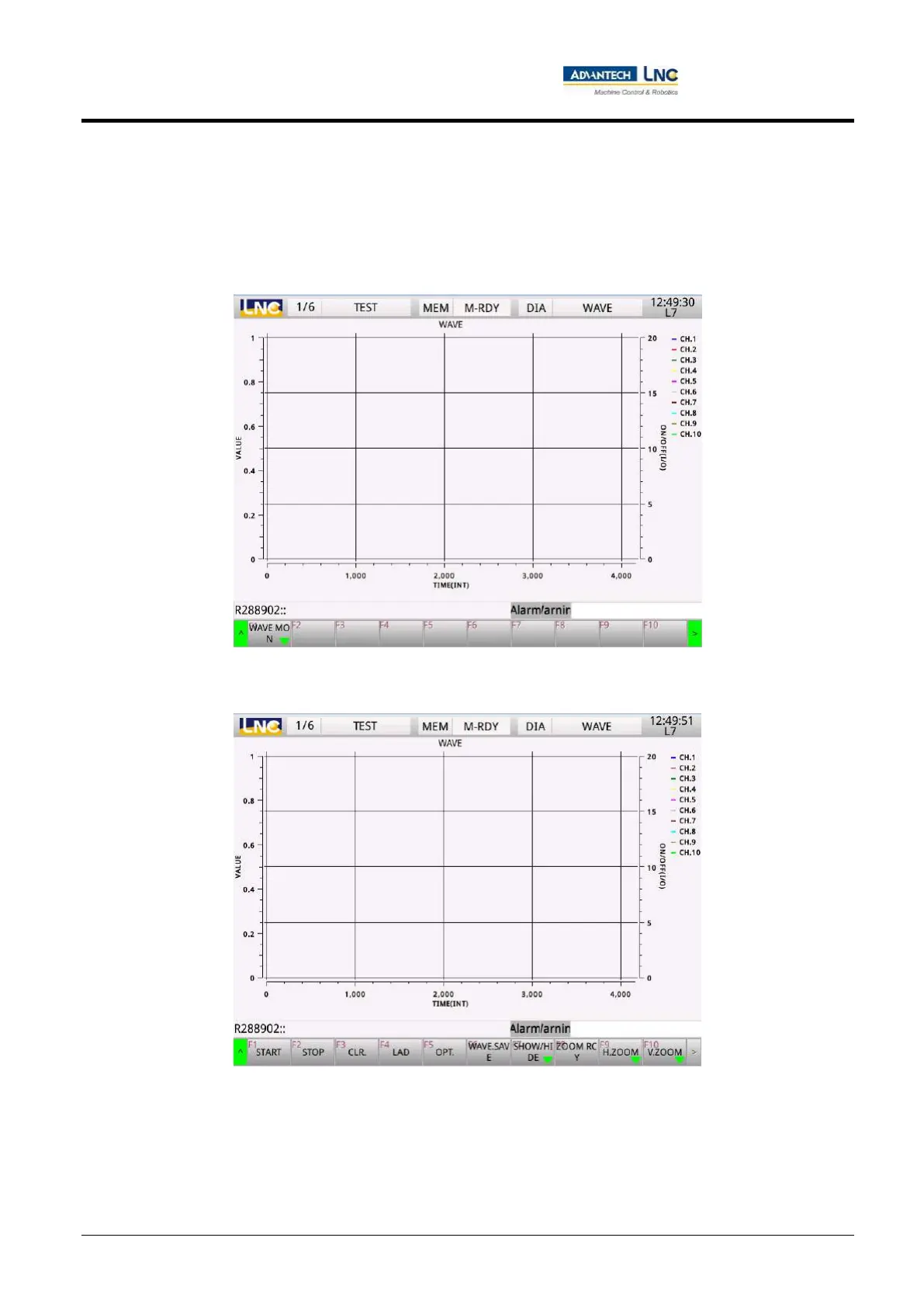

 Press the <DGNOS> key on the controller's MDI panel to enter diagnosis group, press the 【 > 】 key followed
by 【Waveform monitoring】 to enter the waveform monitoring page from the human machine page as shown
in the figure below.
