Milling Machine Series
Control panel operations
176
Advantech-LNC Technology Co., Ltd.
2 Control panel operations
The control panel is designed by the machine maker based on different requirements. Only keys involving the most
frequently used operations and functions are described here.

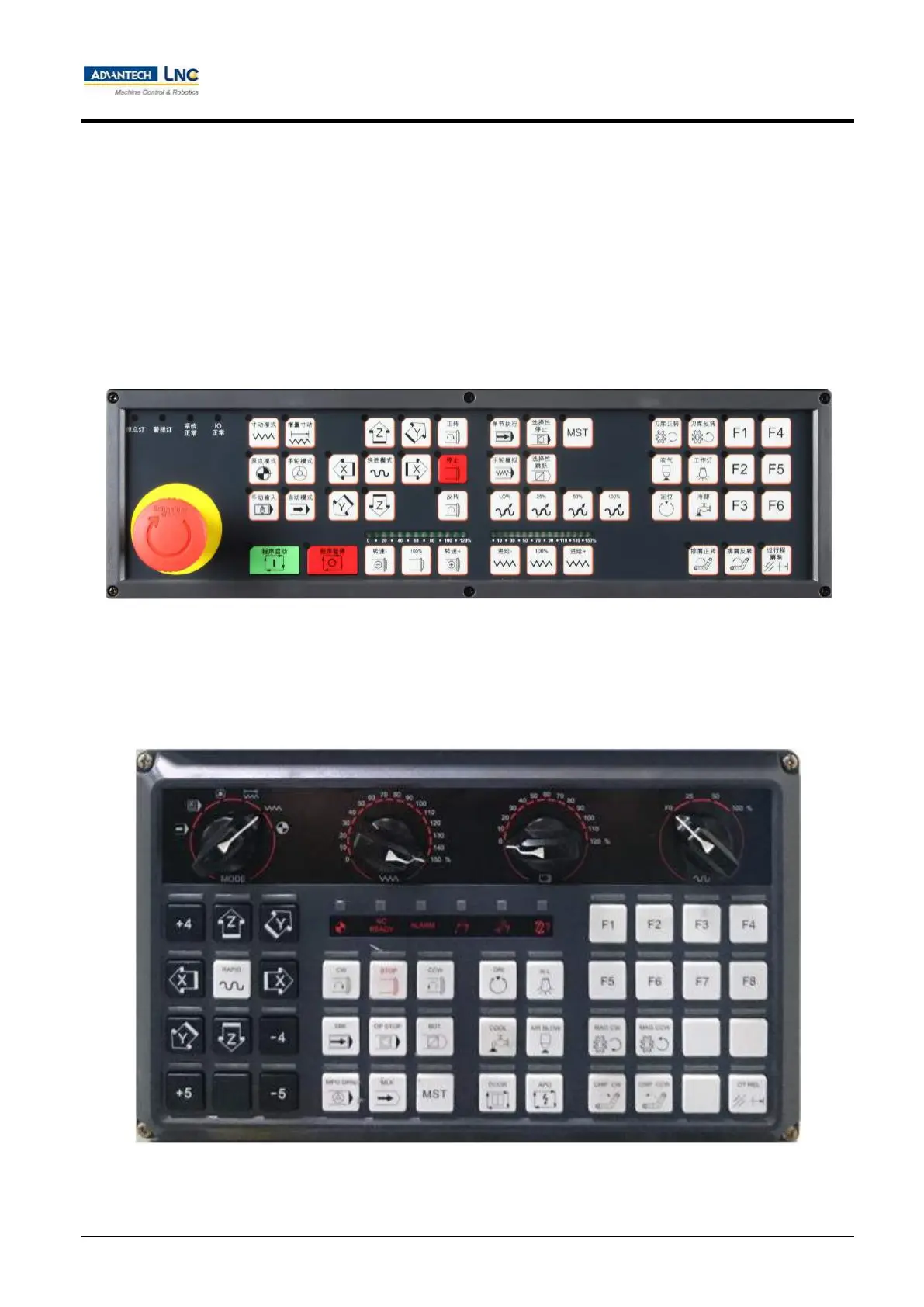

2.1 Operating panel
2.1.1 M5800 series
2.1.2 M6800 series
Based on function, it can be divided into the first operating panel and the second operating panel:
The first operating panel
