Milling Machine Series
CNC operations
32
Advantech-LNC Technology Co., Ltd.
1.3.8 MDI
Description of MDI functions:
The main function of the MDI data input panel is to allow users to edit/modify program code and set numerical
values. Users can also use this page to edit and save simple programs for machine operation.
Instructions for using MDI functions:
Users should first turn the knob on the OP panel to <MDI>, then use the MDI panel's <POS> key to switch to
monitoring group, pressing the 【MDI】 key to enter.

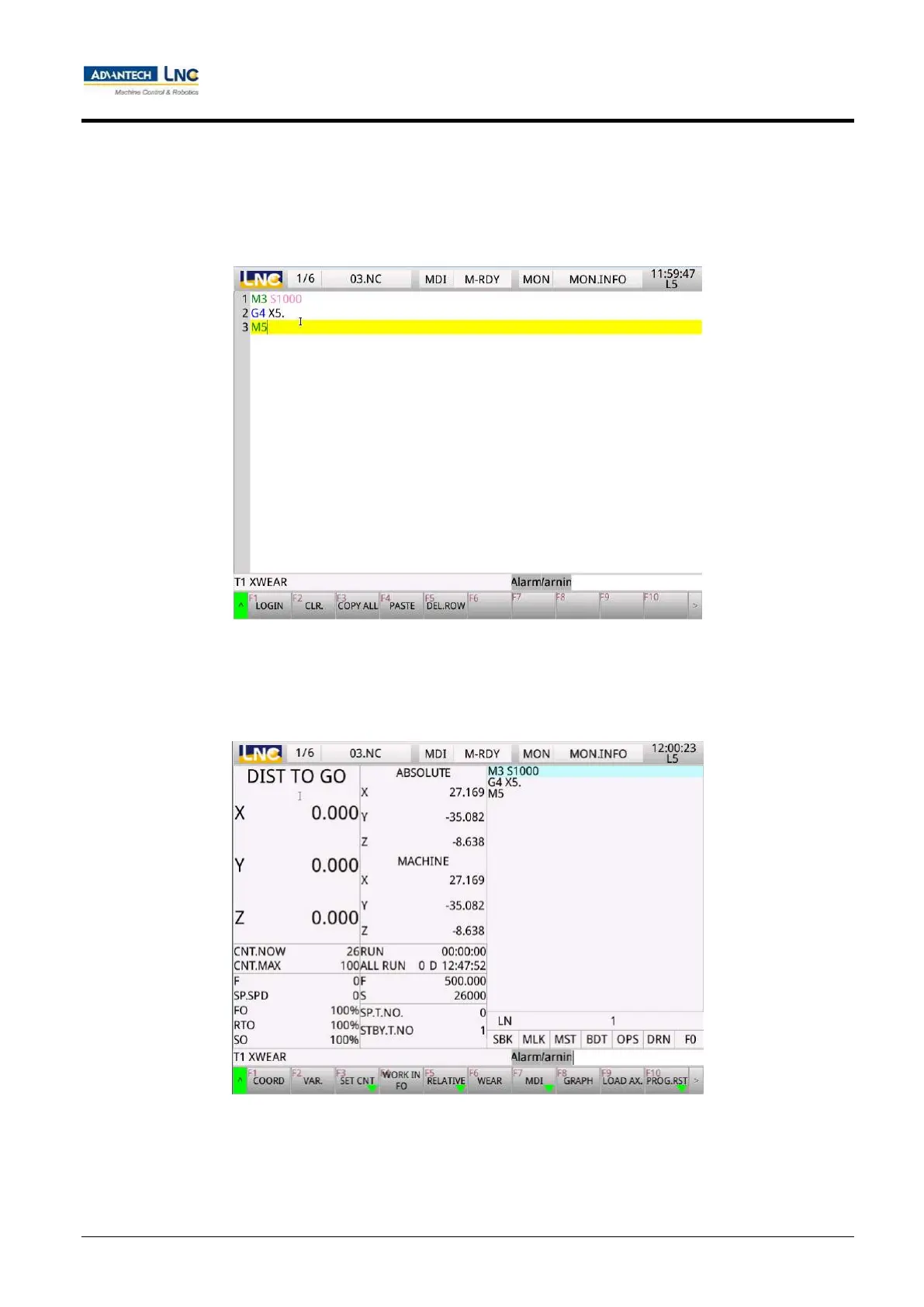

Users can key in a single action command or simpler program commands on the MDI's editing page, then press
the <Input> key to switch to the next line to continue entering commands.
