Advantech LNC M5800 Series User Manual

Milling Machine Series
CNC operations
74
Advantech-LNC Technology Co., Ltd.

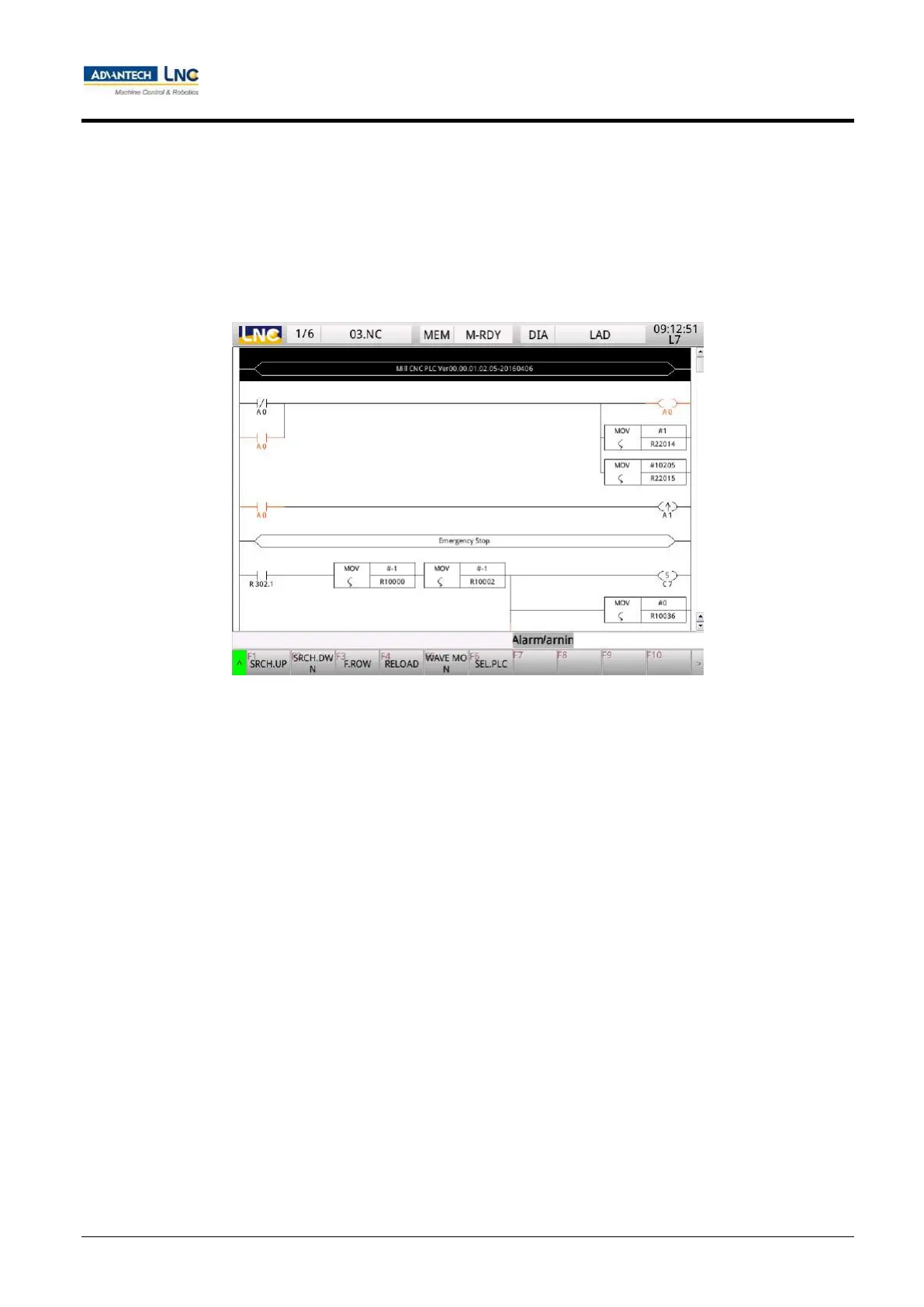

1.6.2 Ladder diagram
Description of ladder diagram functions:
 A ladder diagram is the corresponding diagram between keys on the machine and functional operations; this
page is to be used by system designers and maintenance personnel. Users can only view this page; its contents
cannot be modified.
Instructions for using the ladder diagram:
 After using the <DGNOS> key on the MDI panel to switch to diagnosis group, the 【Ladder diagram】 key can be
pressed to access the ladder diagram page.
 The device code to be found can be entered in the input area (for example: I12, A113, T1...), and the 【Search
upward】 and 【Search downward】 keys can be used to find the position screen corresponding to this code.
Press the 【First line】 key to return the cursor to the file header position.
 After a new ladder diagram file is imported, the 【Reload】 key on the human machine interface should be
pressed to update the diagram.
