Advantech LNC M5800 Series User Manual

Milling Machine Series
CNC operations
30
Advantech-LNC Technology Co., Ltd.

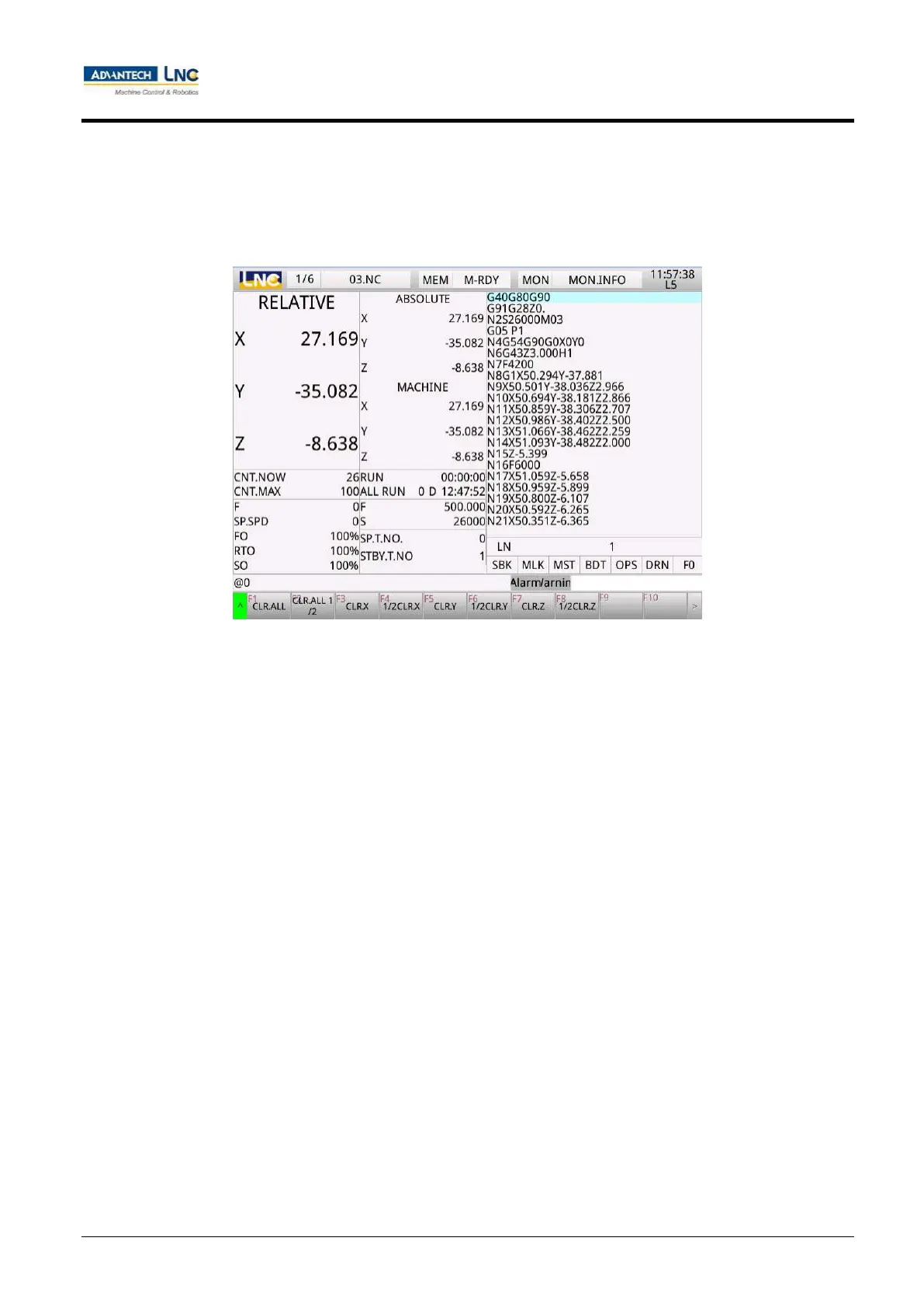

1.3.6 Relative coordinates
Description of relative coordinates:
 Relative coordinates show the distance between any user defined point and the current position, such that users
can zero relative coordinates at any time or directly enter non-zero numerical values.
Using relative coordinates:
 Users can use the <POS> key on the MDI panel to switch to monitoring group before pressing the 【Relative
coordinates】 key to show relative coordinates in the main coordinate viewing area, and to clear relative
coordinates of all axial directions or a single axial direction into 1/2 of its numerical value or 0 as needed.
