Milling Machine Series
CNC operations
58
Advantech-LNC Technology Co., Ltd.

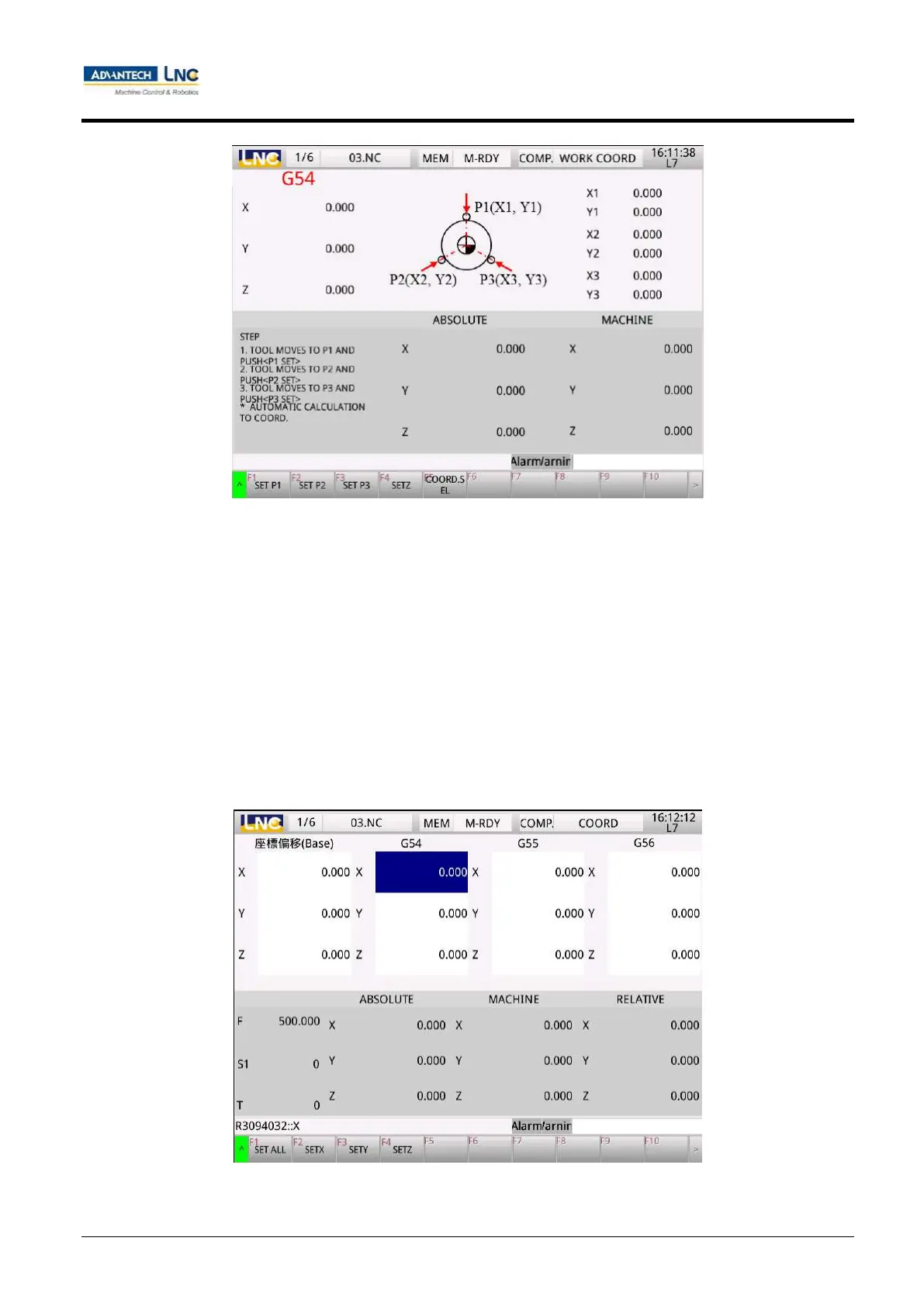

Press the Circle key to enter the circular workpiece coordinate system settings screen, press Coordinate
selection to enter the coordinate system you wish to set up, and then allow the measuring instrument to come
in contact with the workpiece in accordance with the drawing showing the center point of a circle. Set P1
should be pressed after contacting P1, Set P2 should be pressed after contacting P2, Set P3 should be
pressed after contacting P3, and then the controller will automatically derive the center of a circular workpiece
based on the positions of these three points.
3. Instruction input (Set all, set X, set Y, set Z, ...)
It is for users to set up workpiece coordinates (non-square, non-circular).
