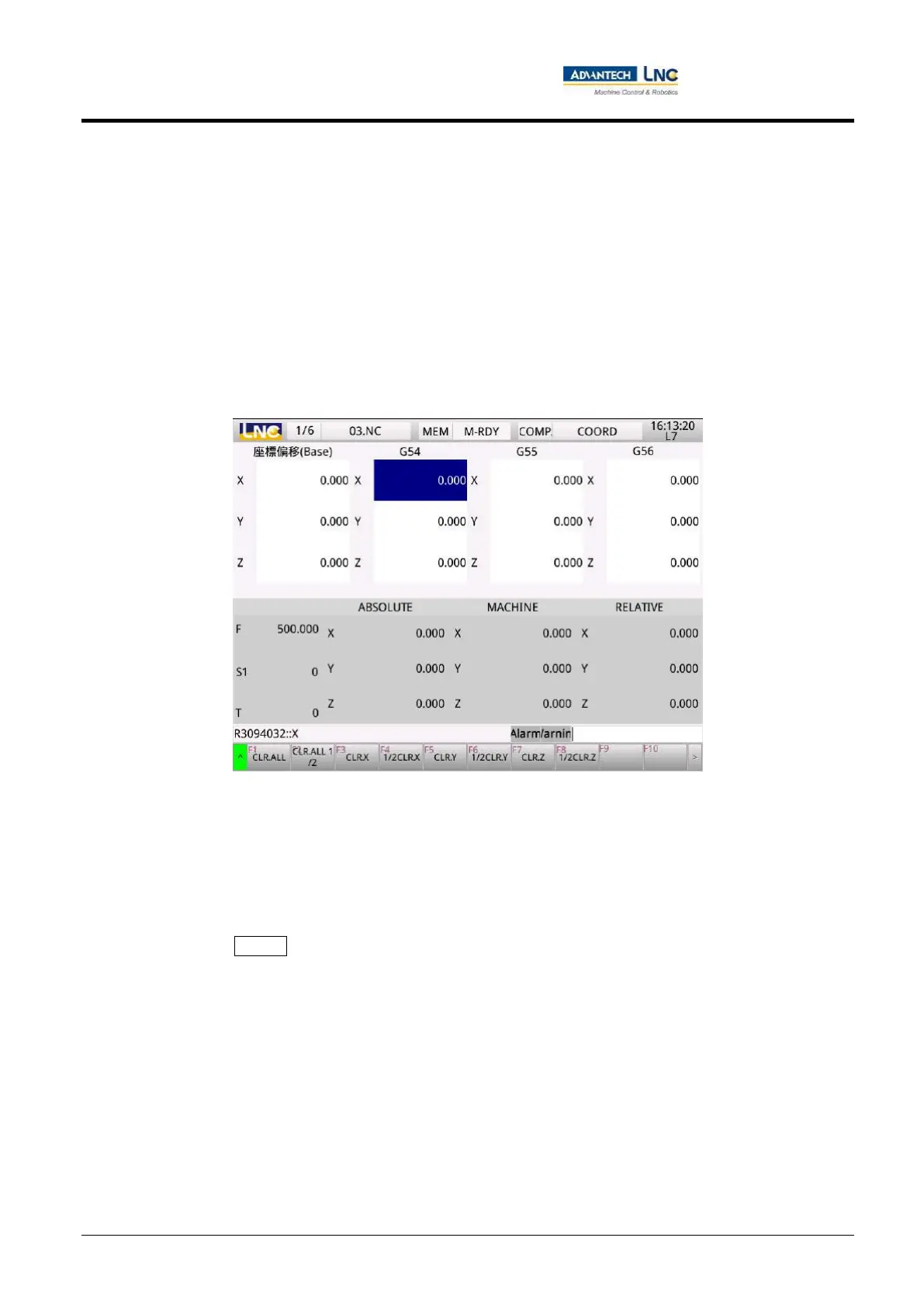

Press the 【Guided input】 key to enter the settings page of guided input for the workpiece coordinate system,
allow the measuring instrument to be in contact with the workpiece and then press 【Set X】, 【Set Y】, and 【Set
Z】 keys for the controller to set up each axis according to the current contact position of the measuring
instrument. Users can also press the 【Set all】 key to set the machine coordinate values of each axis on the
current machine as the work coordinate system at current cursor position.
4. Clear relative
It is for users to clear the relative coordinates of all axial directions or one single axial direction into 1/2 the
numerical value or 0, when necessary.
5. Coordinate selection
It is for users to quickly search for a coordinate system. Press the 【Coordinate selection】 key to enter the
screen for searching workpiece coordinate systems, enter the number of the coordinate system into the dialog
box and press Confirm for the cursor to move to that coordinate system. It can facilitate search convenience,
but the sub-coordinate system can only be used by G54.
