Milling Machine Series
CNC operations
143
Advantech-LNC Technology Co., Ltd.

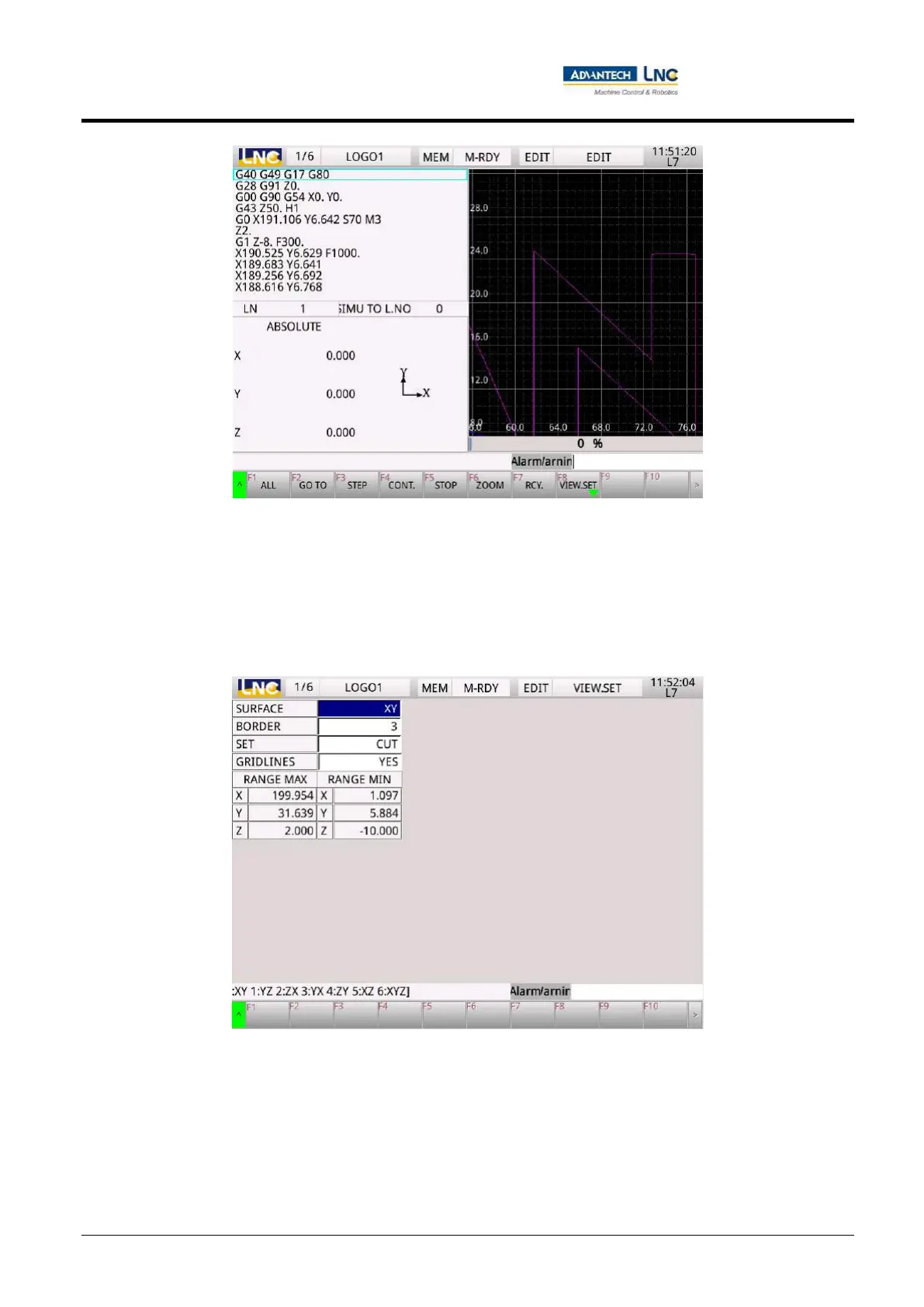

The 【Plot settings】 key on the human machine page can be pressed to enter the screen as shown in the
following figure.
If the coordinate viewing angle used for displaying the path screen is to be changed, arrow keys on the MDI
panel can be used to move the cursor to the "Drawing plane" field (as shown in the figure above); a value should
be entered in the input area before pressing the <Input> key to complete the setting. (0: XY, 1: YZ, 2: ZX, 3: YX, 4:
ZY, 5: XZ, 6: XYZ)
