Advantech LNC M5800 Series User Manual

Milling Machine Series
CNC operations
173
Advantech-LNC Technology Co., Ltd.

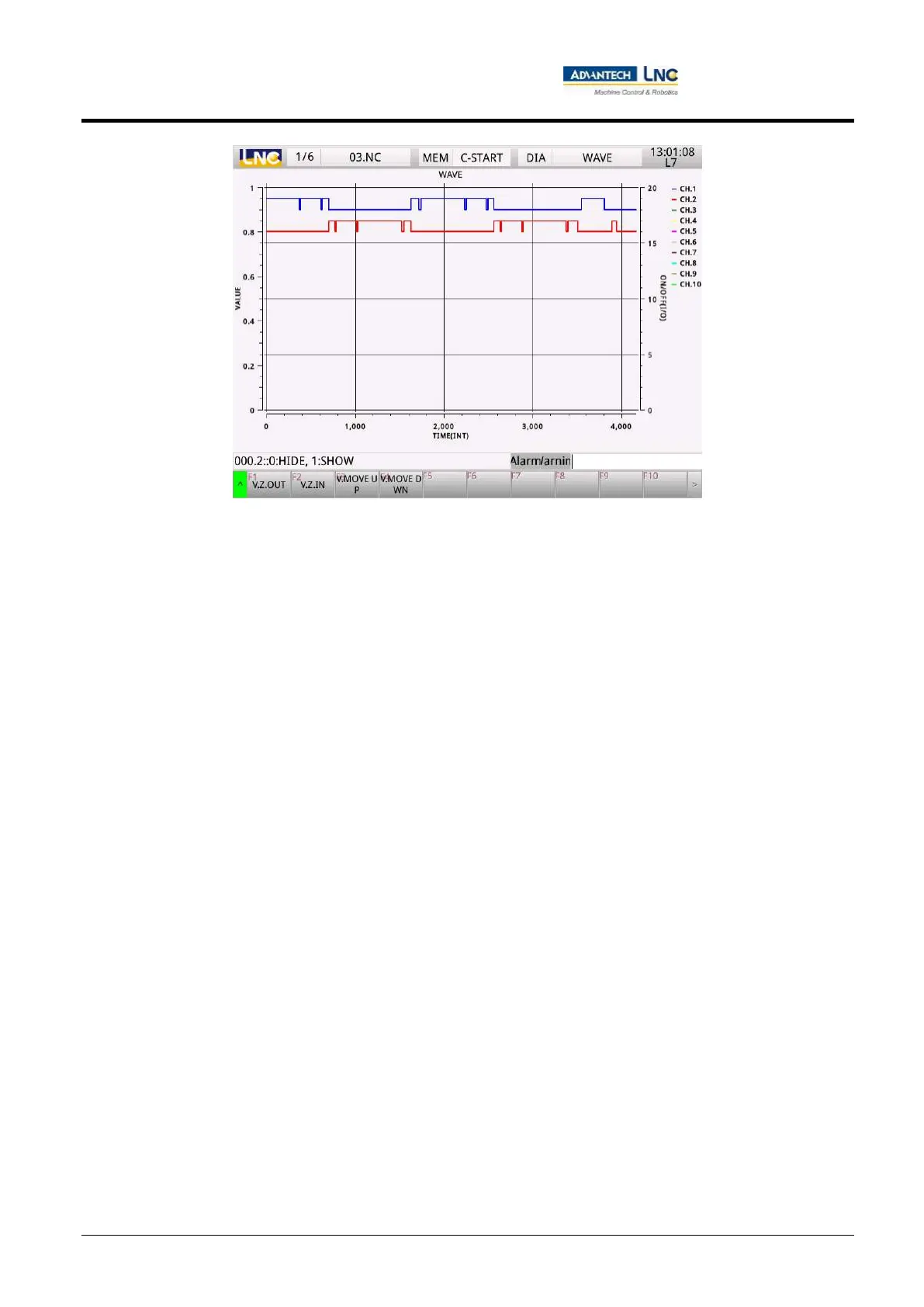

 Press the 【Zoom-in Vertically】 key to magnify the display of waveform along the vertical direction; press the
【Zoom-out Vertically】 key to shrink the display of waveform along the vertical direction.
 Press the 【Move up vertically】 key to move the entire waveform upward.
 Press the 【Move down vertically】 key to move the entire waveform downward.
 To undo the zooming action, press the 【 ^ 】 key on the page followed by pressing the 【Undo zoom】 key
on the human machine page.
