Advantech LNC M5800 Series User Manual

Milling Machine Series
Control panel operations
180
Advantech-LNC Technology Co., Ltd.
of every axis coordinate.
If the servo mechanism is used in coordination with an absolute encoder, reference point return can be completed
by directly returning to the reference point position without touching the DOG.

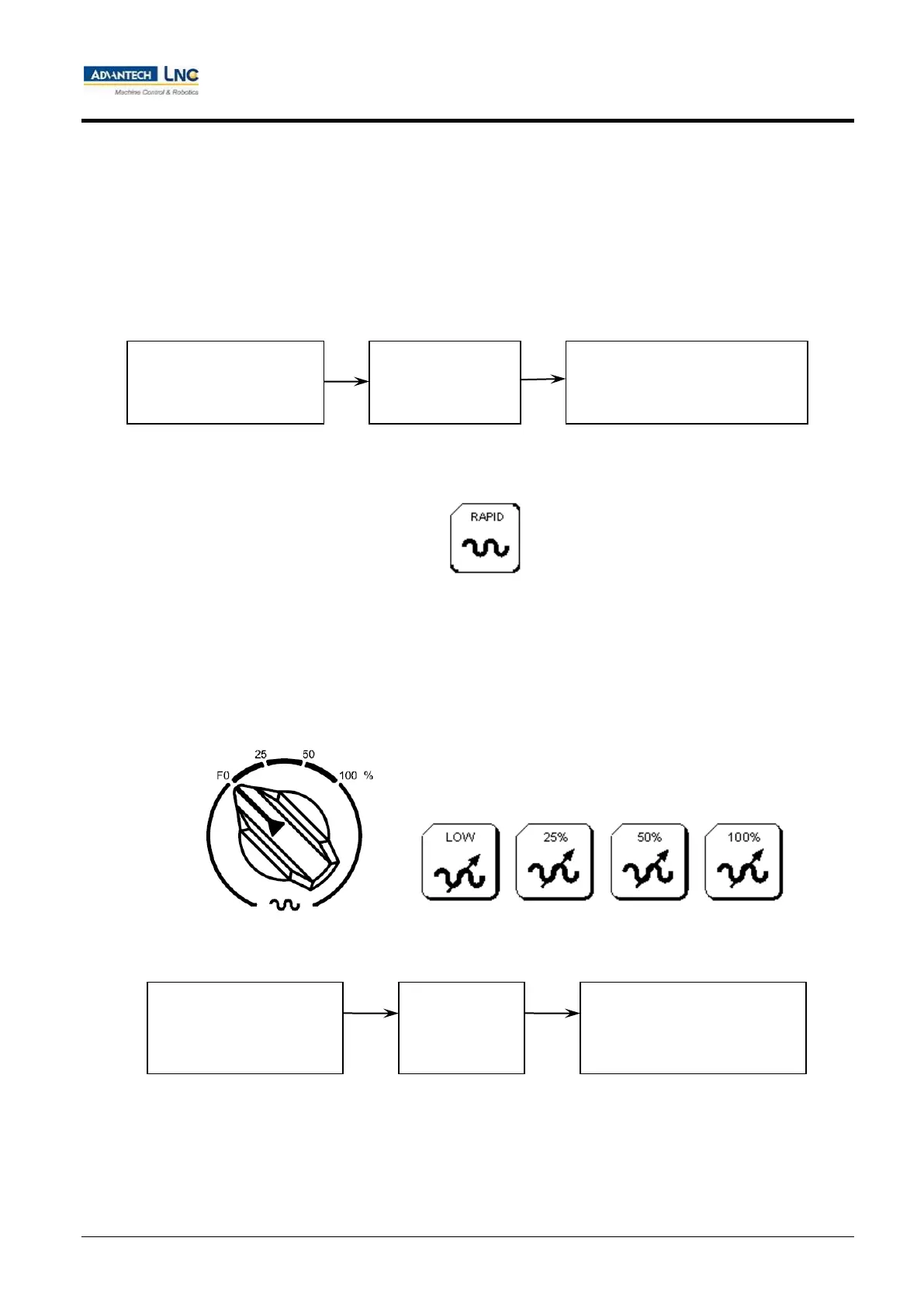

(5). Continuous jog mode (JOG)
Under this mode, operators can select the direction for axial movement, and the movement speed will be
determined by the feed rate.
(6). Rapid feeding (RAPID)
Under continuous jog (JOG) mode, operators can use axial movement direction keys to move the axis while hold the
RAPID key to start rapid feeding, and the movement speed will be determined by the rapid feeding % button. Rapid
feeding is valid under three conditions: execution of G00 in the program, manual rapid feeding mode (RAPID), and
velocity of the front section during reference point return. There are 4 stages for the feeding rate percentage knob,
including F0 (LOW), 25％, 50％, and 100％. The speed of F0 is set by user parameter number 8051.
Knob style Key style
(7). Incremental jog mode (INC JOG)
Under this mode, operators can select the direction for axial movement, and the amount of each movement is set
via user parameter numbers 8130 to 8134.
Continuous jog (JOG)
mode
Adjustment via
feed rate knob
Moving along each axial
direction such as +X, +Y, -Z, -4
Under continuous jog
(JOG) mode
Sets the feed
rate
percentage
Hold the RAPID button and move
along the direction of each axis
such as +X, +Y, -Z, -4
